INSTALLATION
CONNECT THE POWER CABLE
Note: Turn off switches and pull out all fuses before connecting electrically
CONNECT THE GROUND CABLE
The charging system uses a common grounding method, using a ground cable to connect the ground copper
row of the charging cabinet with the main ground row.
CONNECT THE AC INPUT
1. The AC input cable is routed from the user’s power distribution switch and is connected to the output
terminal of the user switch when power is ready to be turned on. The user distribution switch should
have overcurrent, short circuit, lightning strike and other protective devices. The capacity of the power
distribution switch is recommended as not less than 1.5 times the actual load capacity.
2. The L1-phase, L2-phase, L3-phase and N-zero cables of the AC input cable should use brown, black, grey
and blue cables (standard reference below). If the cable has only one colour, the line number identication
is pasted or marked with different colour insulation at both ends of the cable.
3. Cables should not have severed heads, broken heads or scratches.
Colour Brown Black Grey Blue Yellow & Green
Phase order A(L1) B(L2) C(L3) N PE
The AC input can be introduced from the bottom of the cabinet through a trench and connected sequentially to
the corresponding terminal.

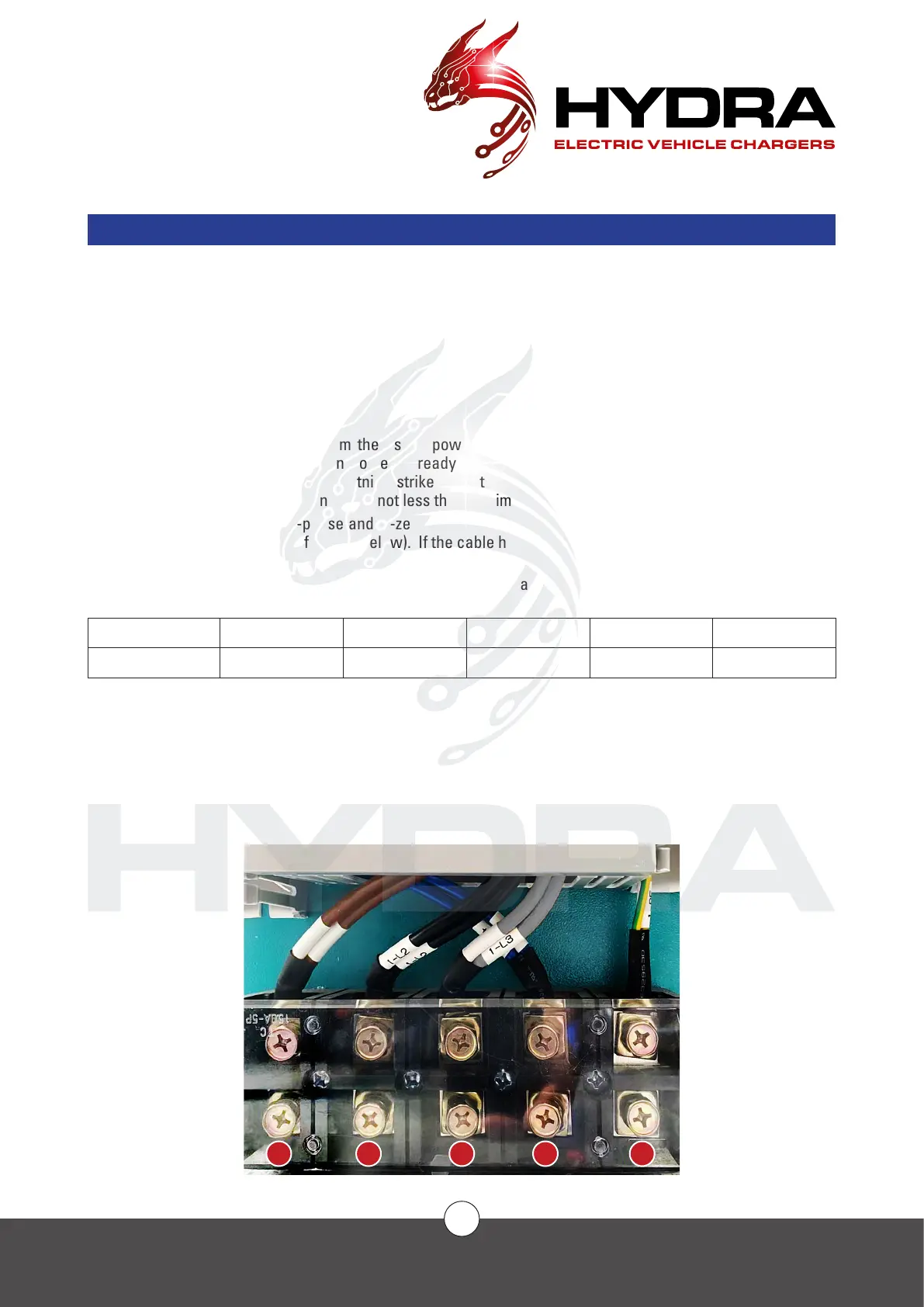

PHASE LINE / ZERO STUD / IDENTIFICATION CHART
P
N
L
NL3
PE
L2L1
