HydraMaster Boxxer 421 - Blower Heat Exchanger Assembly

Page 11-15: Machine Assemblies and Parts List
Boxxer 421

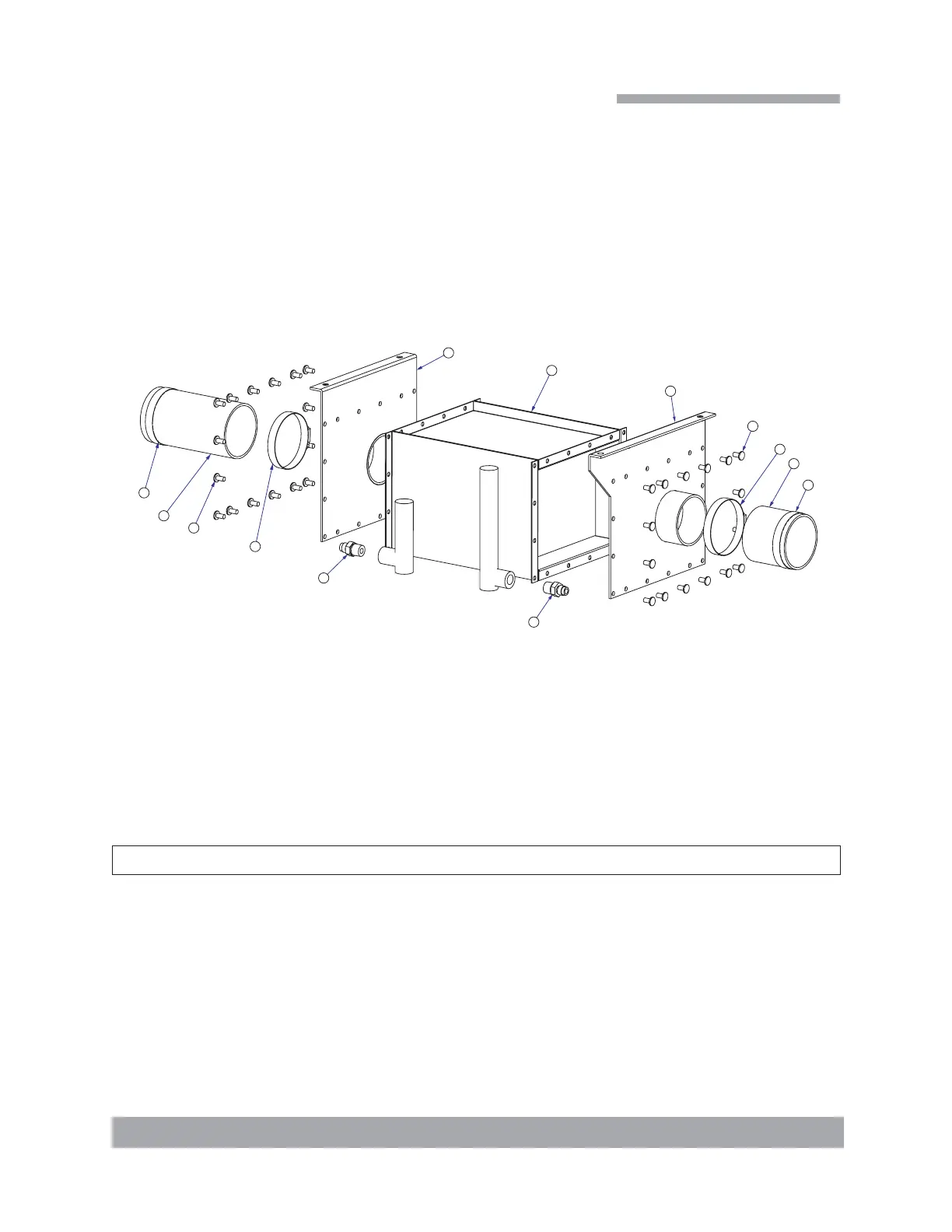

Figure 11-14 Blower Heat Exchanger Assembly
C-4944 Rev A
1 000-038-053 Core, Blower Heat Exchanger - Boxxer 421 1
2 000-100-116 Plate, End - Weldment - Blower Heat Exchanger 1
3 000-100-117 Panel, End - Weldment - Blower Heat Exchanger 1
4 000-068-398 Hose, 3" x 3" Lg. Blue Silicon 1
5 000-068-398 Hose, 3" x 6" Lg. Blue Silicon 1
6 000-052-528 Nipple, 3/8" M JIC x 3/8" NPT 2
7 000-033-012 Clamp, Size #44 Hose 4
8 000-140-021 Rivet, 1/4" Blind x 0.50" Lg. 32
Item Part Number Description Qty
Blower Heat ExchangerAssembly Parts List
8
8
7
7
7
5
6
6
2
1
3
7
4
