HydraMaster Boxxer 421 - Diverter Valve Actuator Assembly

HydraMaster Corporation
Page 11-28: Machine Assemblies and Parts List
Boxxer 421

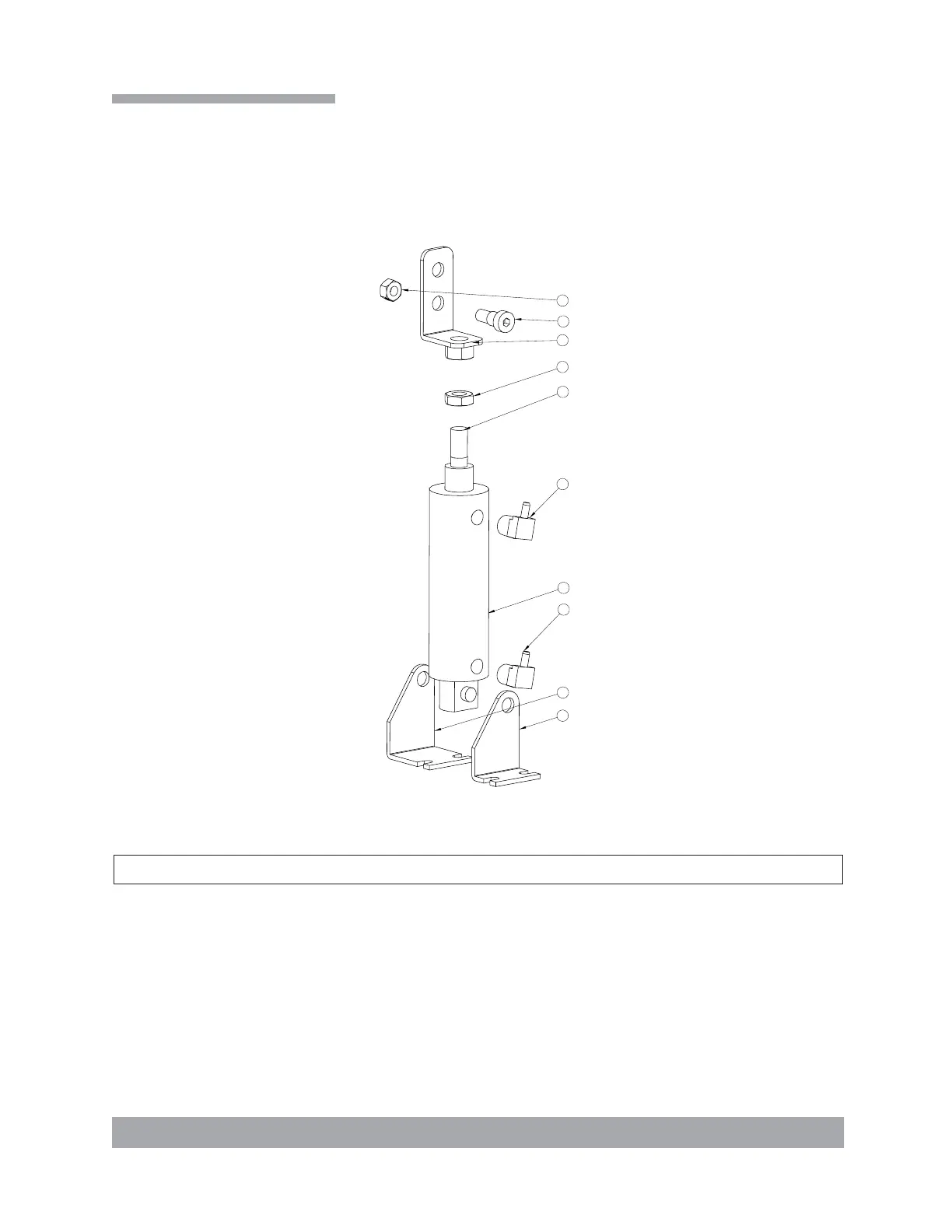

Figure 11-22 Diverter Valve Actuator Assembly
C-4880 Rev B
Item Part Number Description Qty
Diverter Valve Actuator Assembly Parts List
2
3
4
1
4
6
8
5
1
7
1 000-169-169 Valve, Air Cylinder 1
2 000-015-630 Bracket, Air Cylinder Extension 1
3 000-094-092 Nut, 7/16"-20UNF Hex Jam 1
4 000-052-550 Elbow, 1/8" NPT x 3/16" Barb 2
5 000-015-750 Bracket, Air Cylinder Mount - Inner 1
6 000-015-748 Bracket, Air Cylinder Mount - Outer 1
7 000-143-573 Screw, 5/16-18 Shoulder, 3/8" Dia x 1/2" 1
8 000-094-081 Nut, 5/16"-18UNC Hex 2-Way Locking 1
