hydro-s A7/32 - Wiring Diagram

-14-
Attention: The above codes can also be used to represent low voltage faults, because low
voltage switches and temperature sensors are connected in series, this situation may be
caused by refrigerant leakage. It is necessary to find professional maintenance personnel.

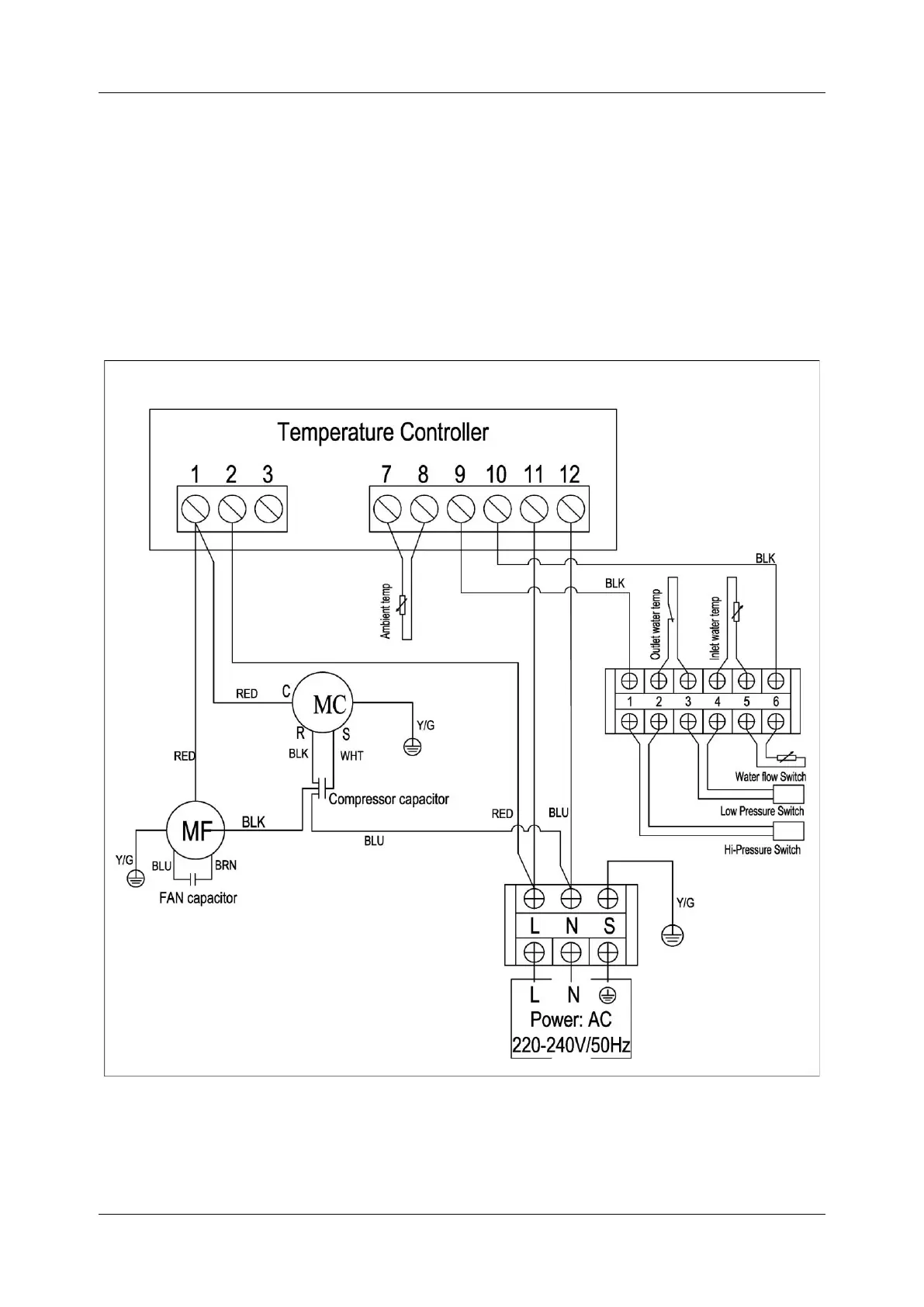

WIRING DIAGRAM
Please refer to the wiring diagram on the electric box.
A5/32, A7/32
