hydro-s A7/32 - Exploded View

-7-

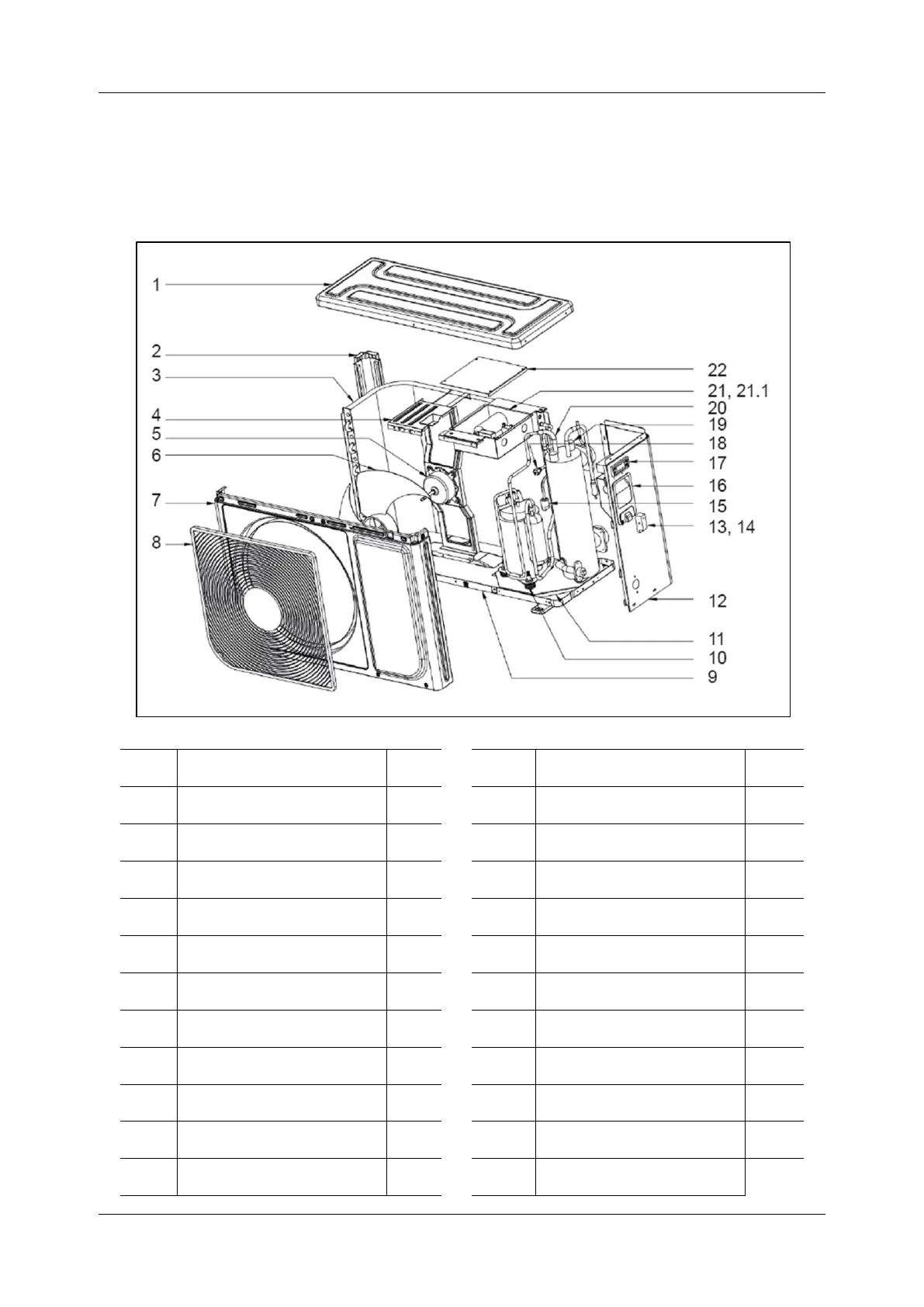

EXPLODED VIEW
Model: A5/32, A7/32
No.
Name
Qty
No.
Name
Qty
1
Top cover
1
13
Wires clip
1
2
Column
1
14
Wires clip
1
3
Air side heat-exchanger
1
15
Low pressure switch
1
4
Motor bracket
1
16
Handle
1
5
Motor
1
17
Controller
1
6
Axial fan
1
18
Needle valve
1
7
Front panel
1
19
Water flow switch
1
8
Grille
1
20
Titanium heat-exchanger
1
9
Chassis
1
21
E-box ass’y
1
10
Compressor
1
21.1
Capacitor
1
11
Fixing plate
1
22
Cover, E-box
1
