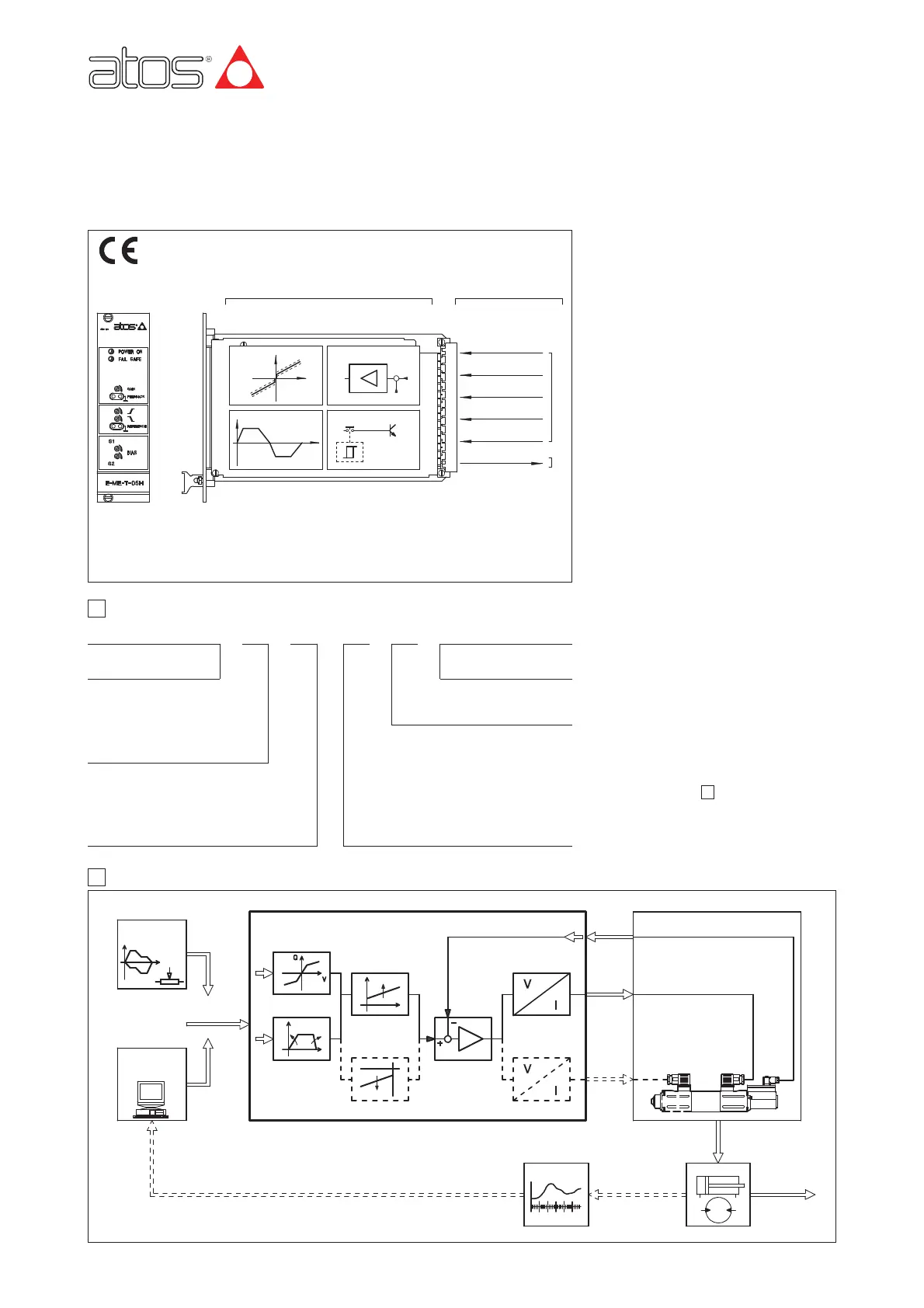

Hydro atos E-BM-AC-05F - Page 14

REFERENCE
RAMPS
LINEARIZATION (1)
DEAD BAND S1
DEAD BAND S2
SPOOL POSITION
CONTROL
SPOOL FEEDBACK
CURRENT
AMPLIFIER
CURRENT
AMPLIFIER
ACTUATOR FEEDBACK
TRANSDUCER
COIL S1
COIL S2
SPOOL FEEDBACK
DRIVING CURRENT
FLOW
PRESSURE
POSITION
SPEED
ACCELERATION
FORCE
PROPORTIONAL VALVE
(*) = dotted line is for E-ME-T-05H (1) = only for set codes TH* or TK*
ELECTRONIC DRIVER E-ME-T-01H (*)
ACTUATORS
DRIVING
CURRENT
USER FUNCTIONS AND CONTROL OPTIONS USER INTERFACE
SUPPLY 24V
DC
REFERENCE
SIGNALS
ENABLE SIGNALS
SPOOL FEEDBACK
SPOOL FEEDBACK
SOLENOID SUPPLY
OUTPUTS INPUTS
DEAD BAND ADJUST
SPOOL POSITION CONTROL
RAMP GENERATOR OUTPUT PROTECTIONS
FEEDBACK
FAULT SENSE
Electronic drivers type E-ME-T
analog, Eurocard format, for proportional valves with transducer
E-ME-T drivers control the current to
the solenoid of Atos proportional valves
with position transducer, regulating the
spool position or the flow according to
the electronic reference signal, adju-
sted by transducer’s feedback.
Features:
• bias regulation
• scale and dissymmetrical ramps
regulation
• voltage (standard) or current
(/I option) reference signal
• voltage (standard) or current
(/C option) feedback signal
• test point for reference and feedback
control on front panel
• factory pre-setted
• Eurocard format (DIN 41494 - plug-in
unit)
• electronic filters on input and output
lines
• CE marking granting the conformity
to the EMC Directive (Electro ma gne -
tic compatibility)
• both sides of the card with shielded
cover with E faston connector
Applications:
Position or flow open or closed-loop
regulation systems, according to the
block diagram .
2
E-ME
E-ME = electronic driver
in Eurocard format
T = driver for -T proportional valve with
transducer
01H = for single solenoid proportional valves
05H = for double solenoid proportional valves
Options:
- = standard with rising and falling ramps
/C = suitable to receive current feedback signals
4 ÷ 20 mA (available only for ex-proof and
armoured valves).
/I = suitable to receive current reference signal
4 ÷ 20 mA.
Series number
Set code (see 4.4)
T–**01H /*–
1 MODEL CODE
2 BLOCK DIAGRAM
G140
–
Table G140-15/E
www.atos.com
CLOSE LOOP
CONTROL
(AXES CARD)
EXTERNAL
GENERATOR
