SYSTEM INSTALLATION OVERVIEW
Refer to page 15-20 for detailed instructions.
CHOOSING A LOCATION
When choosing a location to install the system, select an area with enough room to remove
the membranes and easily access components and connections. Make sure there is enough
room for service to be performed on the system. Take into consideration where your electrical
power supply is located and where the nearest drain is located. Do not install system in direct
sunlight, high intensity lights or subject the system to temperature extremes (see operating
limits chart) and/or excess humidity. The Hydroid system should be secured in compliance with
state and local regulations.

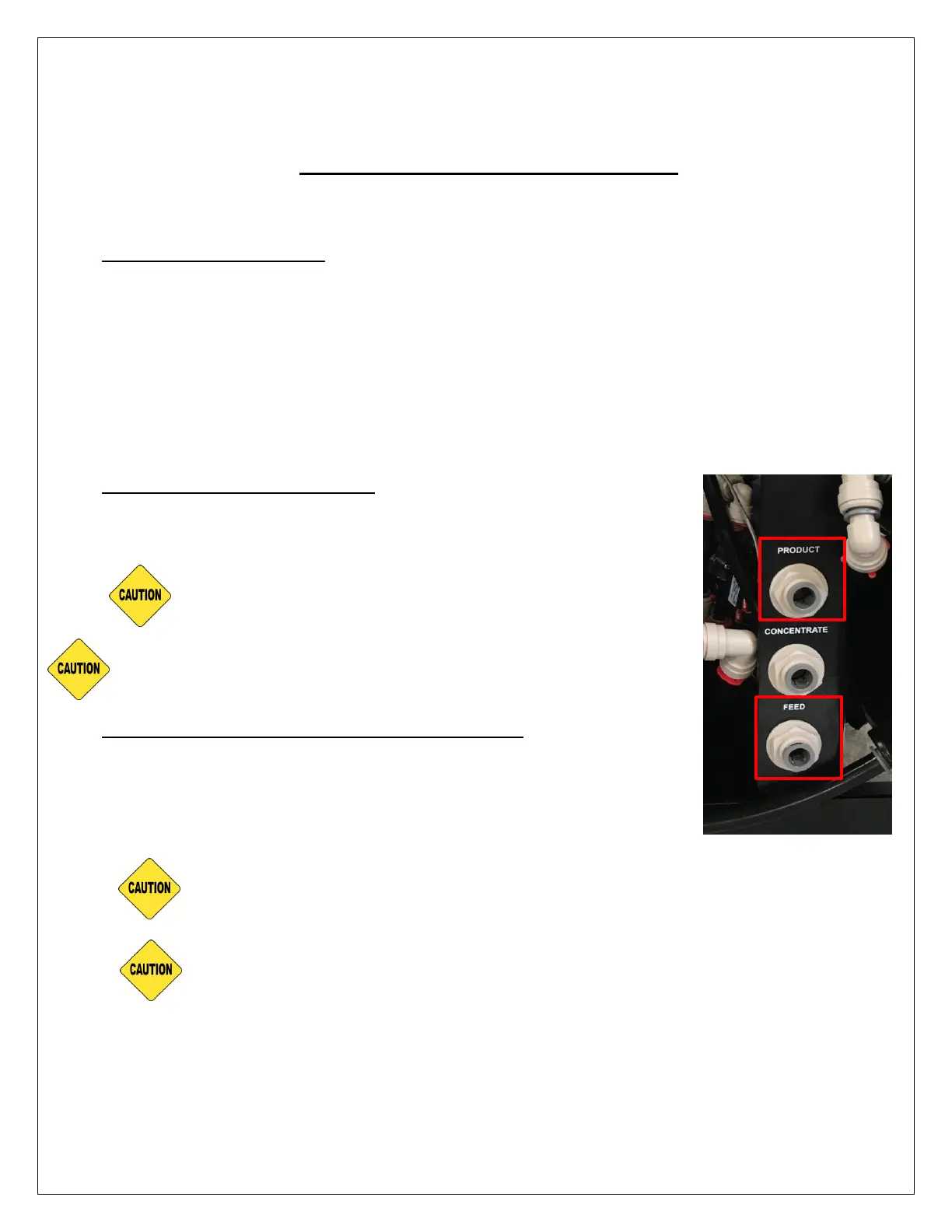

INLET 1/2" QC FITTING (FEED)
Locate the ½” QC fitting on the right side of the system labeled “FEED”.
Attach the inlet tubing to the system.
FEED LINE MUST BE AT LEAST ½” (PROVIDED).
SYSTEM REQUIRES A CONTINUOUS FLOW OF WATER
WITH A MINIMUM FEED PRESSURE OF 40 PSI, NOT TO EXCEED
85 PSI.
PRODUCT 1/2" QC FITTING (PURIFIED WATER)
Locate the 1/2” QC fitting on the right side of the system labeled
“PRODUCT”. Attach product tubing to system.
ENSURE THAT THE PRODUCT (PURIFIED WATER) CAN FLOW FREELY WITH
NO BACK PRESSURE. BACK PRESSURE CAN CAUSE IRREVERSIBLE
DAMAGE TO THE MEMBRANES.
THE PH OF THE REVERSE OSMOSIS PRODUCT WATER (PURIFIED WATER)
WILL TYPICALLY BE 1 OR 2 PH UNITS LOWER THAN THE FEEDWATER PH.
