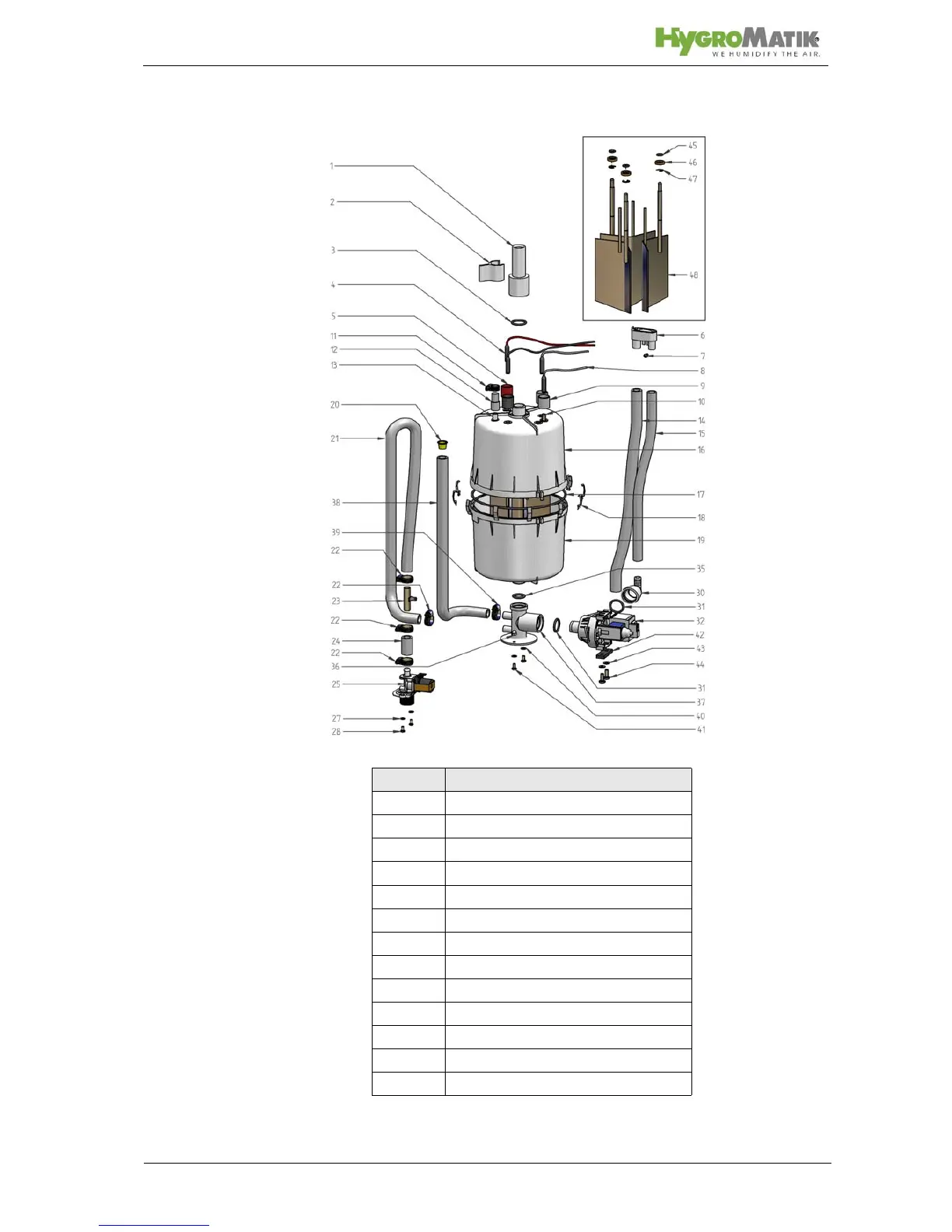

Please also see Section „Exploded View“.
Location Designation
1 adapter
6 vent pipe
10 max. water level sensor electrode
14 water drain, discharge
16 top part of steam cylinder
17 o-ring cylinder flange
18 cylinder flange and o-ring
19 lower part of cylinder
25 solenoid valve water inlet
32 blow-down pump
35 o-ring
37 cylinder base
48 electrodes
