5.2 Fan Unit (optional)
Note:
The fan unit should be positioned to avoid drafts. In gen-
eral, a minimum height of 2 m is sufficient.
Install the fan unit directly on a wall.
Warning:
• During operation and a soon afterwards the steam
nozzle is hot! If touched this can cause burns to the
skin.
• During operation the cross-flow fan rotates. Do not
touch the fan during operation.
• During operation hot steam discharges from the nozzle.
In the field of the visible steam cloud contact can cause
burns to the skin.
• During operation the cross-flow fan rotates. Do not
touch the fan during operation.
5.2.1 Fan Unit Type VG
• Install the fan unit over the steam humidifier.
• When employing multiple fan units, do not exceed a
maximum distance of 5 m from the steam humidifier.

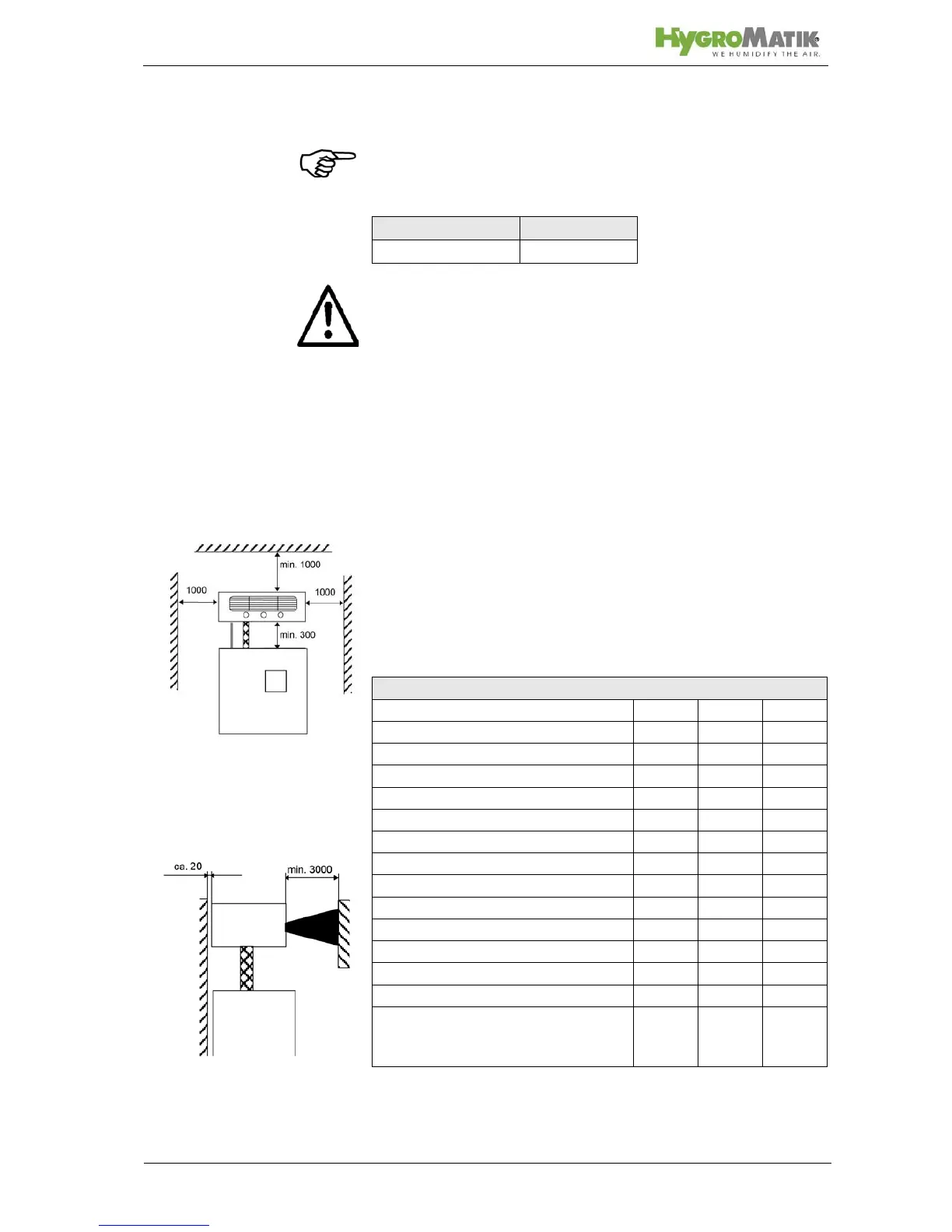

• Observe the clearances specified in the diagram below:
Fan Unit Type
for wall installation VG 08, 17, 30
Technical Specifications Fan Unit VG
Fan Unit VG08 VG17 VG30
Quantity of Steam [kg/h] 8 17 30
Steam Inlet [mmφ]25 25 40
Condensate Outlet [mmφ]12 12 12
Airflow Capacity [cbm/h] 185 185 350
Nominal Output [W] 35 35 67
Nominal voltage [V] 230 230 230
Dimensions W [mm] 441 507 550
H [mm] 171 171 171
D [mm] 180 237 277
Weight [kg] 4,5 6 7
Sound Level (1m dis-
tance to the source of
noise)
[dB(A)] 50 57 59
