Page 21
5.4 Steam Manifold

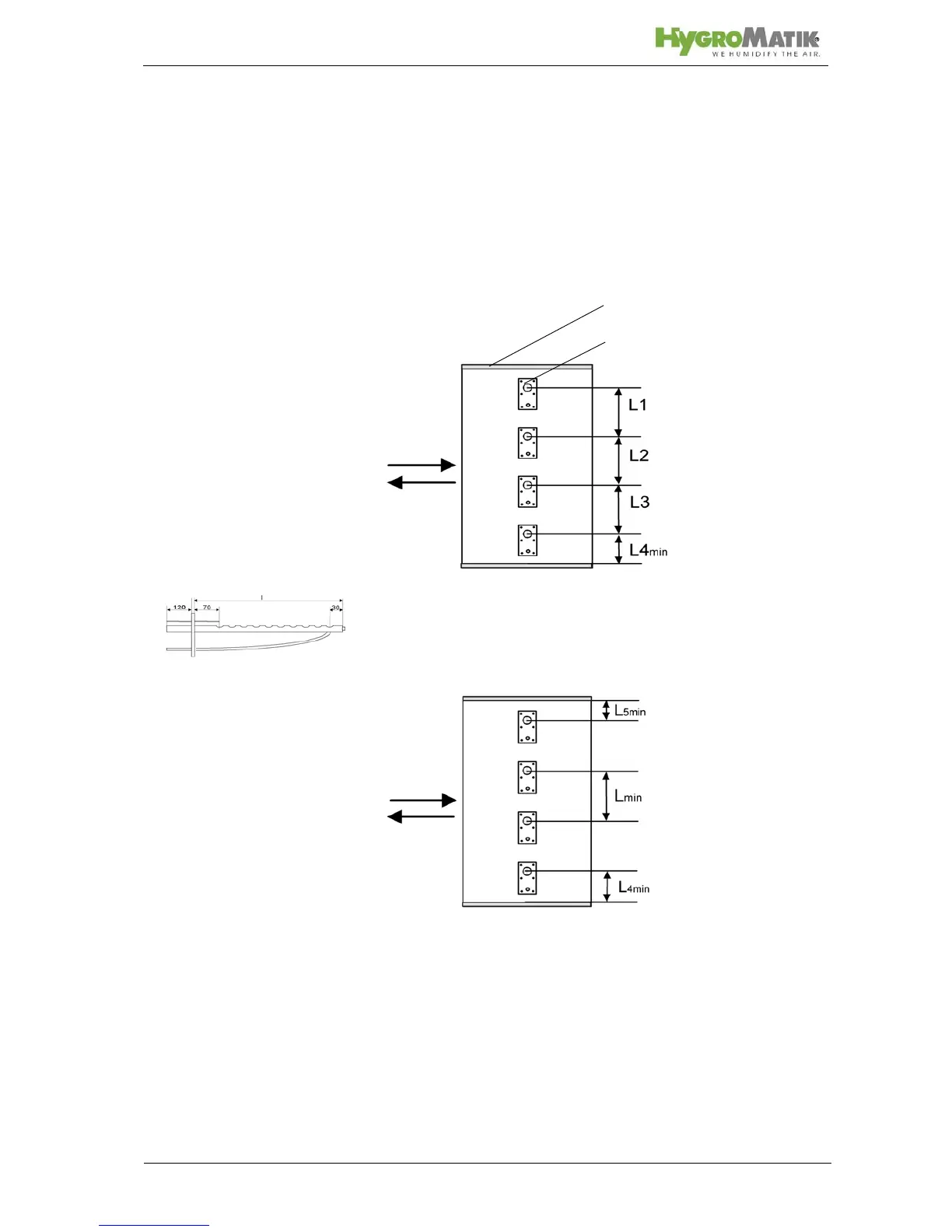

5.4.1 Notes on Installation
These notes are based on a homogeneous
Standard steam manifold installation:
An even distribution of steam manifolds ensures a uniform steam
distribution.
Please use the total hight of the duct!
Minimum distances in order to avoid condensation:
L
min = 210mm: distance „ steam manifold - next steam mani-
fold“
L4
min = 120mm: distance „lowest steam manifold - duct bot-
tom“:L5
min = 120mm: distance „highest steam manifold - duct
ceiling“Installations depending on special designs of air ducts:
