8.2 Replacing Electrodes
Note:
• If electrodes must be exchanged frequently or
• black sludge collects in the cylinder or
• there is arcing in the cylinder
this indicates, that the conductivity of the water is too high, or the
cylinder is not being drained frequently enough. In this case
please contact HygroMatik for advice.

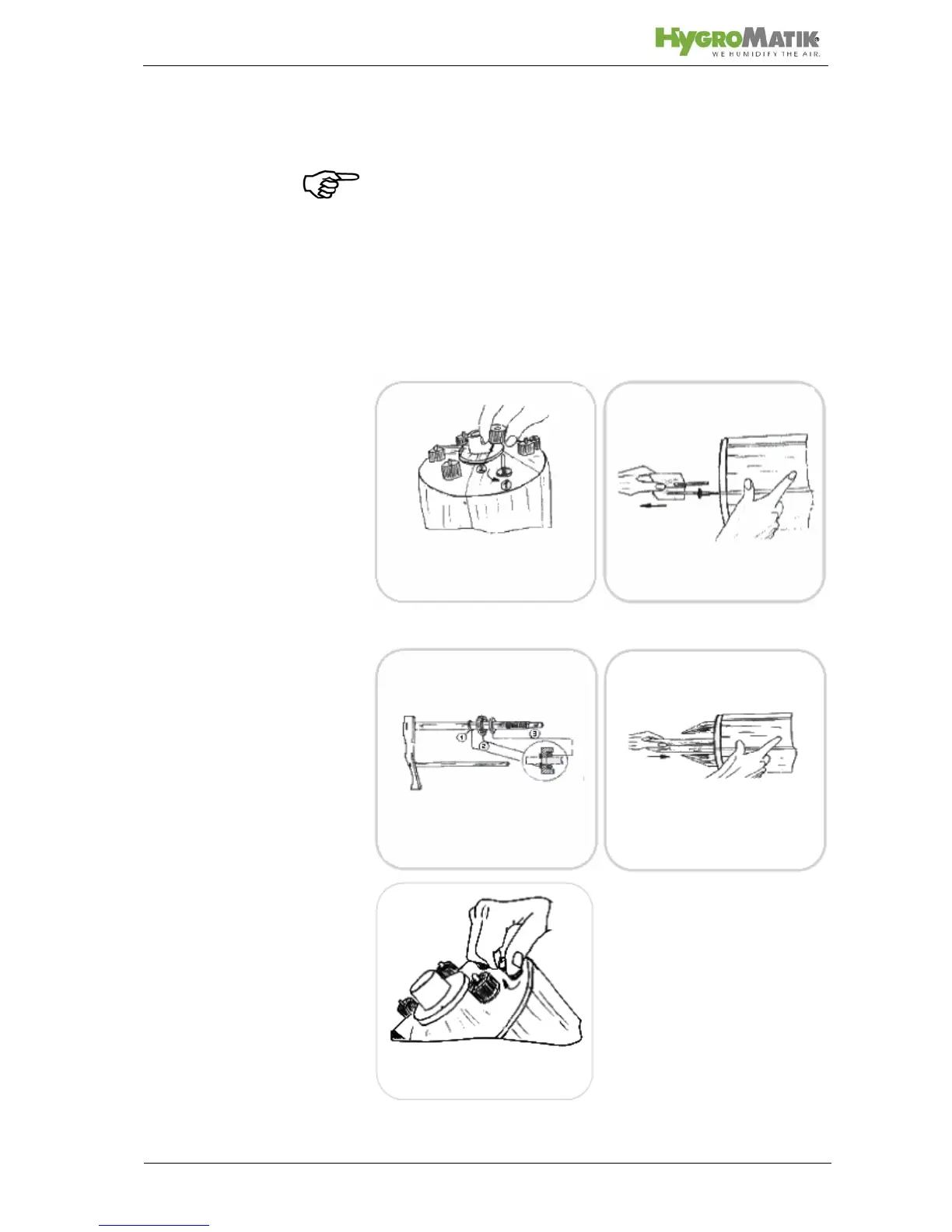

remove electrode
remove handnut
insert electrode
Mount correctly:
1=shaft seal, 2=brass ring
3=O-ring
detailed view
of new electrode
fasten handnut hand-tight
L1=black, L2=red, L3=grey,
B1=grey
