Page 16

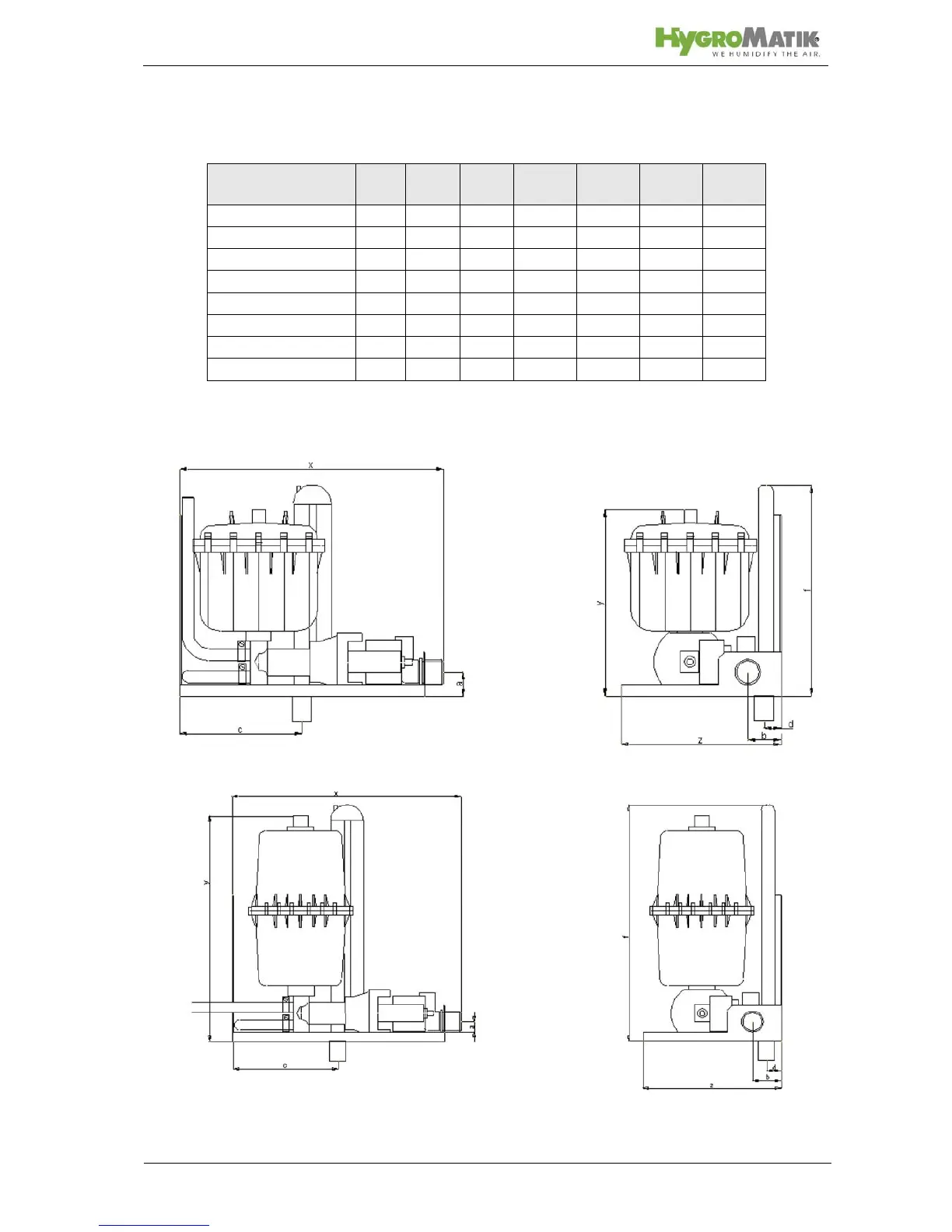

5.1.2 Equipment Dimensions CompactLine KIT
Dimensions DBE 17-45
Dimension [mm] C01
KIT
C02
KIT
C06
KIT
C10
KIT
C17
KIT
C30
KIT
C45
KIT
x 270 270 270 270 328 328 330
y 310 287 365 413 575 575 615
z 175 175 175 175 254 254 316
a 27272727474749
b 35353535555530
c 128 128 128 128 307 307 307
d 20202020232323
f 400 400 400 400 620 620 670
