Page 30

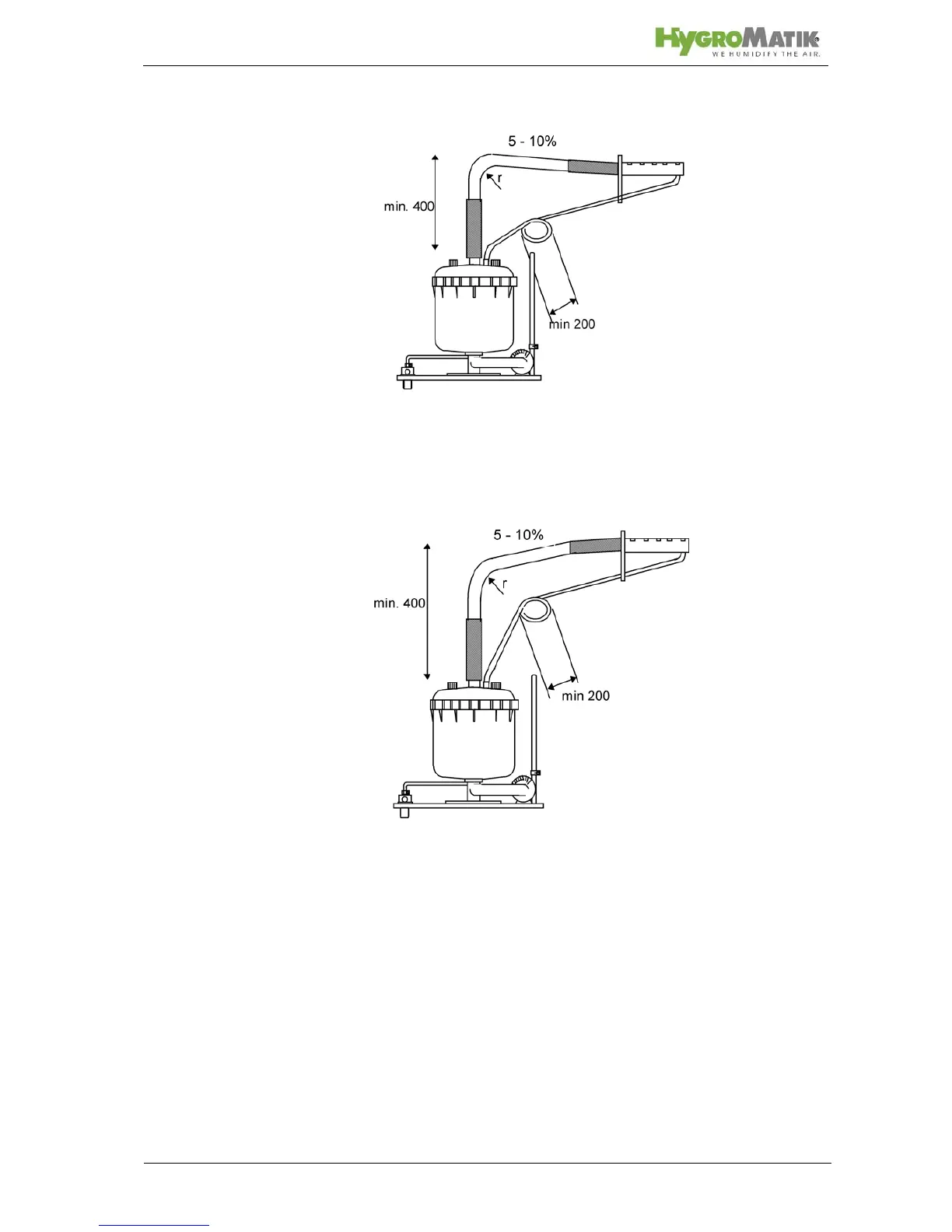

Steam hose with falling slope
Steam hose with rising slope
Steam manifold is positioned below the steam humidifier.
» Lay steam hose at a height of at least 400 mm and then
connect to the steam manifold with a constant fall.
» Lay condensate hose with a loop of 200 mm diameter
to the drain.
