Page 44
Reassembly
» Replace the flange o-ring (13) with original HygroMa-
tik solvent-free, moistened o-ring.
Note: When joining the cylinder the upper and lower parts must
have a firm fit.

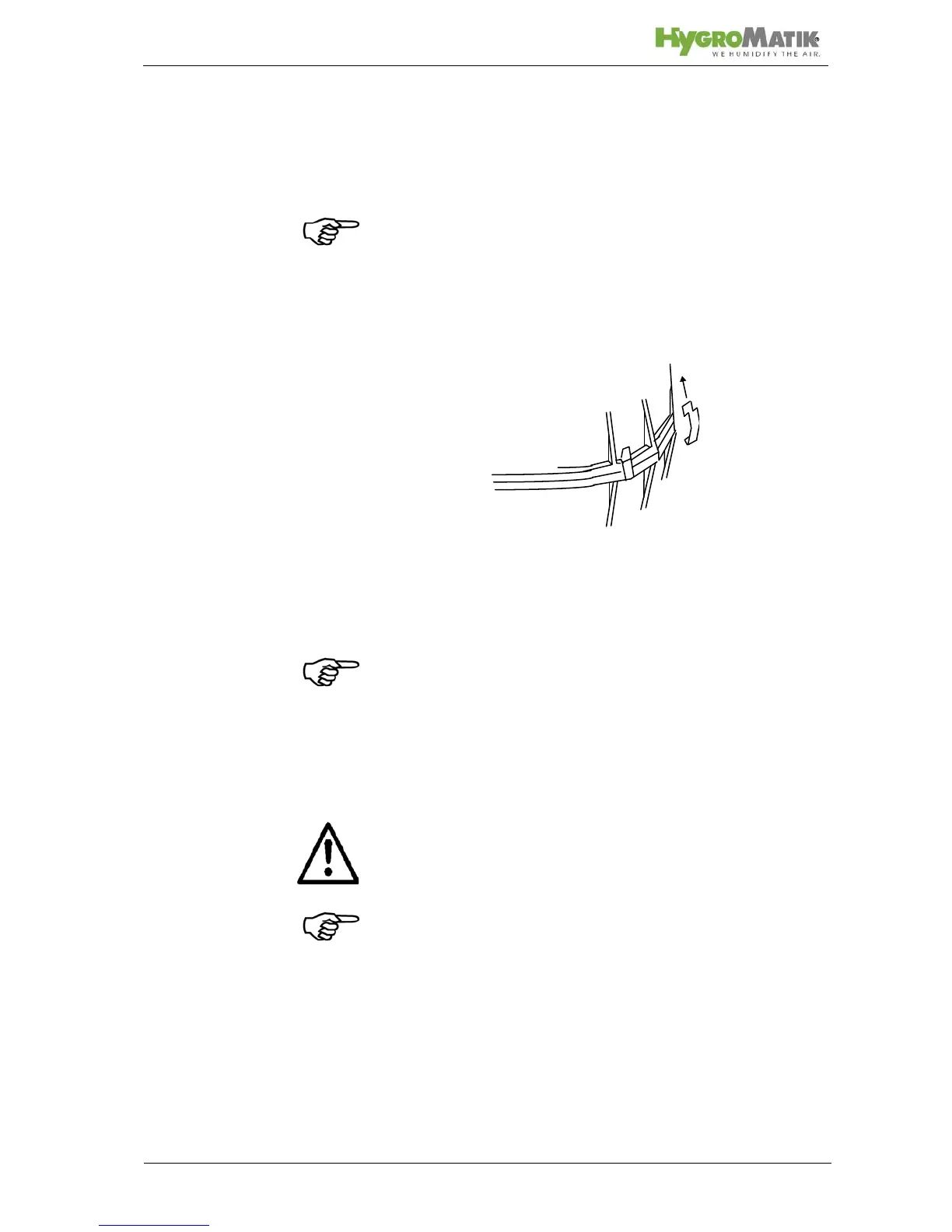

» Connect upper (16) and lower parts (19) with clamps
(18).
» Remove o-ring (35) from the lower part of the cylinder.
» Insert a new solvent-free, moistened HygroMatik o-ring
(35) into the cylinder base.
Note: The types C02KIT and C06KIT are supplied with a steam
hose adapter (1). Exchange o-ring if maintenance steam cylin-
der.
» Refit cylinder firmly into cylinder base (37).
» Connect plug (9) to level sensor.
» Connect plugs (10) to electrodes.
Attention: Check the electrode plugs on the electrodes for firm
seating.
Note: Connect the electrode plugs with the matching electrodes.
Pay attention to the coloured hand nuts (9)!
» Push in safety fuse.
Switch on the unit and operate for 15 to 30 minutes. Check for
any leaks.
