Page 29 of 36 Pages
Tubing Circuits

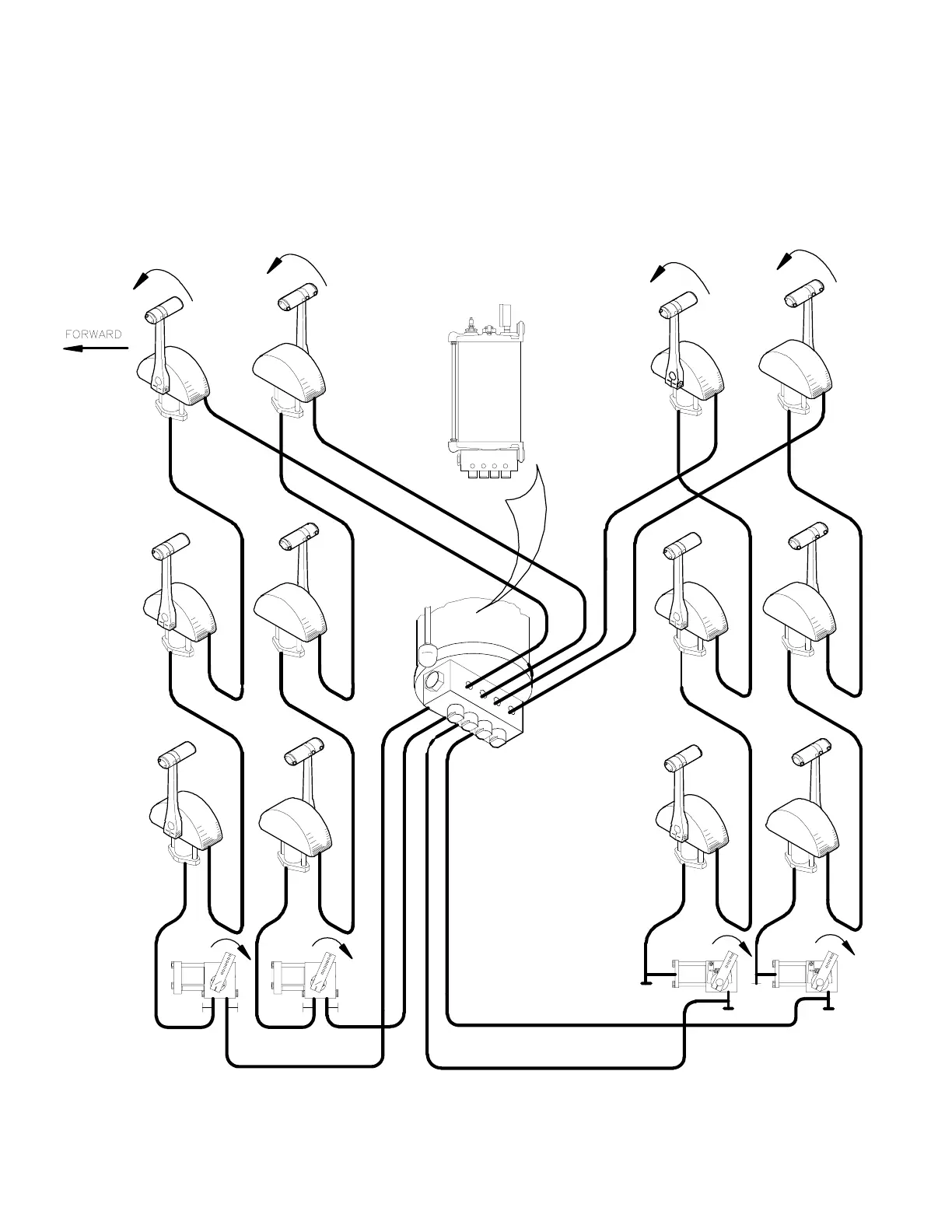

Plan II - Twin Engine, Two Station
Throttle plumbing shown in diagram advances throttle in a
clockwise direction. For a counter-clockwise throttle
advance see supplemental diagram Plan II-S, and
replumb throttle citcuits accordingly.
28
30
Table of Contents
Table of Contents
3
Teleflex Morse Engine Control System
4
Why It Works
4
Preparation for Installation
4
Component Installation
4
Sender Installation
4
Throttle Slave Installation
6
Clutch Slave Installation
8
Tubing Installation and Connection
10
Rules for Routing Tubing
10
Install Tubing between Senders and Slaves
11
Filling and Bleeding System
11
Filling the System
11
Bleeding the System at Slave
11
Bleeding the System at Senders
12
System Fluid
12
Making the System Operational
12
Synchronizing the Controls
12
Connecting Engine Controls
12
Operation
12
Throttle Senders
12
Clutch Senders
13
Maintenance
13
System Parts List (Nylon)
16
System Parts List (Copper)
17
Templates
25
Cdf-04 Mounting Plate
27
Plan I-Twin Engine, One Station
28
Plan II-Twin Engine, Two Station
29
Plan III-Twin Engine, Three Station
30
Plan IV-Twin Engine, Four Station
31
Circuits
31
Plan III-S
33
Plan IV-S
33
Troubleshooting
