Service Manual
DESCRIPTION & SPECIFICATIONS
SPECIFICATIONS
Power Supply
Rated Open Circuit Voltage (OCV) (U
0
) .............. 300VDC
Rated Output Current (I
2
) .................................... 20-50 amps
Rated Output Voltage (U
2
) .................................. 120VDC
Duty Cycle (X) @ 40°C ....................................... 50% (I
2
=50A, U
2
=120V)
100% (I
2
=44A, U
2
=97V) See data tag on power
supply for more information on duty cycle
Ambient temperature/duty cycle.......................... Power supplies will operate between +14° and
104° F (-10° and +40° C). Power supplies
operated in an ambient temperature above
86° F (30° C) may show some decrease in
duty cycle.
Apparent Input Power (S
1
) .................................. 10.4kVA (U
1
I
1
)
Input Voltage (U
1
)/Input Current (I
1
)
@ 6 kw Output .................................................... 208V/50A; 240V/43A; 480V/25A - 1φ, 60 Hz
208V/29A; 240V/25A; 480V/13A - 3φ, 60 Hz
200V/52A; 230V/45A; 400V/30A - 1φ, 50/60 Hz
200V/30A; 230V/26A; 400V/16A - 3φ, 50/60 Hz
400V (CE)/16A - 3φ, 50/60 Hz
600V/11A - 3φ, 60 Hz
Dimensions and Weight:
Depth................................................................... 23.1" (590 mm)
Width ................................................................... 10.4" (260 mm) without wheels
15.25" (390 mm) with wheels
Height .................................................................. 19.6" (500 mm) without wheels
23.7" (620 mm) with wheels
27.7" (700 mm) for 600V power supply

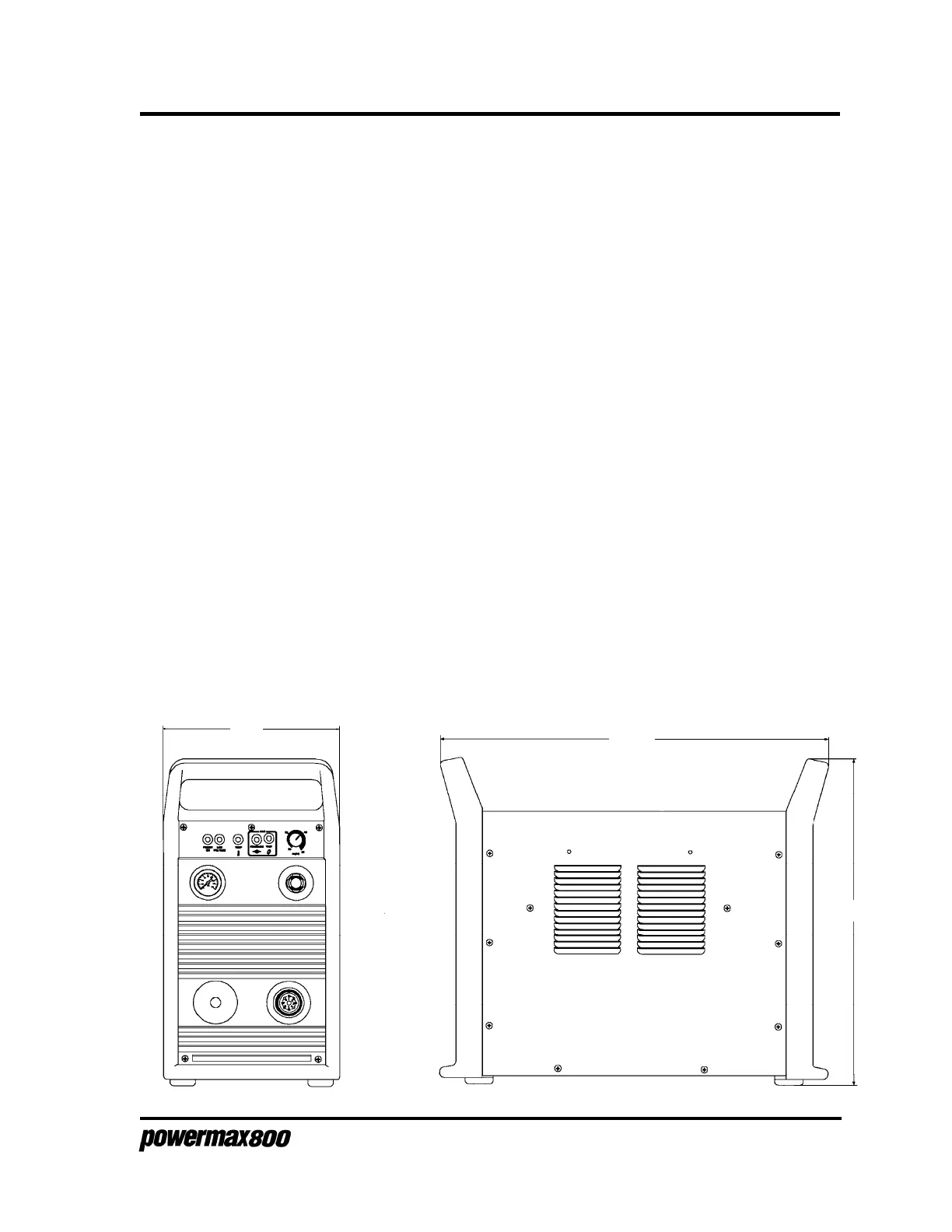

Figure 2-2 Powermax800 Power Supply with Dimensions
10.4"
23.1"
19.6"
