Hypertherm Powermax 85 Field Service Bulletin

DSP boarD rePlacement
4 Field Service Bulletin

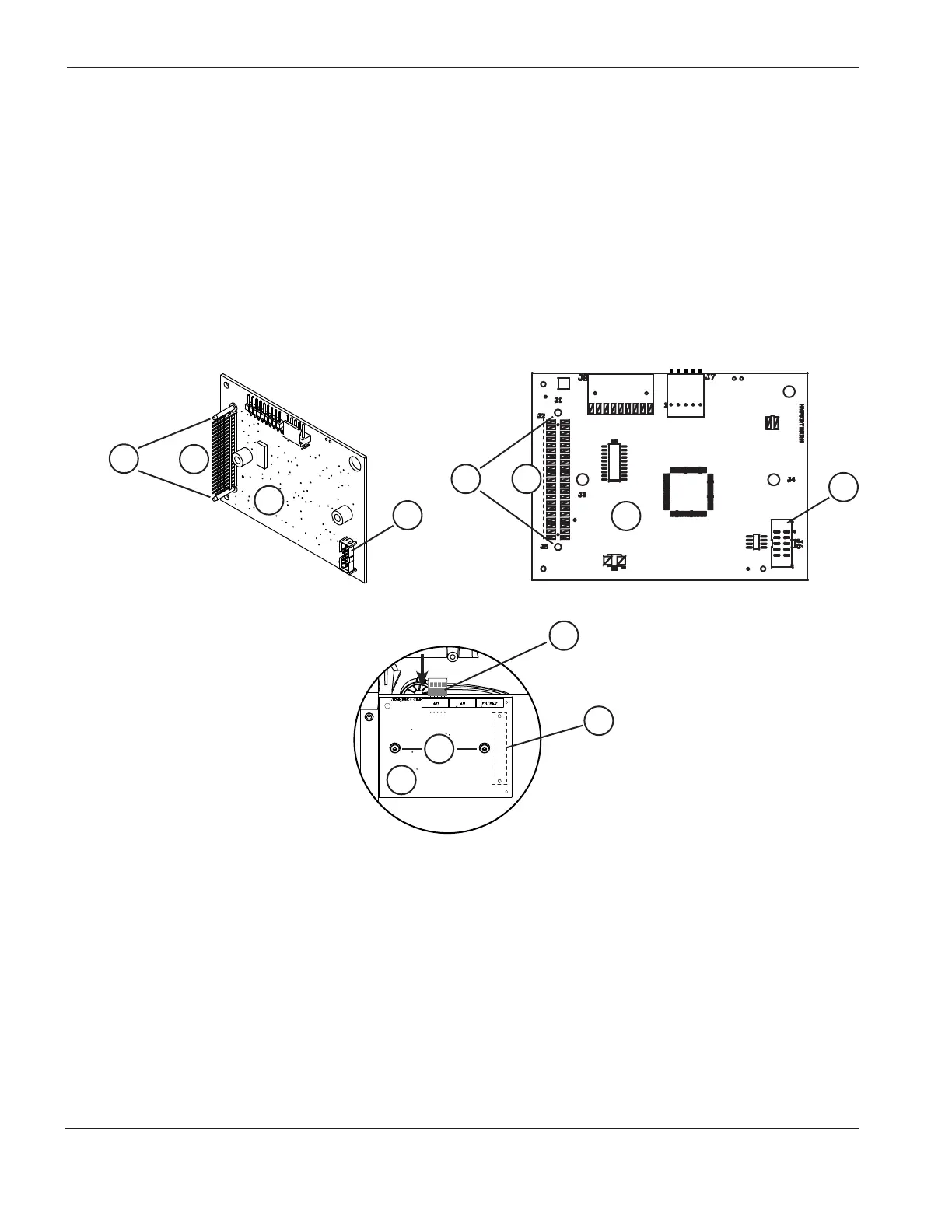

Install the new DSP board
1. Connect the ribbon cable to the ribbon cable connector (6) on the back of the new DSP board (3).
2. Align the two alignment pins (7) with the corresponding holes on the power board.
3. Carefully push the DSP board straight onto the power board. Do not bend the pins (4).
4. Use a #2 Phillips screwdriver to secure the DSP board to the power board using the 2 screws (2).
5. Connect the DSP connector (1) to the top of the DSP board if there is an RS485 communication board installed.
4
4
7
7
6
6
3
3
DSP back view
1
4
2
3
DSP front view

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
