Hypertherm powermax1650 - Filter Element Replacement

MAINTENANCE
powermax1650 Service Manual
3-23
0
Filter Element Replacement
A
B
C

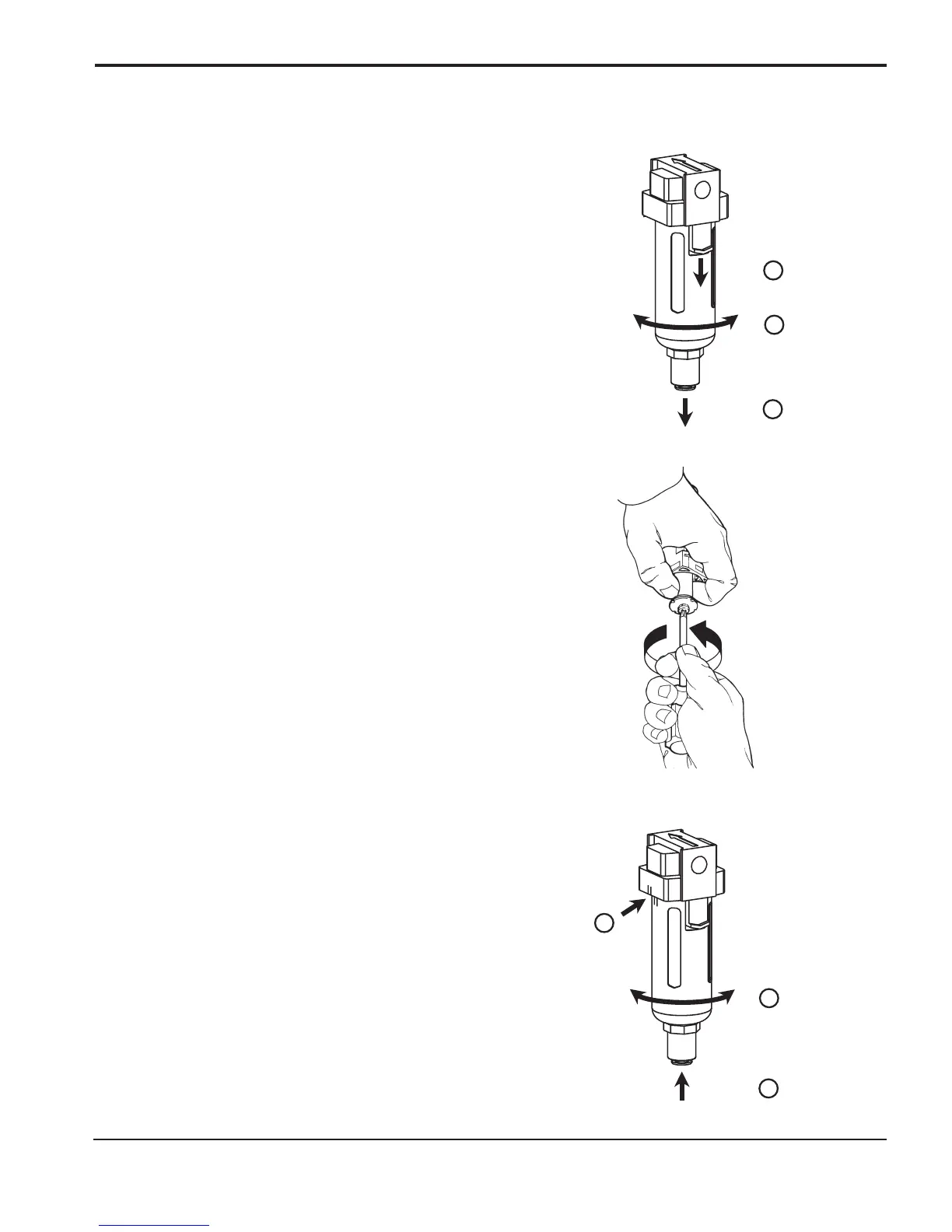

Disconnect electrical power and gas supply.
Remove filter bowl on new and old filter.
A. Pull down black release tab and hold.
B. Rotate filter bowl until it is released.
C. Pull filter bowl down to remove. Do not discard the
O-ring.

A
B
C

Install filter bowl.
A. Slide filter bowl over filter element.
B. Align marks on filter bowl and filter body.
C. Rotate filter bowl until it locks in place.

Remove the filter element (Part No. 011092) from the
filter housing.
NOTE: Do not allow the filter element to turn when
loosening the screw.
