Torch SeTup
powermax 65/85 Operator Manual 3-7
Machine torch setup
Before using either style of machine torch, you must:
• Mount the torch on your cutting table or other equipment.
• Choose and install the consumables.
• Align the torch.
• Attach the torch lead to the power supply.
• Set up the power supply for remote starting with either the remote-start pendant or a machine interface cable.

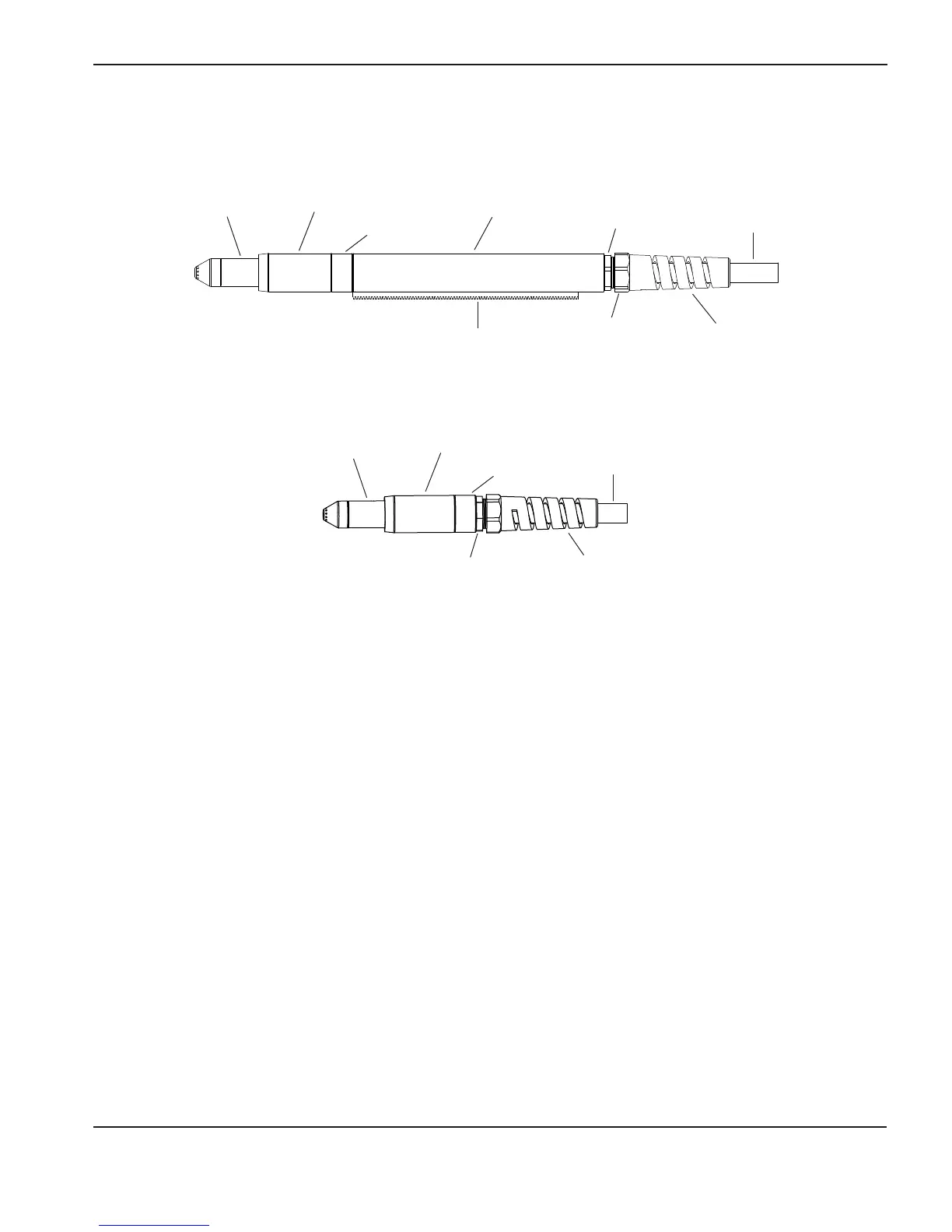

Duramax 180° full-length machine torch
Duramax 180° mini machine torch
Consumables
Consumables
Mounting
sleeve
Mounting
sleeve
Coupler
Coupler
Gear rack
Strain relief body
Strain relief body
Strain relief nut
Main strain
relief nut
Strain relief nut
Torch lead
Torch lead
Positioning sleeve
