HYPERVOLT Home 3.0 - Setting Maximum Operating Current

16
Maximum Operating Current
Installation
It is possible to limit the maximum current the Hypervolt Home 3.0 will operate at by permanently derating the unit using the internal dip switches. This is
called a “Hard Set” as opposed to a “Soft Set” which can be done from the App.
Setting the Maximum Operating Current (Hard Set)

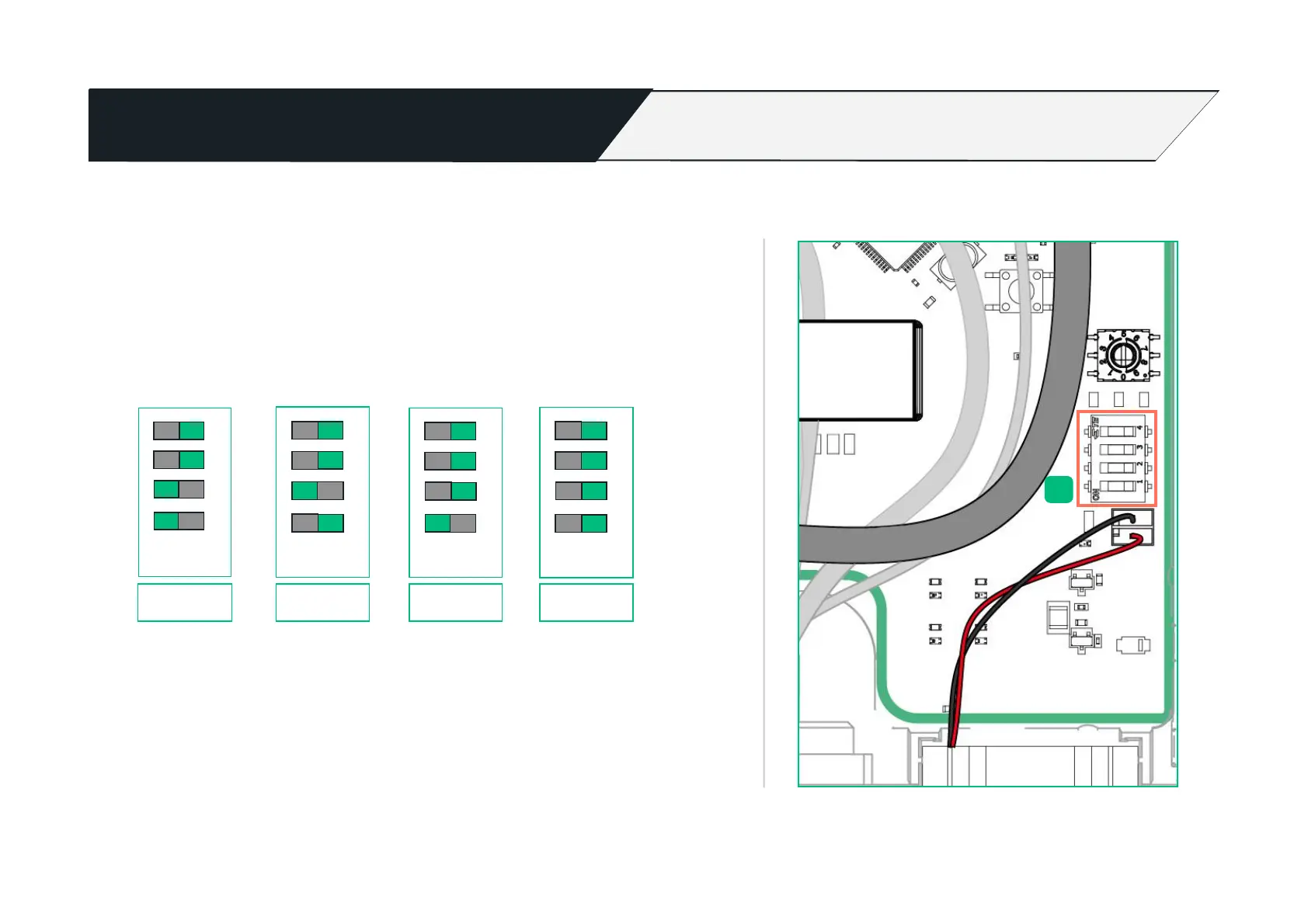

1. Locate the “Hard Set” dip switches (7) in the bottom left corner of the PCB.
2. The dip switches are factory set to the maximum 32A (all off).
3. Change the first two dip switches (1&2) to your required maximum output as per the
following positions:
Reducing the maximum operating current can sometimes be requested by a DNO and
should be done using the Hard Set method only.
10A
1 2 3 4
ON
16A
1 2 3 4
ON
20A
1 2 3 4
ON
32A
1 2 3 4
ON
