5
Getting Started
Installation
Please read before starting your install!
Hypervolt products must be installed by suitably qualified trained electricians only.
Above all else the Requirements for Electrical Installations as set out in BS7671
(as amended) must be followed with special attention to section 722.
In addition to the above the guidelines given in the “Code of Practice for Electric
Vehicle Charging Equipment Installation” (as amended) by the IET must also be
followed.
If you are unsure about any part of the installation of a Hypervolt product you must
obtain clarification from our technical department before proceeding.
After installation and within 48hrs the unit must be registered as having been
installed. This is done by scanning the QR code on the side of the unit or online.
This is to validate the warranty, failure to do so will void the warranty. Installers
must do this before leaving site.

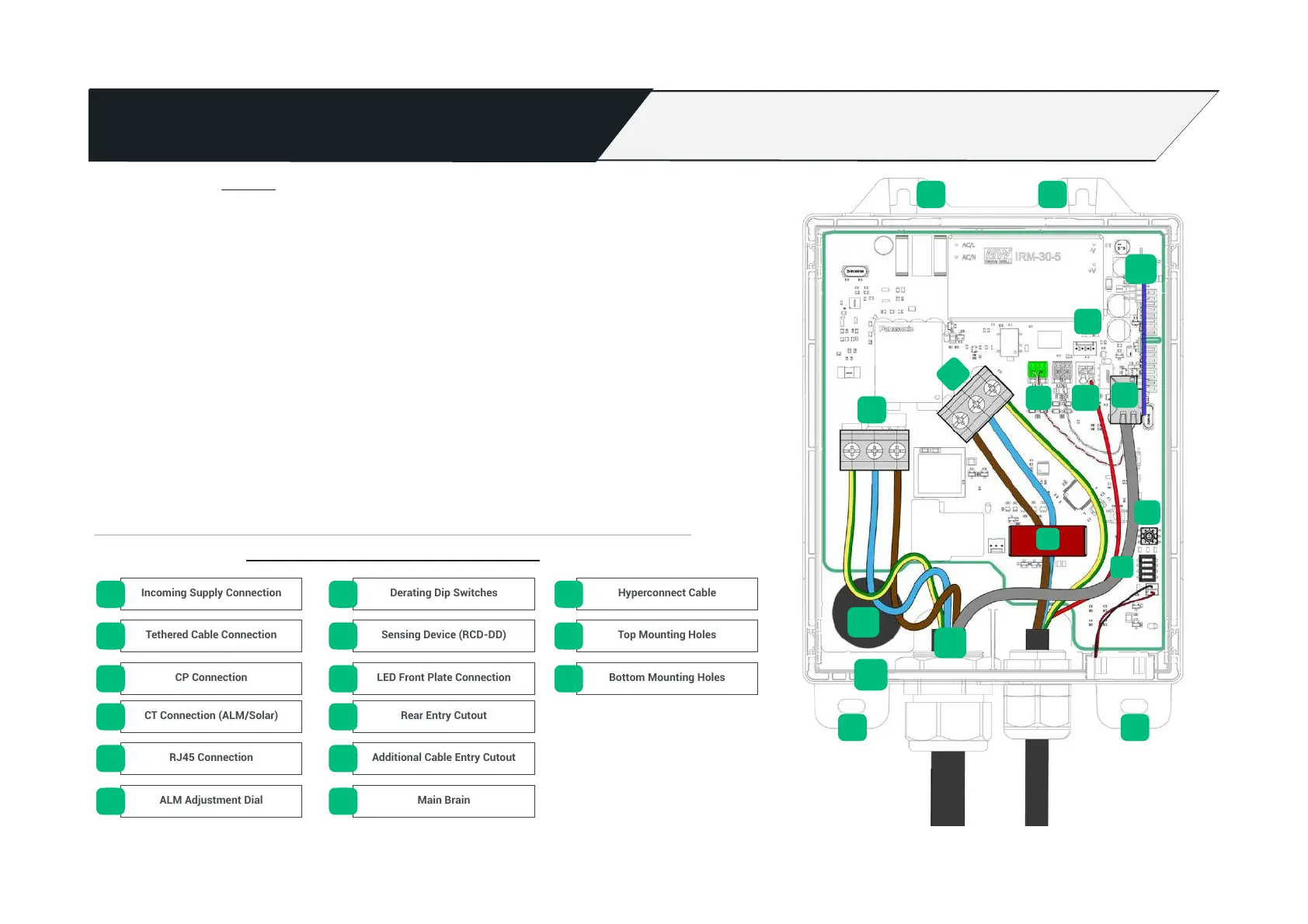

Location of Important Components
1
2
3
9
4
5
6
7
8
10
11
12
10A
Incoming Supply Connection
1
Tethered Cable Connection
2
CP Connection
3
CT Connection (ALM/Solar)
4
RJ45 Connection
5
ALM Adjustment Dial
6
Derating Dip Switches
7
Sensing Device (RCD-DD)
8
LED Front Plate Connection
9
Rear Entry Cutout
10
Additional Cable Entry Cutout
Main Brain
Hyperconnect Cable
Top Mounting Holes
Bottom Mounting Holes
10A
11
12
13
14
13
13
14
14
