Hysolis Apollo 5K - Page 12

10
12V/24V
MAX
10A
·
DC INPUT
MAX
35A
·
AC INPUT
COM1
AC OUTPUT
COMM.PORT
COM2
RESET
RUN
ALM
CHARGE
I
n
v
e
r
t
e
r
R
e
s
e
t
S
w
i
t
c
h
A
C
I
n
p
u
t
R
e
s
e
t
S
w
i
t
c
h
BATTERY
1
51.2VDC
BATTERY
2
51.2VDC
120V~450V
MAX.4400W(18A)
SOLAR INPUT
ONLY CONNECT HYSOLIS 5K BATTERIES.
DO NOT USE 3RD-PARTY BATTERIES.
CONNECTING THE WRONG BATTERY
MAY DAMAGE THE UNIT AND/OR HARM
THE USER.
CAUTION!
SWITCH BATTERIES OFF
BEFORE CONNECTING OR
DISCONNECTING BATTERY
CABLES.
CAUTION!
VOLTAGE MAY BE PRESENT ON
PV INPUT WHEN INVERTER IS
OPERATING..
DANGER!
Battery
Switch
DISCONNECT ALL INPUT AND
OUTPUT CABLES BEFORE
SWITCHING ON OR OFF.
BATTERY MAY ALWAYS BE
LEFT ON EXCEPT FOR
SHIPPING OR STORAGE.
NOTICE!
Acceptable
Voltage Range
65V~140VAC (for home appliances)
95V~140VAC (for computers)
Frequency 60Hz / 50Hz (auto-sensing)
Maximum
Current
30A (3,600 watts)
Table 5.1 Single unit - 120V AC input power parameters
5.3.1 Single Unit: 120V AC Input
INPUT PORT
Generator
Utility power

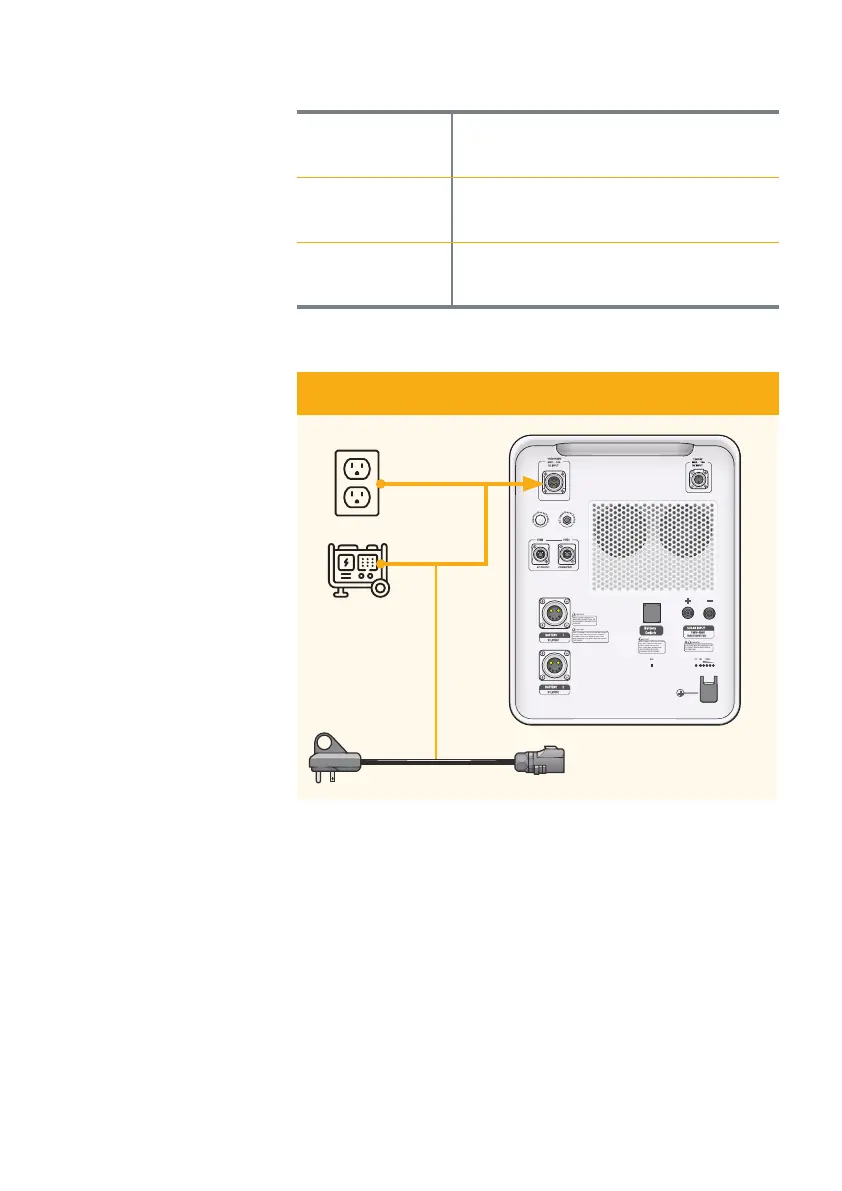

Fig. 5.4 Single unit - 120V AC input port and cable
