9
1
2
V
D
C
M
A
X
3
0
A
12VDC
MAX 30A
PD60W
5V 2.4A
QC 3.0
PD60W
12VDC
2A
AC OUTPUT
25AMAX
AC OUTPUT M AX 15 A
INPUT OUTPUT
5.1 Overview
There are two installation options. These include Single Unit setup and
Multi-unit setup. The power sources for each option include:
• AC input (i.e. utility power or generator)
• DC input (i.e. automobile with DC output)
• PV input (i.e. solar photovoltaic panels)
• Both setups provide AC and DC output.
5.2 General Installation Guidelines
During transport, the unit may have warmed or cooled outside of its working
temperature range. Moisture may have condensed on the unit. Ensure it is dry
and within the proper temperature range before using.
• Do not use the product in a wet or dusty environment.
• Do not use anything flammable or explosive near the product.
• Do not cover or block the vents in the product.
• Maintain 4 inches (10cm) of clear space around the unit to have good heat
dissipation.
5.3 Single Unit Options
This section provides an overview of the single unit options. It shows input
power options (Fig. 5.3), possible ouput capabilties, and describes the input and
output power parameters for AC, DC, and PV (solar) input and AC, DC output.

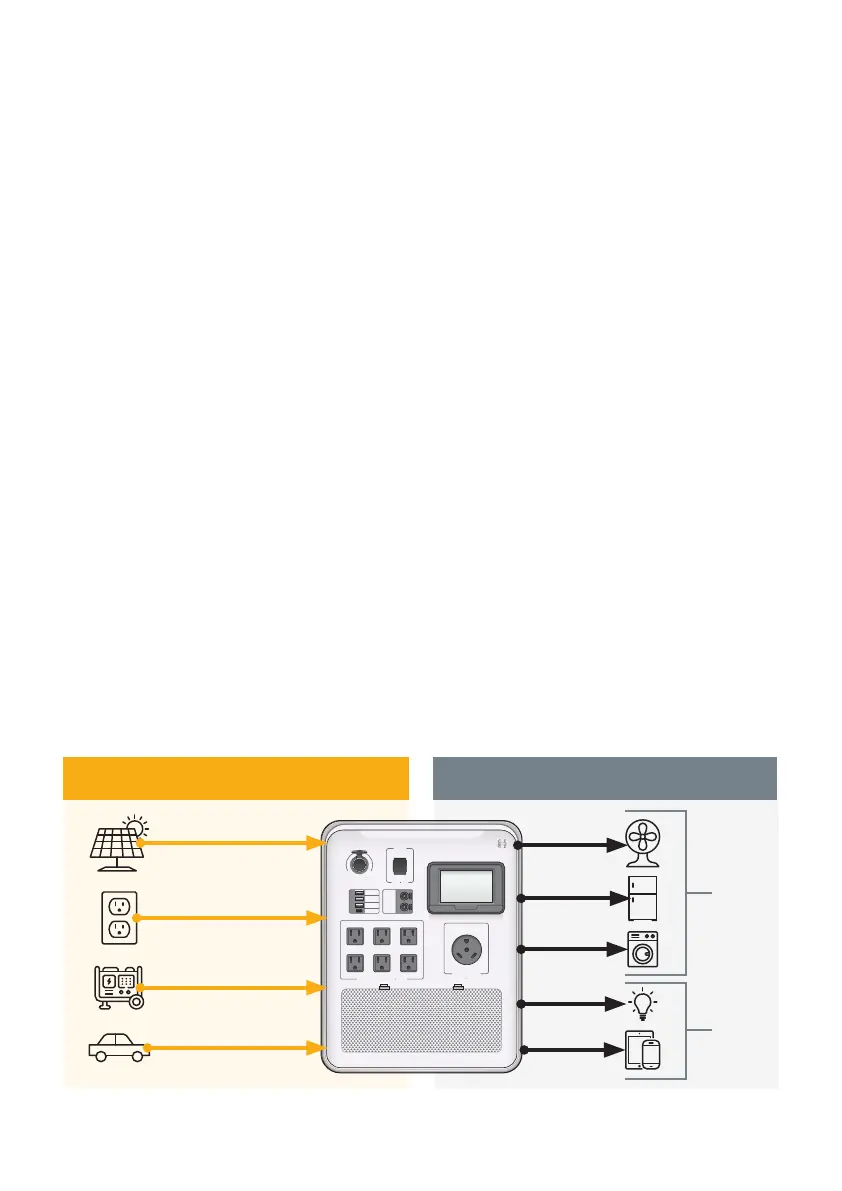

Fig. 5.3 Power options and output capabilities
PV
Utility
AC
Loads
DC
Loads
Generator
Vehicle
To Next Page
