Hytera HD705 - Assembly

Service Manual Disassembly and Assembly
489

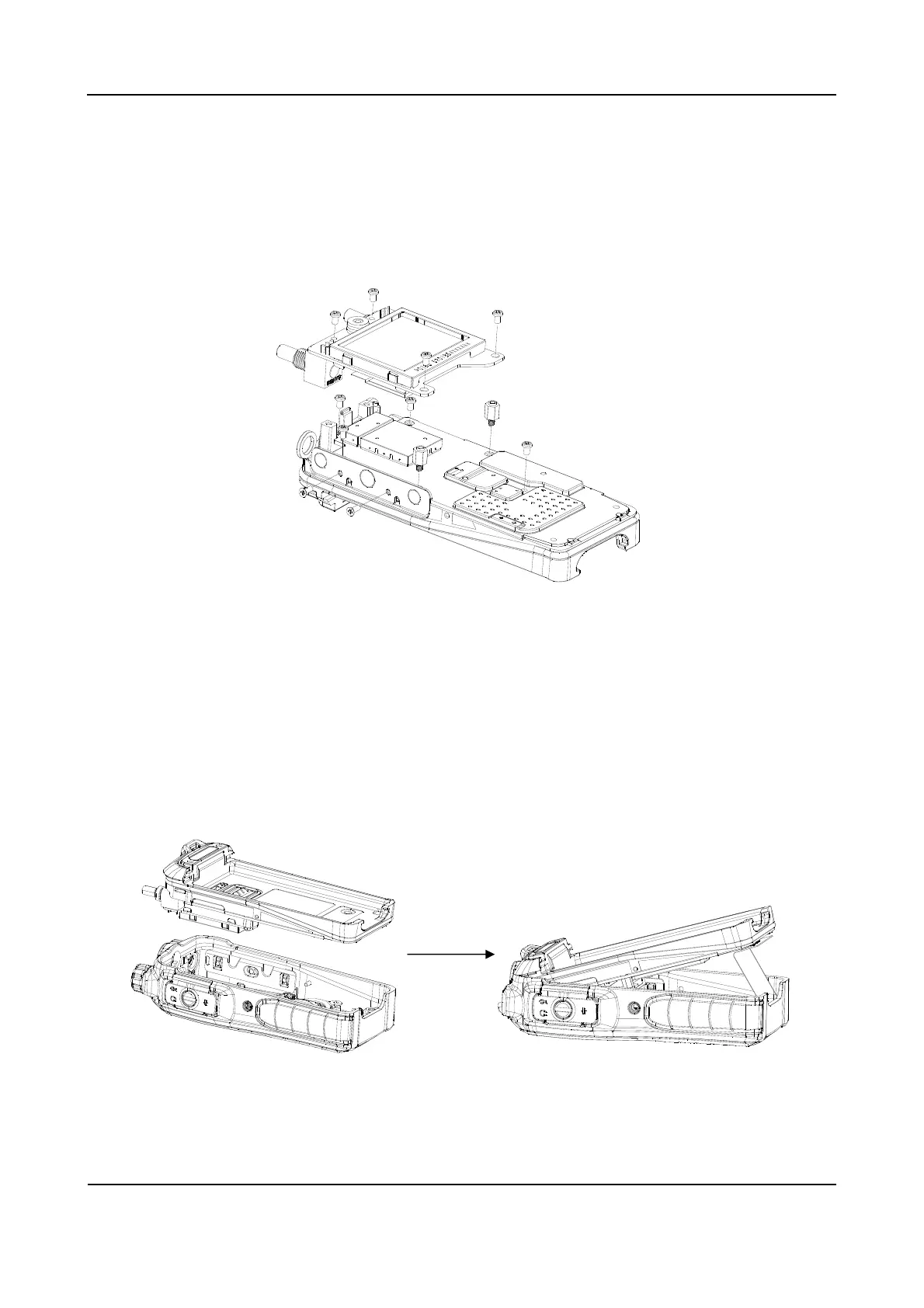

Step 2 Remove the screws on the LCD board (for PD70X/ PD70XG/ HD705/ HD705G, please remove
the screws on the small board).
Step 3 Remove the screws on the main board.
Step 4 Take the main board down the chassis.
12.3 Assembly
Step 1 Make sure the waterproof ring surrounding the chassis is well fitted into the slot.
Step 2 Insert the chassis into the radio case.
Step 3 Attach the 50-pin board-to-board connector.
Step 4 Press the bottom of the chassis downwards to fit the chassis into the radio case.
