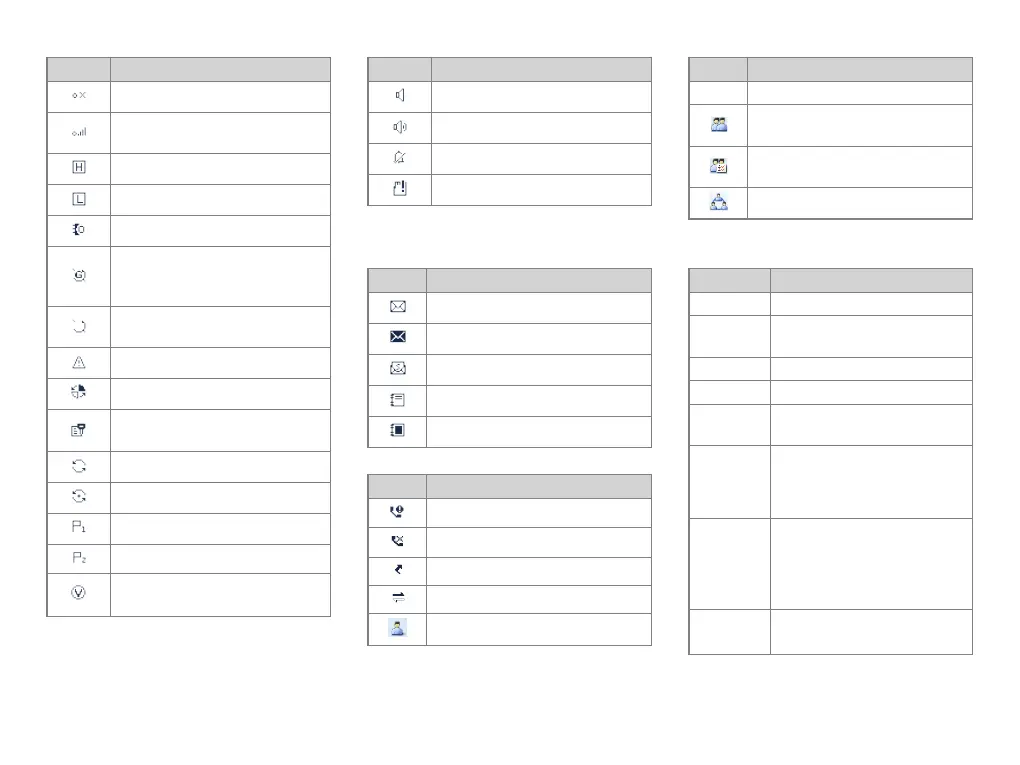

Hytera PD78X User Manual

Icon Radio Status
There is no signal in TM-DL mode.
The number of bars indicates the signal
strength in TM-DL mode.
The radio operates in high power mode.
The radio operates in low power mode.
An accessory is connected.
The Global Positioning System (GPS)
feature is enabled, and the radio has
received valid GPS data.
The GPS feature is enabled, but the radio
has not received valid GPS data.
The radio is in emergency mode.
The radio is roaming.
The Scrambler or Encryption feature is
enabled.
The radio is scanning or hunting.
The radio stays on a non-priority channel.
The radio stays on priority channel 1.
The radio stays on priority channel 2.
The Voice Operated Transmit (VOX)
feature is enabled.
Icon Radio Status
The Monitor feature is enabled.
The speaker is turned on.
The radio operates in silent mode.
No TF card is detected.*
*The icon is only applicable to the PD78X enhanced
version.
Short Data Icons
Icon Radio Status
There is/are unread short message(s).
The inbox is full.
The message has been read.
There is/are unread work order(s).
The work order list is full.
Call Icons
Icon Radio Status
There is/are alert call(s).
There is/are missed call(s).
The Call Divert feature is enabled.
A half duplex private call is in progress.
A private call is in progress or a private
Icon Radio Status
contact is on the contact list.
A group call is in progress or a group
contact is on the contact list.
An all call is in progress or an all call
contact is on the contact list.
An include call is in progress.
LED Indications
LED Indicator Radio Status
Flashes green The radio is being turned on.
Flashes green
slowly
The radio is standby in trunking mode.
Glows green The radio is receiving.
Glows red The radio is transmitting.
Flashes red
The calling radio is establishing a call in
trunking mode.
Flashes orange
slowly
l Conventional mode: The radio is
scanning or roaming.
l Trunking mode: The radio is
hunting.
Flashes orange
rapidly
l Conventional mode: The radio is in
emergency mode.
l Trunking mode: The called radio is
establishing a Full Off Air Call Set-
Up (FOACSU) call.
Glows orange
Call hang time: No voice is being
transmitted
or
received on the channel
10

Hytera PD78X Specifications

General

Brand	Hytera
Model	PD78X
Category	Portable Radio
Language	English
