CHARGE THE BATTERY
• The LITHIUM SERIES® II Tool is supplied with the HYTORC Battery Charger (Model: A000791) and two long-life HYTORC
36-volt batteries (Model: P002036-1)
• Before charging a battery verify the local voltage supply to ensure capability with the charger; this will typically be 110
Volts or 220 Volts AC.
• Only operate the battery charger between 32°F (0°C) to 104º F (40º C) and with 10% to 90% ambient relative humidity
(no condensate)
• Connect the charging cradle to the power supply
• Connect the power cord to a grounded outlet
• If necessary connect the plug adapters to the local power outlet
• Insert the battery by sliding it into the charger and locking into place
• The 36-volt battery is fully charged in approximately 90 minutes
CHARGING/FAULT INDICATOR
• POWER INDICATOR green when charger is plugged into AC outlet
• CHARGING/FAULT INDICATOR is flashing green while battery is charging
• CHARGING/FAULT INDICATOR solid green when battery is fully charged
• CHARGING/FAULT INDICATOR is flashing red for battery fault not charging
BATTERY STORAGE
• Only store the battery and charger in the following environmental conditions:
• -4°F (-20°C) to 122°F (50°C) 5% to 95% ambient relative humidity

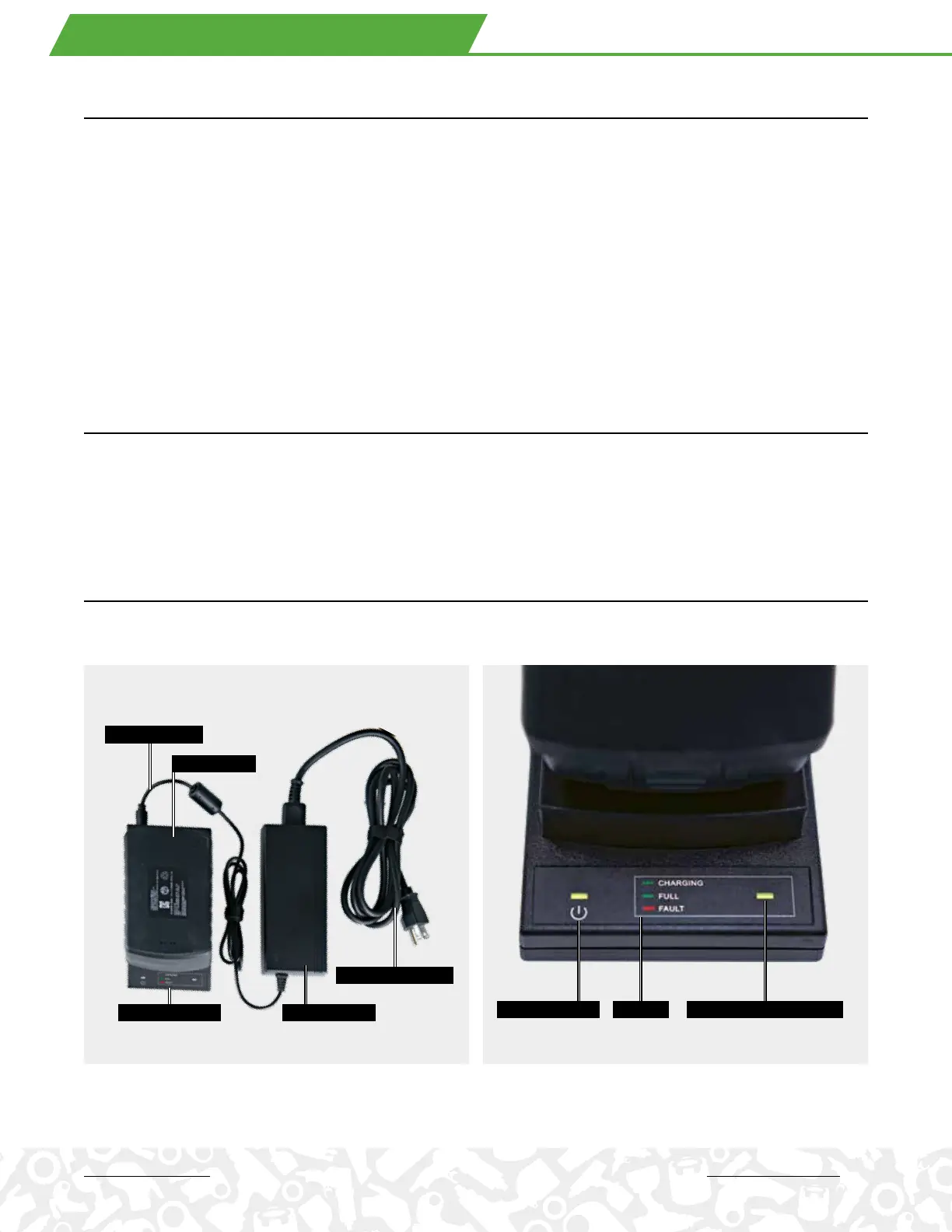

Charging Cable
Battery Pack
Charging Cradle
Power Indicator Charging/Fault IndicatorLegend
Power Supply
Power Supply Cord
. CHARGE, TEST & INSTALL BATTERY
