LITHIUM SERIES® Electric Torque Tool (BTM and BTM-DOC Models) Operations Manual
28

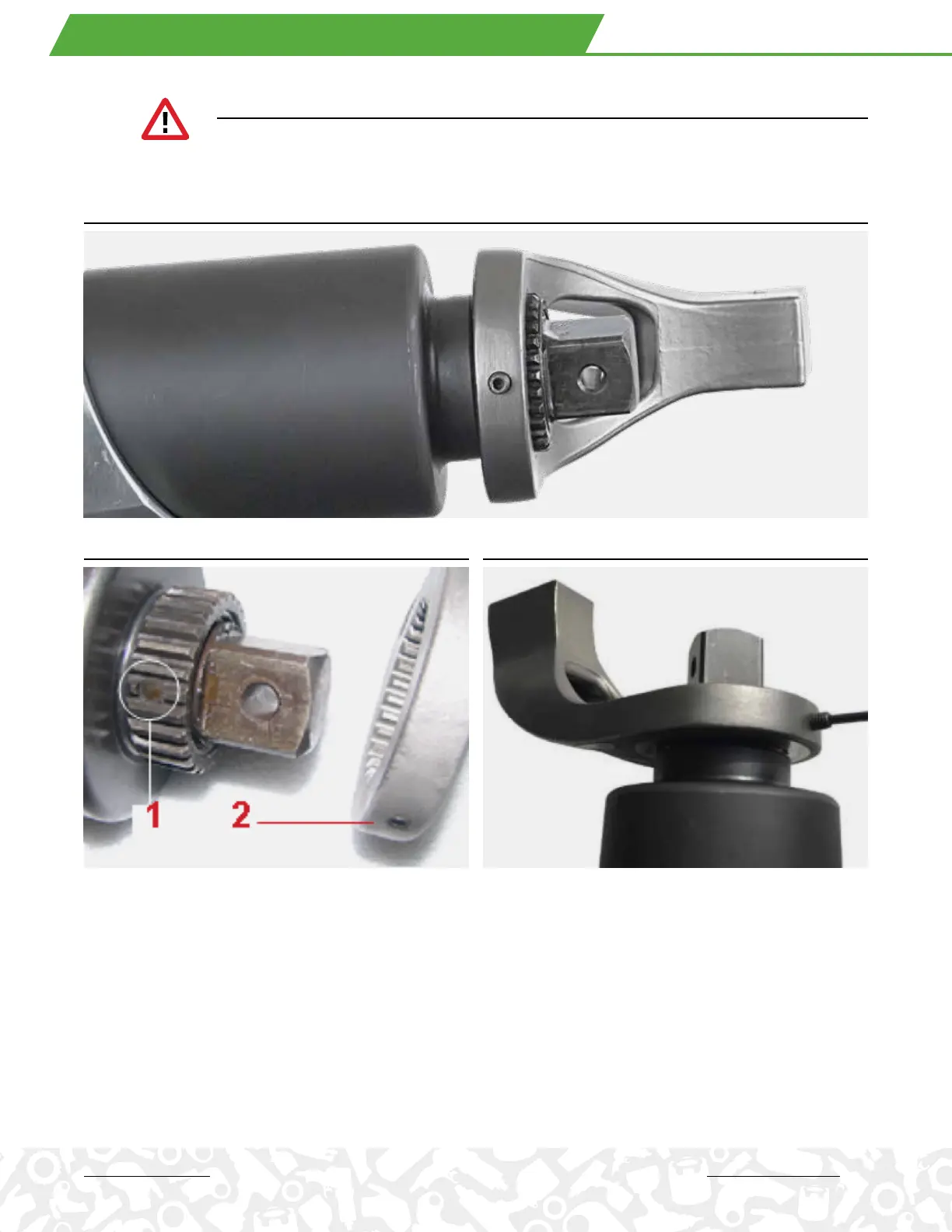

INSTALL REACTION ARM
. FLAT ON REACTION SPLINE. . ALLEN SET SCREW TIGHTEN ALLEN SET SCREW
WARNING!
Make sure the reaction arm is in direct contact with an immovable object before fastening and that no
part of your body is in the path of the reaction arm when the nut is tightened to avoid injury.
The Tool is easily configured for conventional torque applications with standard sockets and reaction arms.
• The reaction arm is quickly secured to the tool
• Slide the reaction arm over the drive while aligning the set screw with the flat on the Spline
• Tighten the set screw to firmly attach the reaction arm.
• Challenge the reaction arm to make sure it is firmly secured.
• Never modify a reaction arm as this may lead to personal injury or damage to the tool.
. BOLTING WITH CONVENTIONAL REACTION ARM
