LITHIUM SERIES® Electric Torque Tool (BTM and BTM-DOC Models) Operations Manual
14
SET LOOSEN ANGLE
The Loosen Angle feature allows the user to loosen by number of full turns (expressed as TT with a range of 0-99), and
degrees of angle (expressed as DDD with a range 0-359).
Press and hold the center button for approximately 3
seconds to enter a new Loosen Angle.

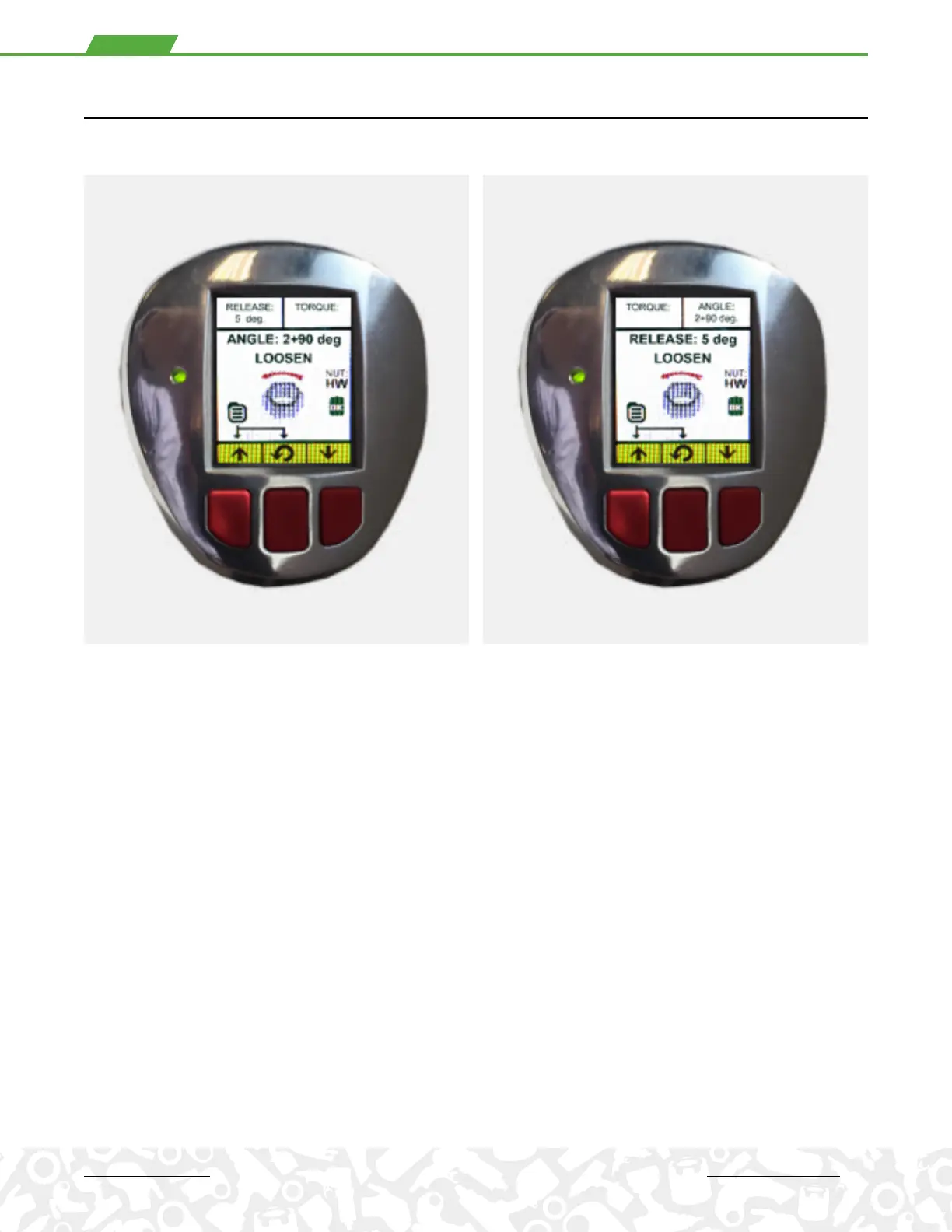

The current Loosen Angle setting will be displayed in “TT +
DDD” format. Where TT = number of turns and DDD = angle.
Value can be increased or decreased using arrow buttons
from “0 + 0” to “99 + 359”.
Press and hold the center button for approximately 3
seconds and release it to access the Loosen Release screen.
A release is required in some applications.
Push the left button h to increase the Release Angle value.
Push the right button i to decrease.
Press and hold the center button for approximately 3
seconds to return to the Loosen Mode screen.
(CONT’D.)
