Inching linkage
Remove the clevis pin from the
transmission control valve.
(5)
Transmission
control valve
Inching pedal
Clevis pin
20D7RE15
Radiator
assy
Transmission assy
Hose
Hose
20D7RE16
Transmission cooling piping
Transmission cooling piping
Disconnect cooling hose from the
transmission.
Make sure that the coolant be drained
from the hose.
(6)
①
※

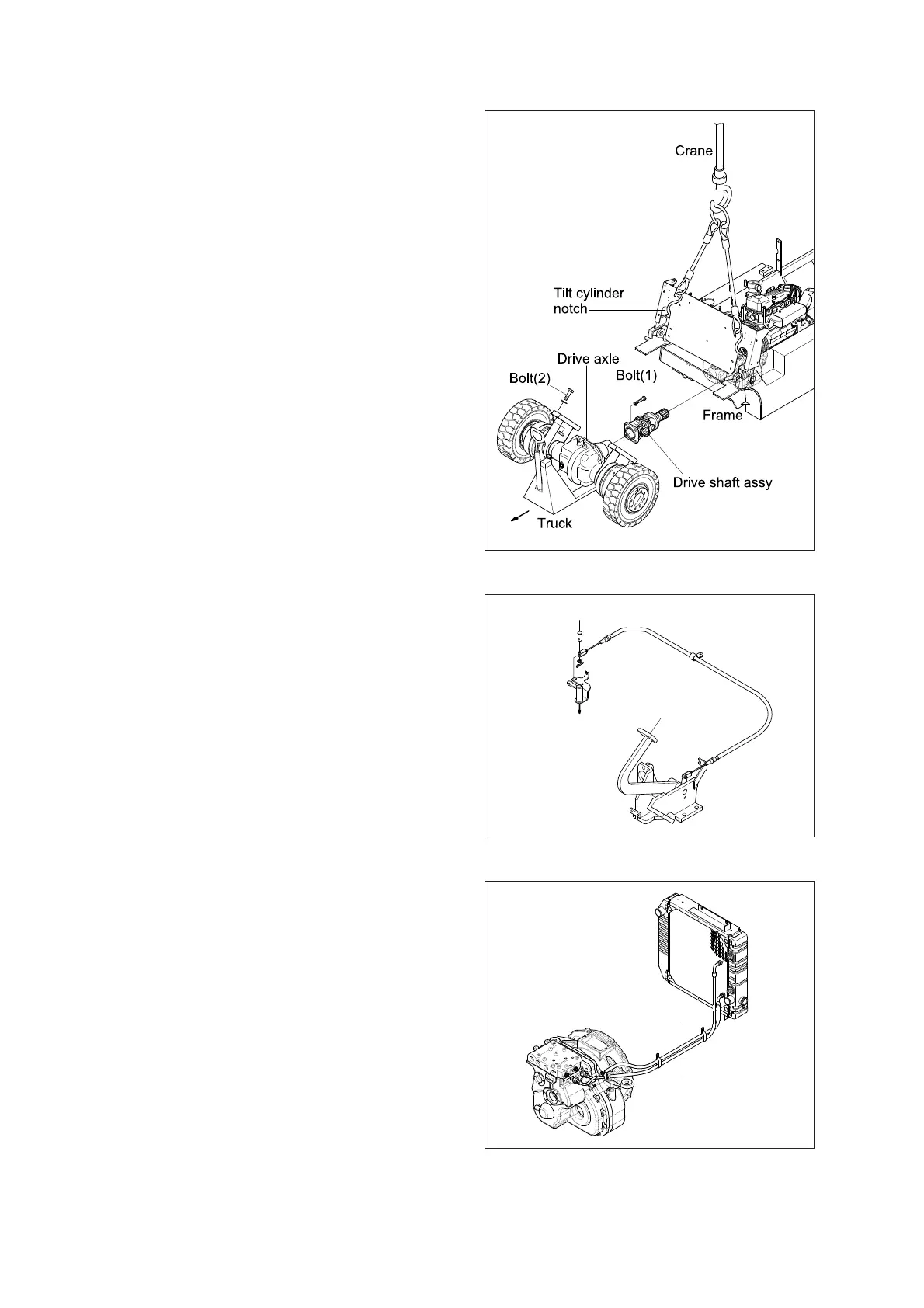

Drive axle
Attach a crane to the tilt cylinder notches
on the dashboard and raise the machine.
Loosen hexagonal bolts (1) connection
drive axle to the transmission.
Put the block under the drive axle and
support under the drive axle with a truck.
Remove drive axle mount bolts (2) from
the frame and then slowly pull out the
truck with drive axle to the front.
Remove drive shaft assy from
transmission.
(4)
①
②
③
④
⑤
20D7ERE14
