2.3.8 Run Command Source to Input Terminal

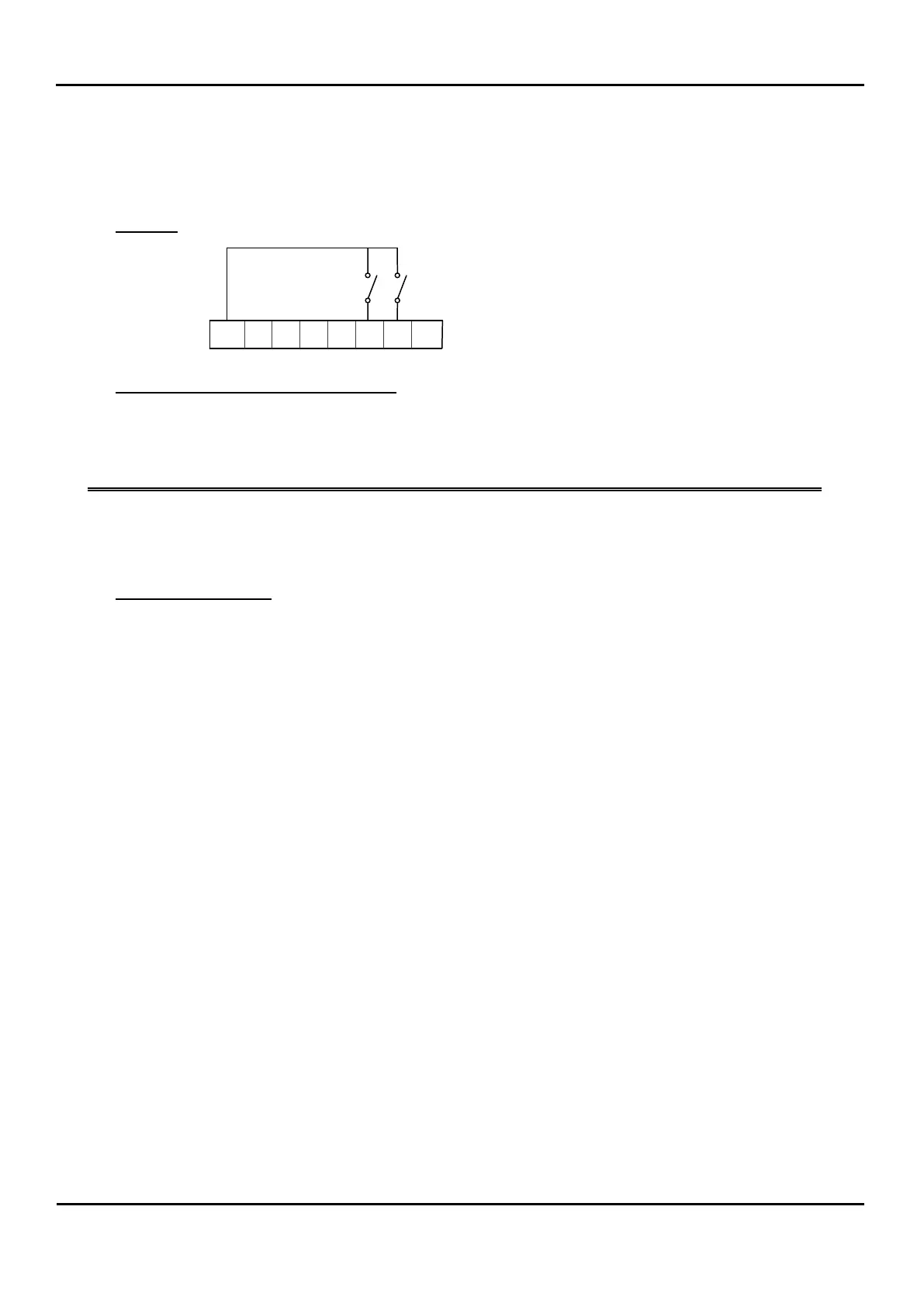

 Diagram
 Programming N700E Parameters
 Executing Run Command
 Diagram
 Programming Run Command Source
 On Keypad, program following parameters with corresponding values
Code
Set
Value
Description
A02
1
Run Command Source to Input Terminal
C01
0
Set Terminal 1 to Forward (FW) Run Operation:
C02
1
Set Terminal 2 to Reverse (RV) Run Operation
 Executing Run / Stop
 Closing FW switch, Run command is executed in forward direction; when opened, it stops the VFD.
 Closing RV switch, Run command is executed in reverse direction; when opened, it stops the VFD.
 If both FW and RV switches are closed, nothing will happen.
CM1
6 P24
RV FW
5 4 3 2 1
