3.2 d Group Parameters
 d01 Output Frequency Monitor
 Range: 0.00 ~ 400.00 Hz
Real time display of output frequency of the VFD
 d02 Output Current Monitor
 Range: 0.0 ~ 9999 Amps
Real time display of output current of the VFD
 d03 Output Voltage Monitor
 Range: 0 ~ VFD rated voltage
Real time display of output voltage of the VFD
 d04 Rotation Direction
 F: Forward Run
 □: Stop
 r: Reverse Run
Real time display of rotation of the VFD
 d05 PID Feedback
 Range: 0.00 ~ 100.0 %
Scaled PID process variable – feedback value

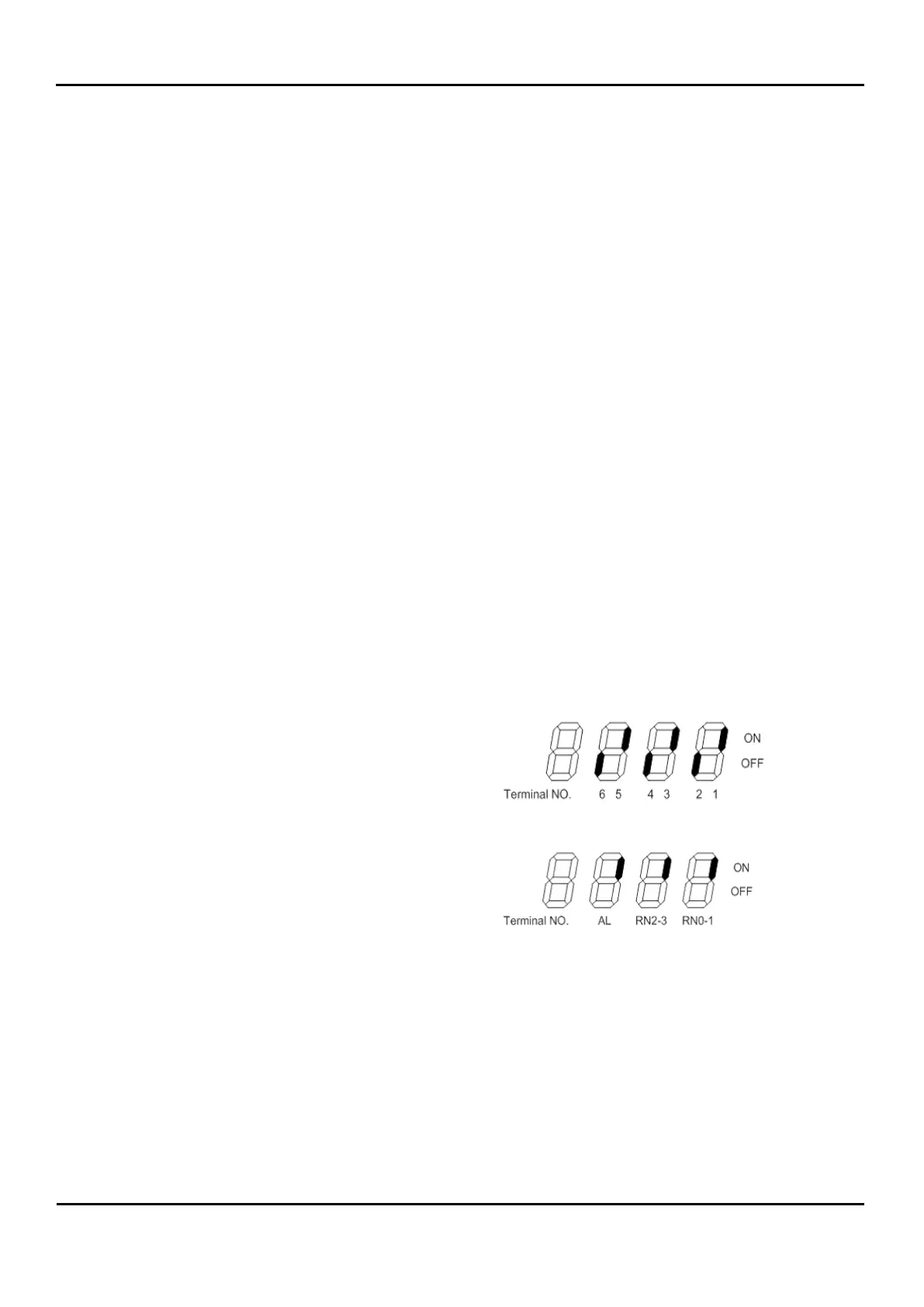

 d06 Intelligent Input Terminal Status
 Show the Intelligent Input Terminal Status
Meaning: T1 is On, T2 is Off
T3 is On, T4 is Off
T5 is On, T6 is Off
 d07 Intelligent Output Terminal Status
 Show the Intelligent Output Terminal Status
Meaning: RN0 – 1 is On
RN2 – 3 is On
AL0 – AL1 is On
 d08 RPM Output
 Range: 0 ~ 65,540 RPM
Scaled RPM Output determined by equation: (120* d01 * b14) / H04
 d09 Power Consumption
 Range: 0 ~ 999.9 kW
 d10 VFD Runtime (Hours)
 Range: 0 ~ 9999 Hr
Accumulated VFD runtime in hours
