[2] Writing

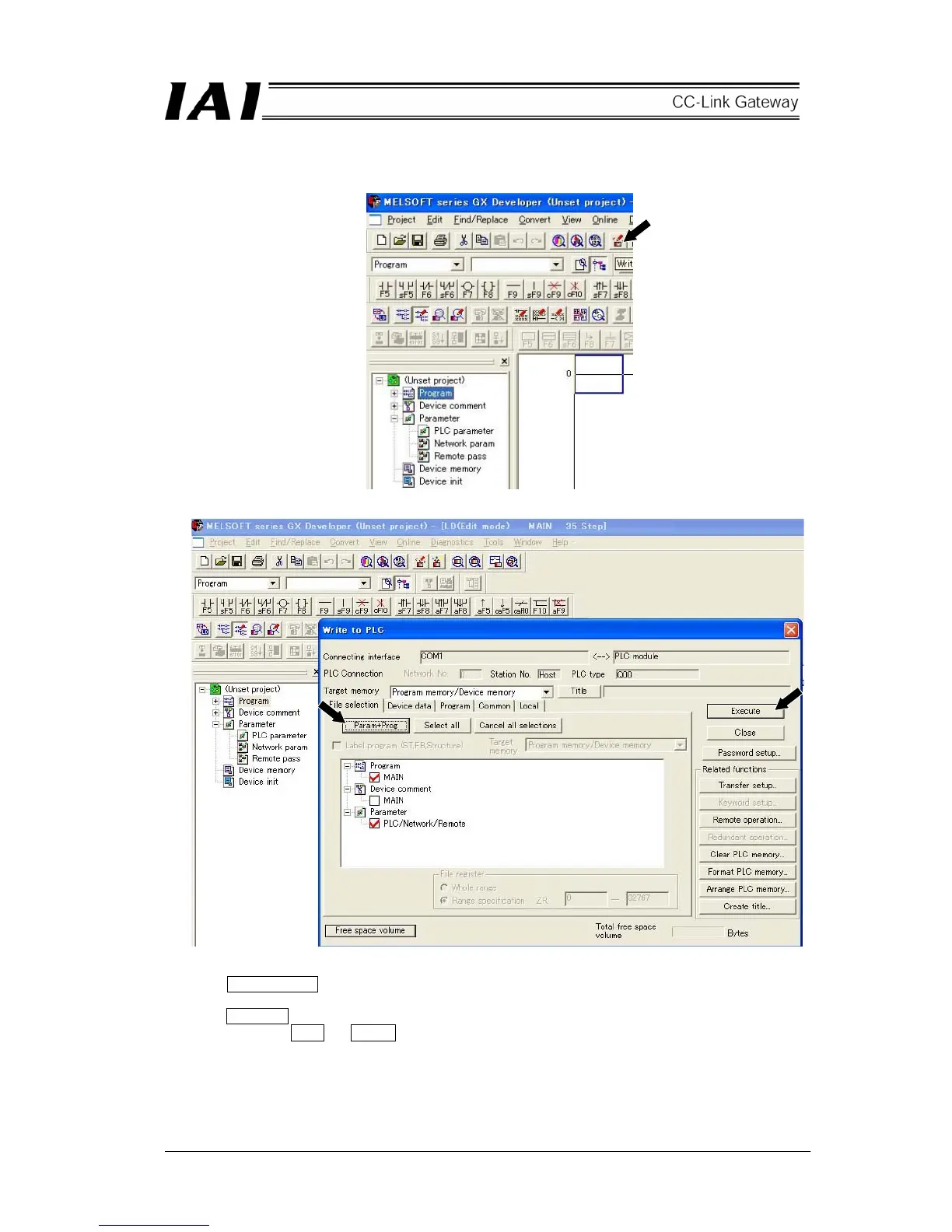

Click write to PLC tab to display the following PLC write screen.
Click Param+Prog button on the PLC write screen, and select the “MAIN” for program and the
“PC/Network” for parameter.
Click Execute button, then write is performed, and when it is completed, dialog box for confirmation
appears. Click OK → Close , and then write is completed.
[3] PLC-CPU reset
Parameters become effective by resetting the CPU for the PLC.
