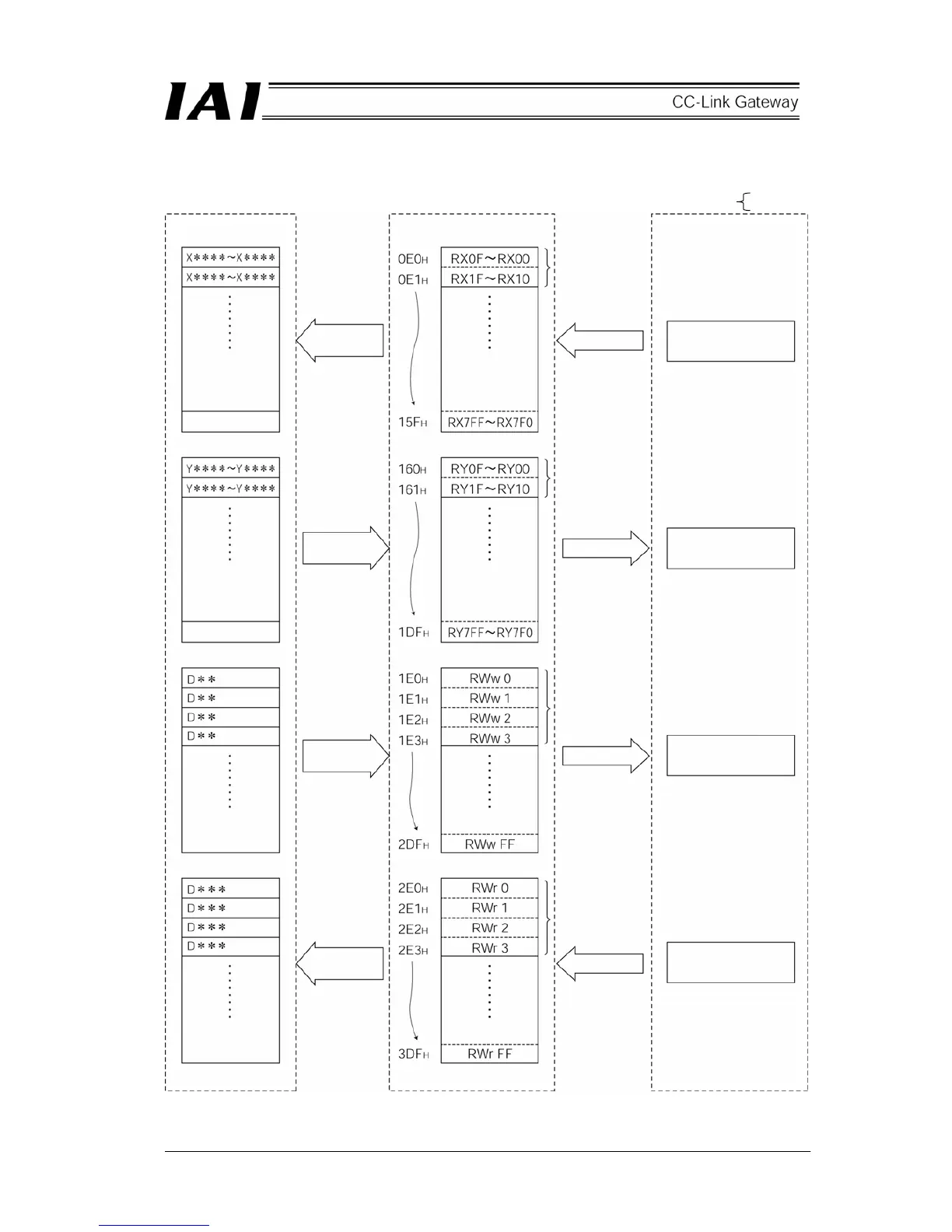

CC-Link memory map (MITSUBISHI Q series)
PLC-CPU Master station buffer memory Remote station
Internal device
Remote input (RX)
Automatic
refresh
Automatic
refresh
Automatic
refresh
Automatic
refresh
(2 words) for
one station
(2 words) for
one station
(2 words) for
one station
(2 words) for
one station
Remote output (RY)
Remote register (RWw)
Remote register (RWr)
Remote input
I/O station
Device station
Bit data
Remote output
Bit data
Remote register
Word data
(numeric data)
Remote register
Word data
(numeric data)
