3.7.4 INSERT THE BATTERY STRAP (SEE
FIG. 19).
3.7.5 INSERT THE BATTERY WITH
TERMINALS TOWARDS THE OUTSIDE (SEE
FIG. 20).
SUGGESTION:
NEVER CONNECT THE BATTERY UNTIL
YOU ARE READY TO START THE ENGINE.
SEAL THE BATTERY TERMINALS WITH
PLASTIC TAPE TO AVOID THAT EVENTUAL
VIBRATIONS MIGHT DISCONNECT THE
TERMINALS.
ATTENTION:
PAY ATTENTION NOT TO SHORT CIRCUIT
THE BATTERY TERMINALS AS BATTERY
COULD BE DAMAGED BEYOND REPAIR.
ELECTRICAL CONNECTIONS ON
THE ENGINE
3.8
3.8.1 GROUND THE POWER PACK.
ATTENTION:
AN INADEQUATE GROUNDING OF THE
POWER-PACK BOX COULD DAMAGE THE
BOX BEYOND REPAIR. MAKE SURE TO
CAREFULLY FOLLOW THE UNDER SHOWN
INSTRUCTIONS.
3.8.2 POSITION THE HARNESS FROM THE
POWER-PACK BOX ALONG THE CENTRAL
RAIL , UNDERNEATH THE SEAT, AND
TIGHTEN WITH PLASTIC CLAMPS (SEE FIG.
21).
ATTENTION:
NEVER LET THE HARNESS GET IN TOUCH
WITH THE GROUND OR WITH ROTATING
PARTS AS IT COULD BE DAMAGED
BEYOND REPAIR.

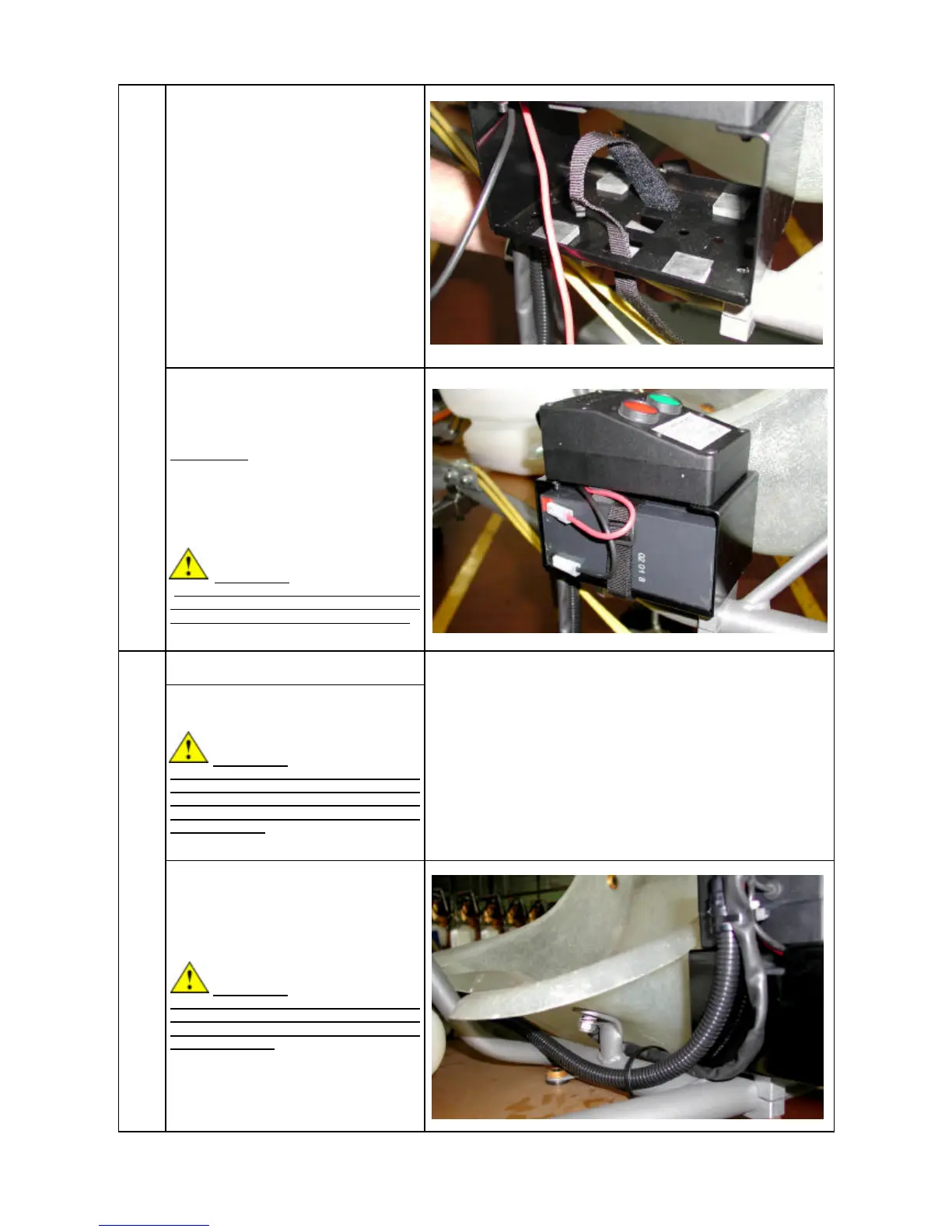

Fig.19
Fig.20
Fig.21
