IAME 125 cc LEOPARD TaG engine User Manual

18/10/02 mod. C MAN-016 D
16

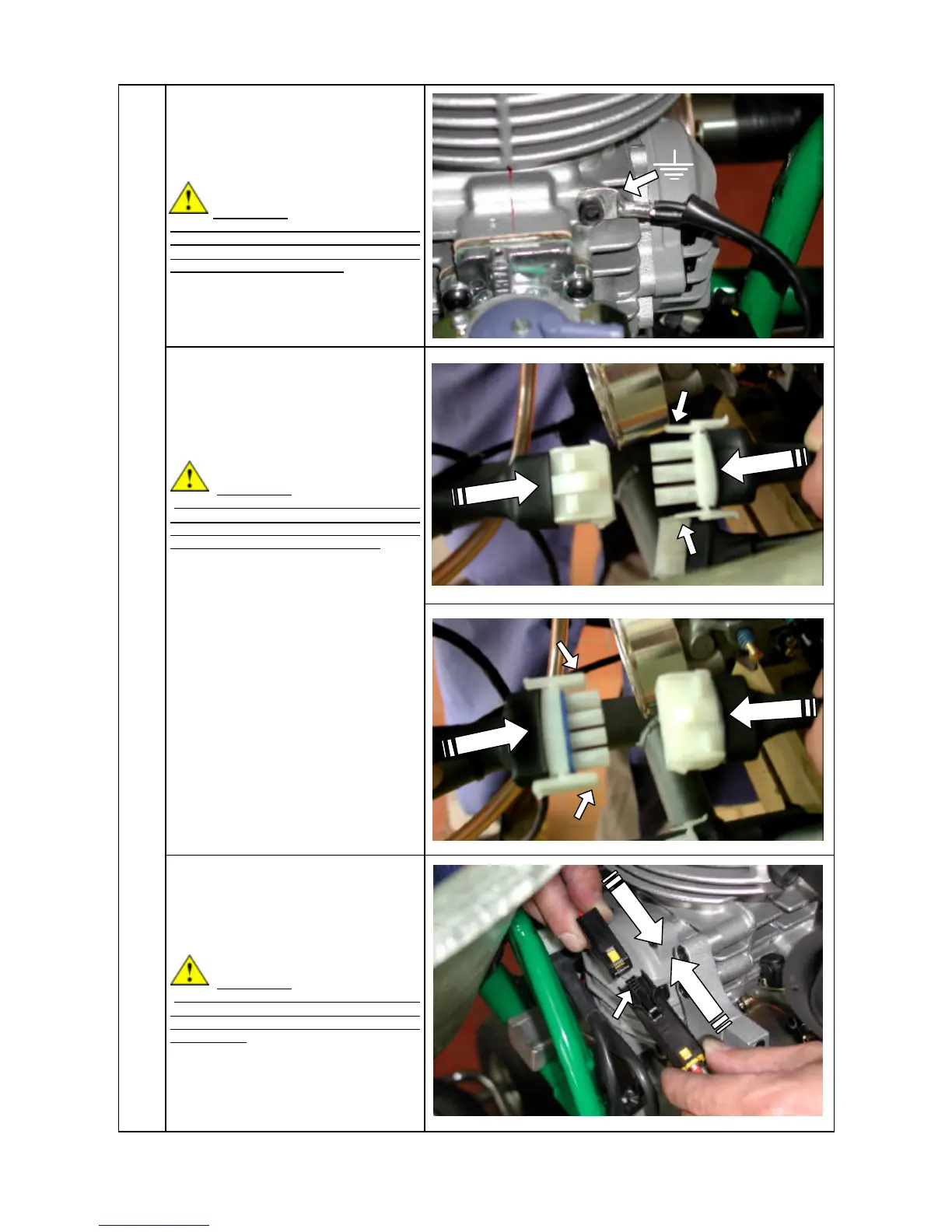

3.8.3 FIX THE GROUND CABLE, FROM THE
POWER-PACK, ON THE ENGINE CARTER,
BY MEANS OF THE PROPER THREADED
HOLE (SEE FIG. 22).
ATTENTION:
THIS OPERATION IS EXTREMELY
IMPORTANT AS AN UNCERTAIN
GROUNDING COULD DAMAGE THE POWER
PACK BOX BEYOND REPAIR.
3.8.4 CONNECT THE TERMINALS (3 AND 4
WAYS) ON THE HARNESS FROM THE
POWER PACK BOX WITH THE TERMINALS
ON THE CABLES FROM THE IGNITION (SEE
FIG. 23-24).
ATTENTION:
MAKE SURE THAT THE FIXING TONGUES
ARE PROPERLY INSERTED TO
GUARANTEE THE BEST POSSIBLE
CONNECTION OF THE TERMINALS.
3.8.5 CONNECT THE CABLE TERMINAL
(SINGLE), FROM THE POWER-PACK, WITH
THE CABLE TERMINAL ALREADY
CONNECTED TO THE STARTER (SEE
FIG.25).
ATTENTION:
MAKE SURE THAT THE FIXING TONGUE IS
PROPERLY INSERTED TO GUARANTEE
THE BEST POSSIBLE CONNECTION OF THE
TERMINALS.
Fig.22
Fig.23
Fig.24
Fig.25
