3.
REMOVEDRUM FROMSTARTER
KEEPINGROTORINITSSEAT
(BESURETOHOLDTHEROTORONITS
TOOTHEDSIDETOPREVENTBRUSHES
FROM FALLINGOUTFROMTHEIRSEAT)
(seeFig.7)
REMOVEROTORFROMSTARTERHEAD
(seeFig.8)
ATTENTION:
WHENEXTRACTINGROTOR,THEBRUSHES
MAYSPRINGOUTFROMTHEIRSEATS.
REPL ACINGTHEBRUSH“A”
UNSCREWTHE2SCREWSM4“D”
RETAININGTHEPLATE“E”(seeFig.9).
(SCREWDRIVER)
REMOVETHELITTLERUBBERCAP“F”(see
Fig.10).
(PLIERS)
OURSUGGESTION:
SLIGHTLYOILTHETINPLATETERMINAL
END,TO MAKEEASIERTHEEXTRACTIONOF
THELITTLE RUBBERCAP.

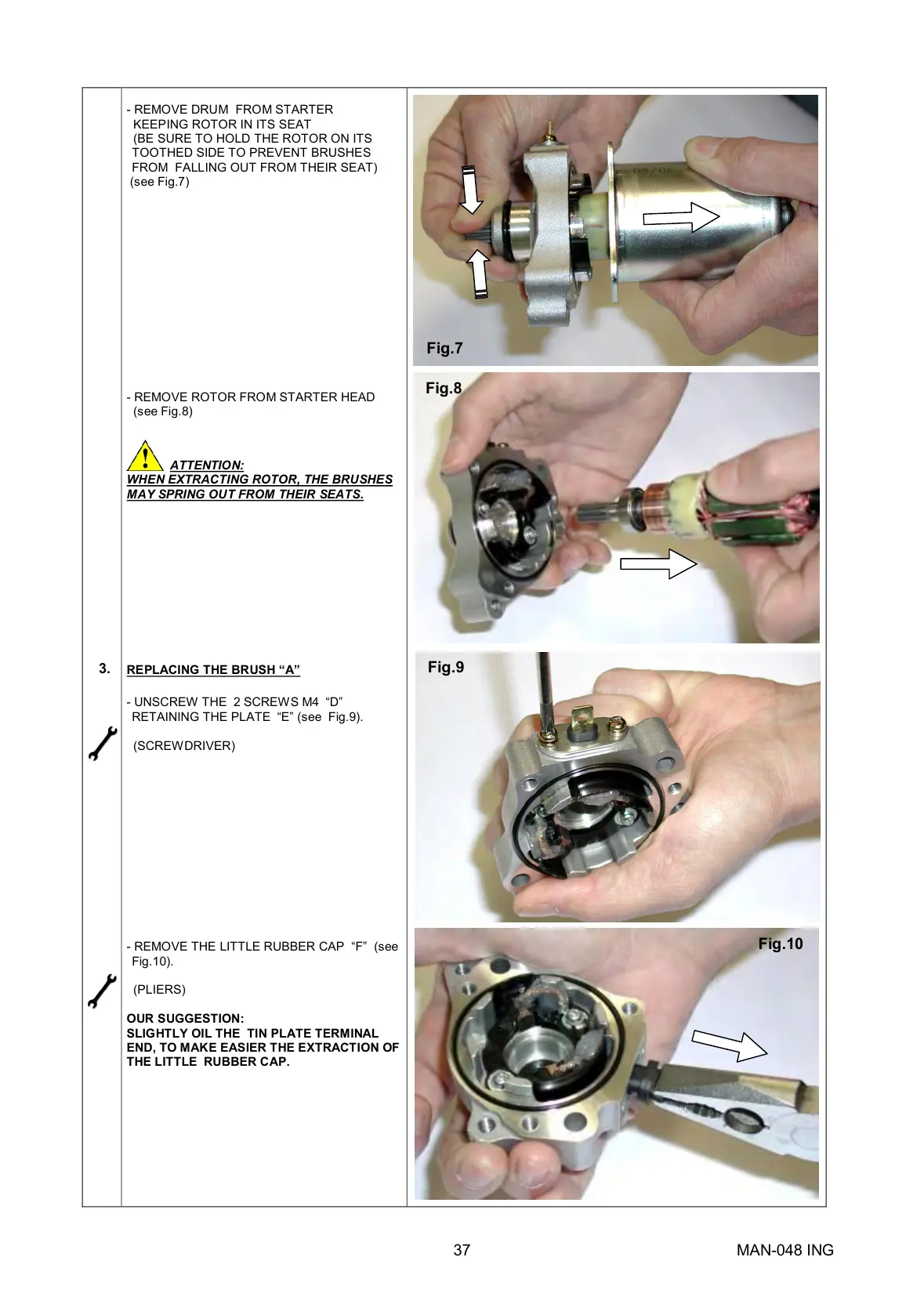

Fig.4
