IAME Parilla LEOPARD - Page 40

MAN048ING38
REMOVESILICONEFROMBRUSHESWITHA

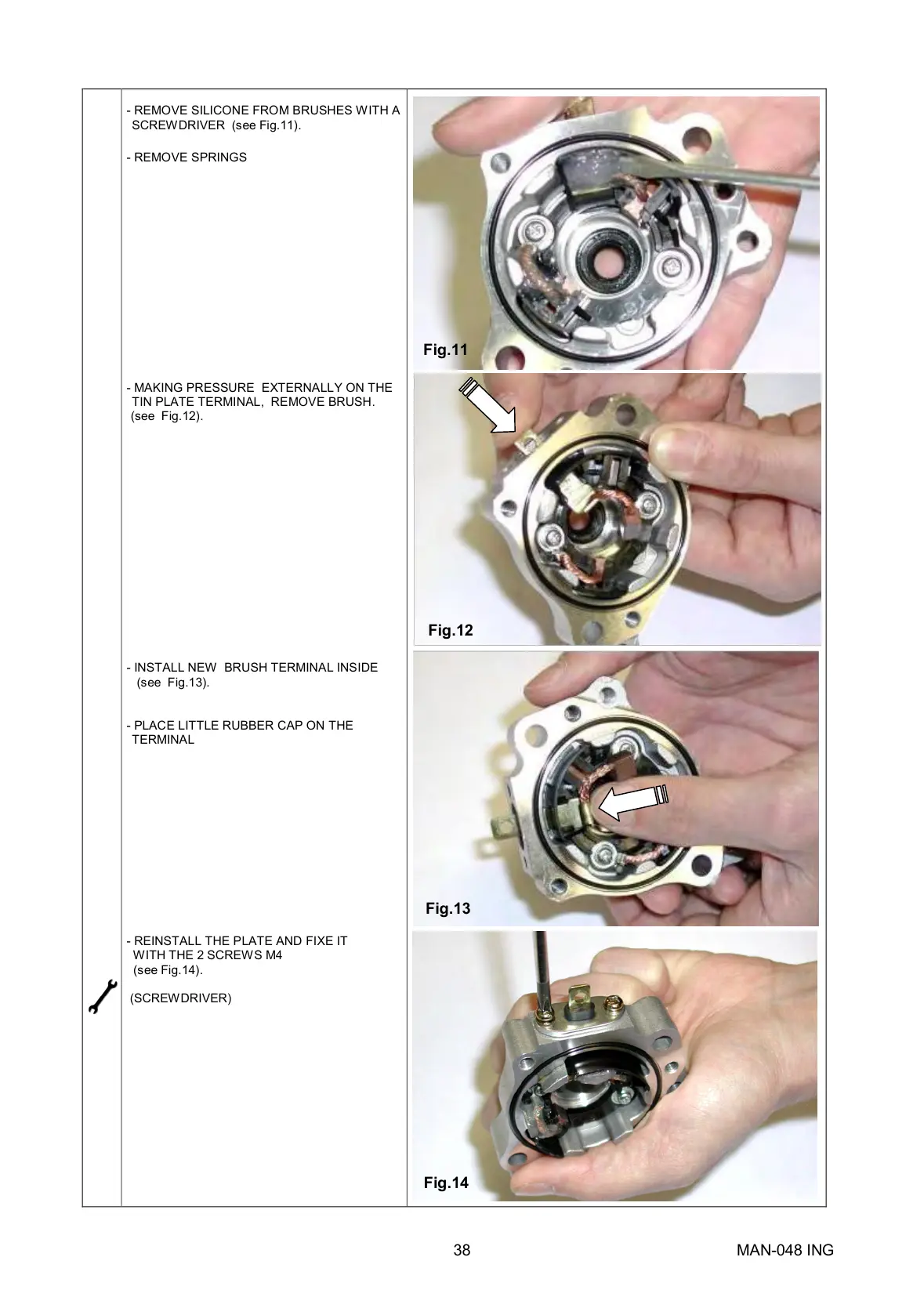

SCREWDRIVER (seeFig.11).
REMOVESPRINGS
MAKINGPRESSURE EXTERNALLYONTHE
TINPLATETERMINAL, REMOVEBRUSH.
(see Fig.12).
INSTALLNEW BRUSHTERMINALINSIDE
(seeFig.13).
PLACELITTLERUBBERCAPONTHE
TERMINAL
REINSTALLTHEPLATEANDFIXEIT
WITHTHE2SCREWSM4
(seeFig.14).
(SCREWDRIVER)
Fig.9
Fig.11
Fig.12
Fig.13
Fig.14
