4.
5.

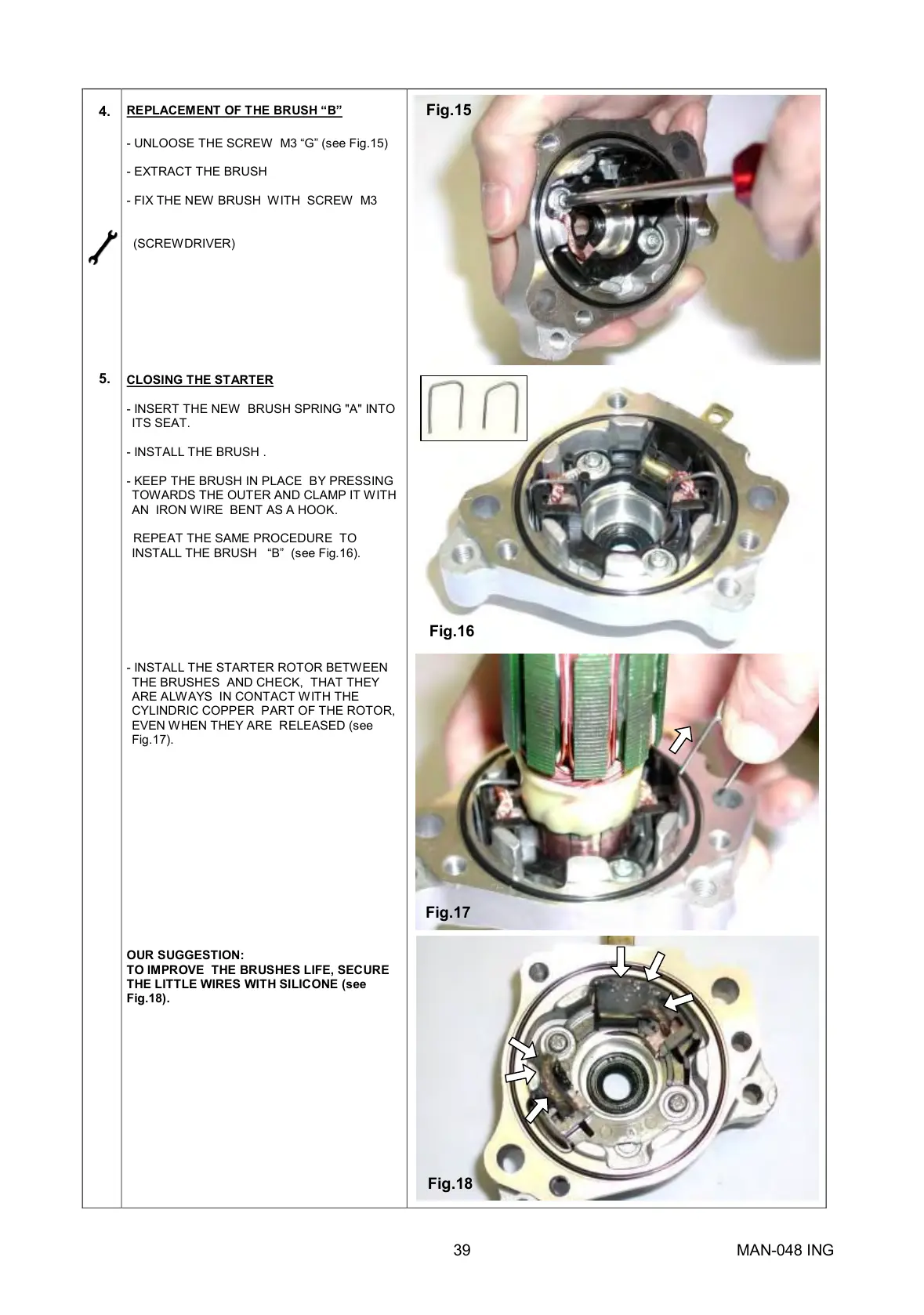

REPL ACEMENTOFTHEBRUSH“B”
UNLOOSETHESCREW M3“G”(seeFig.15)
EXTRACTTHEBRUSH
FIXTHENEWBRUSHWITH SCREW M3
(SCREWDRIVER)
CLOSINGTHESTARTER
INSERTTHENEW BRUSHSPRING"A"INTO
ITSSEAT.
INSTALLTHEBRUSH.
KEEPTHEBRUSHINPLACEBYPRESSING
TOWARDSTHEOUTERANDCLAMPITWITH
AN IRONWIRE BENTASAHOOK.
REPEATTHESAMEPROCEDURE TO
INSTALLTHEBRUSH “B”(seeFig.16).
INSTALLTHESTARTERROTORBETWEEN
THEBRUSHESANDCHECK,THATTHEY
AREALWAYS INCONTACTWITHTHE
CYLINDRICCOPPER PARTOFTHEROTOR,
EVENWHENTHEYARE RELEASED(see
Fig.17).
OURSUGGESTION:
TOIMPROVETHEBR USHESLIFE,SECURE
THELITTLEWIRESWITHSILICONE(see
Fig.18).
Fig.15
Fig.16
Fig.17
Fig.18
