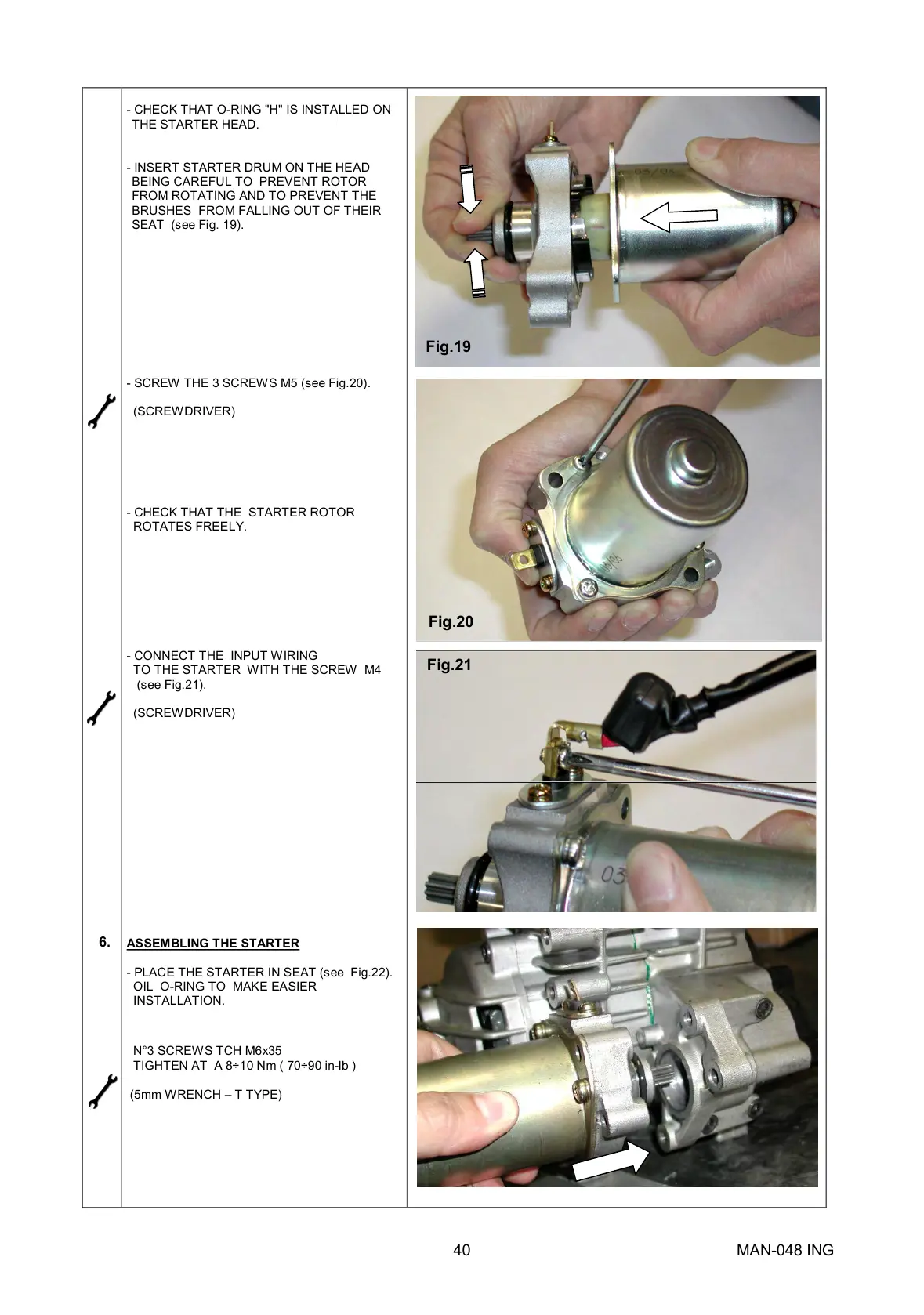

6.
CHECKTHATORING"H"ISINSTALLEDON
THESTARTERHEAD.
INSERTSTARTERDRUMONTHEHEAD
BEINGCAREFULTOPREVENTROTOR
FROMROTATINGANDTOPREVENTTHE
BRUSHES FROMFALLINGOUTOFTHEIR
SEAT (seeFig.19).
SCREWTHE3SCREWSM5(seeFig.20).
(SCREWDRIVER)
CHECKTHATTHE STARTERROTOR
ROTATESFREELY.
CONNECTTHEINPUTWIRING
TOTHESTARTER WITHTHESCREW M4
(seeFig.21).
(SCREWDRIVER)
ASSEMBLINGTHESTARTER
PLACETHESTARTERINSEAT(seeFig.22).
OIL ORINGTO MAKEEASIER
INSTALLATION.
N°3SCREWSTCHM6x35
TIGHTENAT A8÷10Nm(70÷90inlb)
(5mmWRENCH–TTYPE)
Fig.19
Fig.20
Fig.21
Fig.22
