9.2.4 “Device slot decoder“ module
The module „Device slot decoder“ is only available underneath a device node.
The "Device slot decoder" module is suited for acquiring large amounts of digital signals
of a device. The signals are sent as words from a controller to a device.
9.2.4.1 “General“ tab

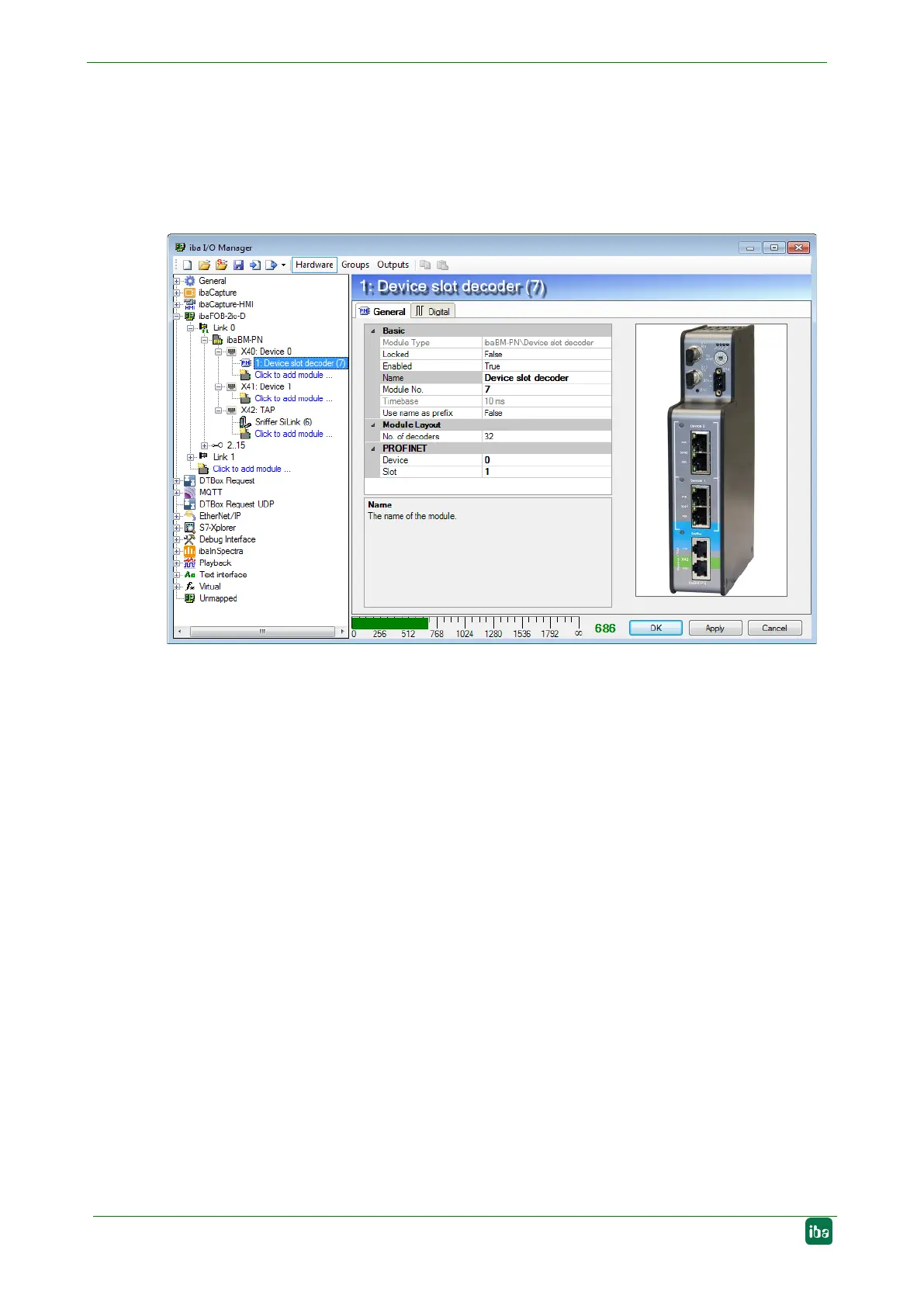

Figure 22: “Device slot decoder” module – “General“ tab
Basic settings
 Locked, Enabled, Name, Module No., Timebase, Use name as prefix
see chapter 9.2.1.1.
Module Layout
 No. of decoders
Defining the number of decoder modules (words) for this module.
PROFINET
 Device
Specify here which PROFINET device is to be used in the ibaBM-PN.
 Slot
Specify the slot of the PROFINET device that is used for the data of this module.
