IBA BM-PN - Bus Diagnostics Module

Manual
ibaBM-PN
56
Issue 1.9
9.2.9 “Bus diagnostics” module
Predefined diagnostic signals to the connected PROFINET network can be acquired as
signals in ibaPDA with the "Bus diagnostics" module.
For the meaning of the signals see chapter 9.2.5.
9.2.9.1 “General” tab

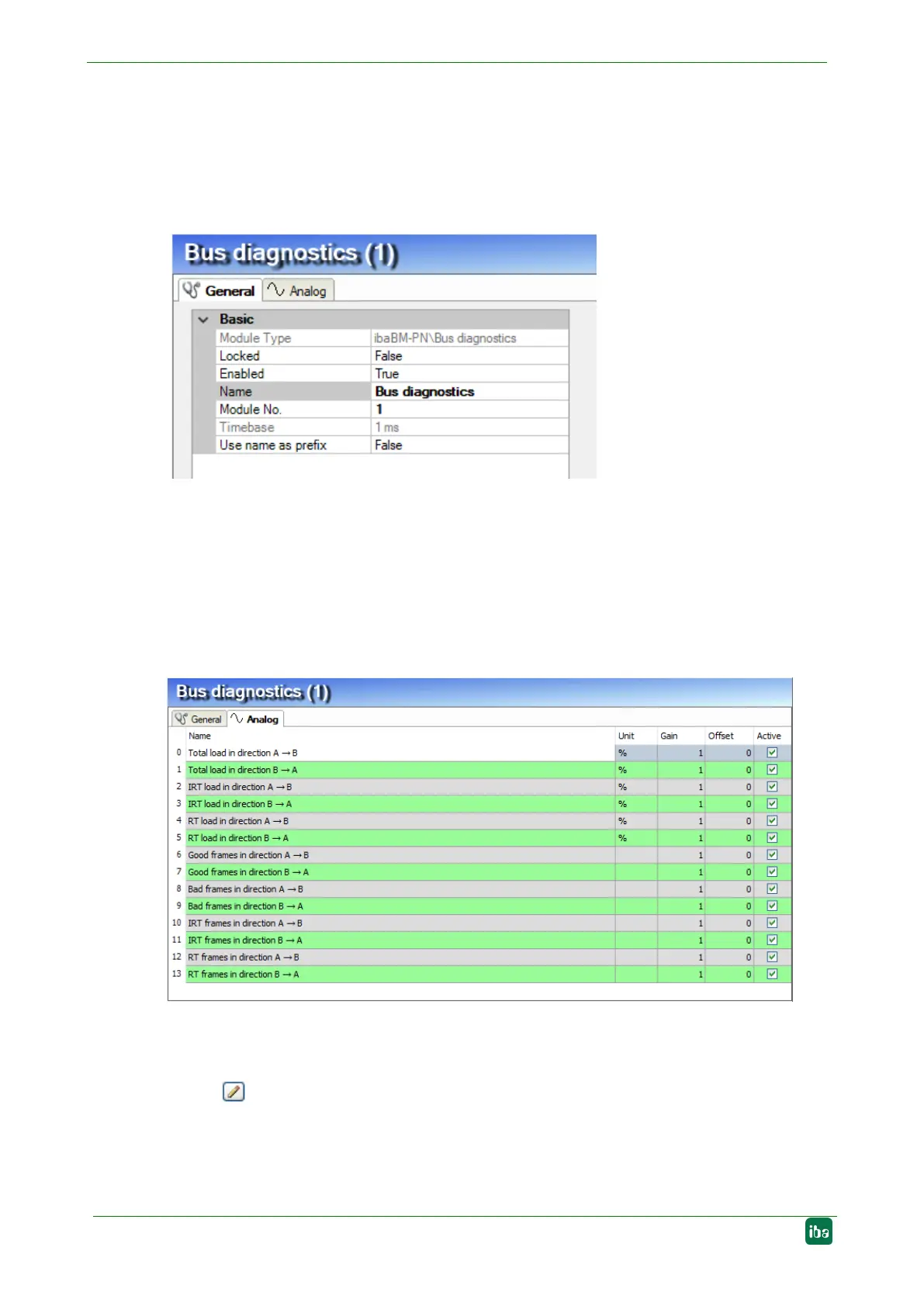

Figure 37: “Bus diagnostics” module, “General” tab
 Module type, Locked, Enabled, Name, Timebase, Use name as prefix
see chapter 9.2.1.1.
 Module No.
Logical module no. for clearly referencing of signals, e.g. in expressions in virtual
modules and ibaAnalyzer.
9.2.9.2 “Analog” tab
Figure 38: “Bus diagnostics” module, “Analog” tab
 Name
The names are predefined. You can enter additional two comments when clicking
the symbol in the signal name field.
 Unit
Physical unit of the signal.
