IBA BM-PN - Sniffer Module

ibaBM-PN
Manual
Issue 1.9
45
9.2.6 „Sniffer“ module
The sniffer module is only available underneath a TAP node.
9.2.6.1 „General“ tab

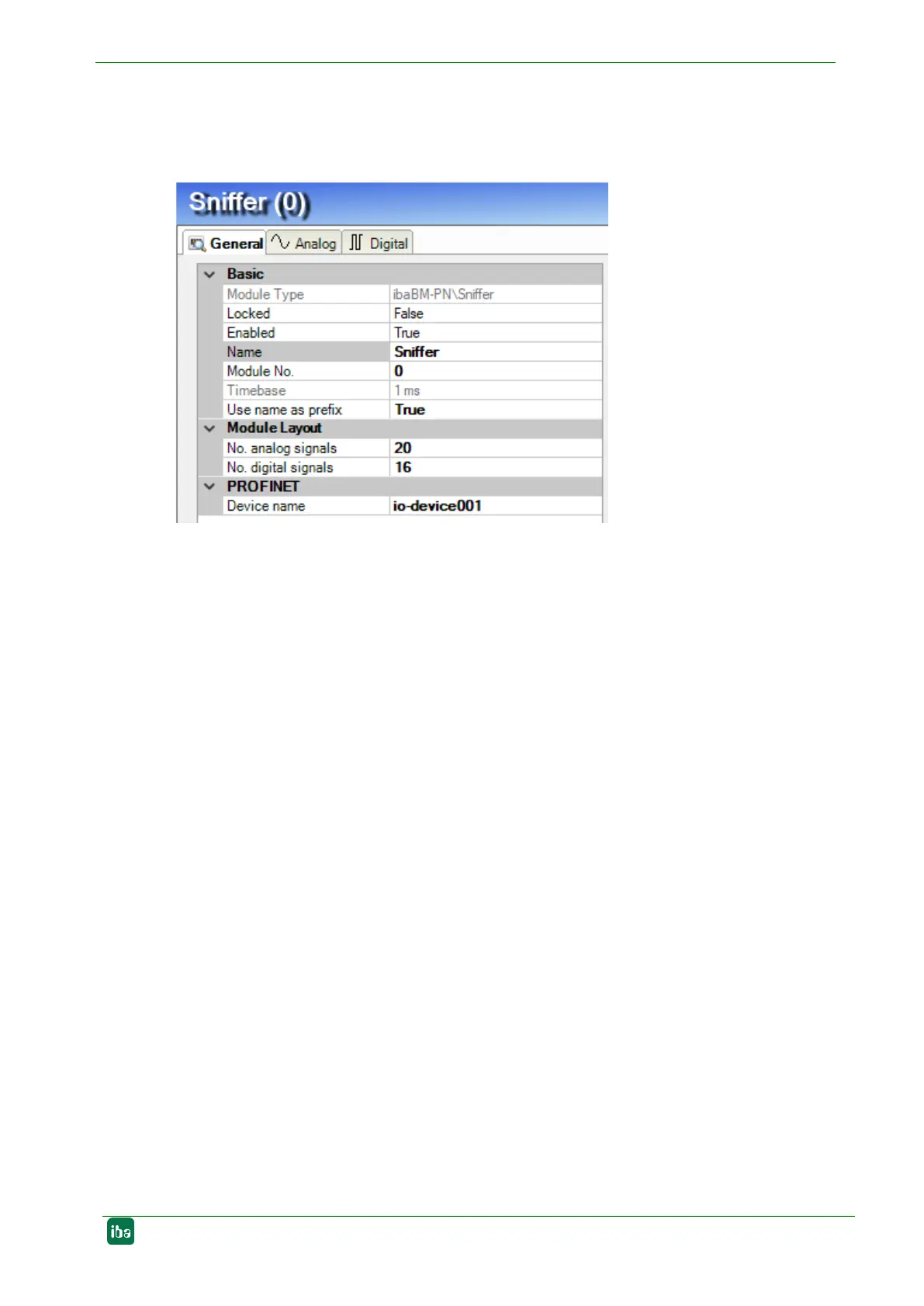

Figure 27: „Sniffer“ module – „General“ tab
Basic settings
 Module type, Locked, Enabled, Name, Timebase, Use name as prefix
see chapter 9.2.1.1.
 Module No.
Logical module no. for clearly referencing of signals, e.g. in expressions in virtual
modules and ibaAnalyzer
Module Layout
 No. analog signals
Defining the number of analog signals for this module (max. 1000)
 No. digital signals
Defining the number of digital signals for this module (max. 1000)
PROFINET
 Device name
Assignment of the module to a device, the selectable devices are listed under
"TAP".
