9.2.7 „Sniffer decoder“ module
The “Sniffer decoder” module is only available underneath a TAP node.
The "Sniffer decoder" module is suited for acquiring large amounts of digital signals in
the form of words on PROFINET (e.g. status words of drives).
9.2.7.1 „General“ tab

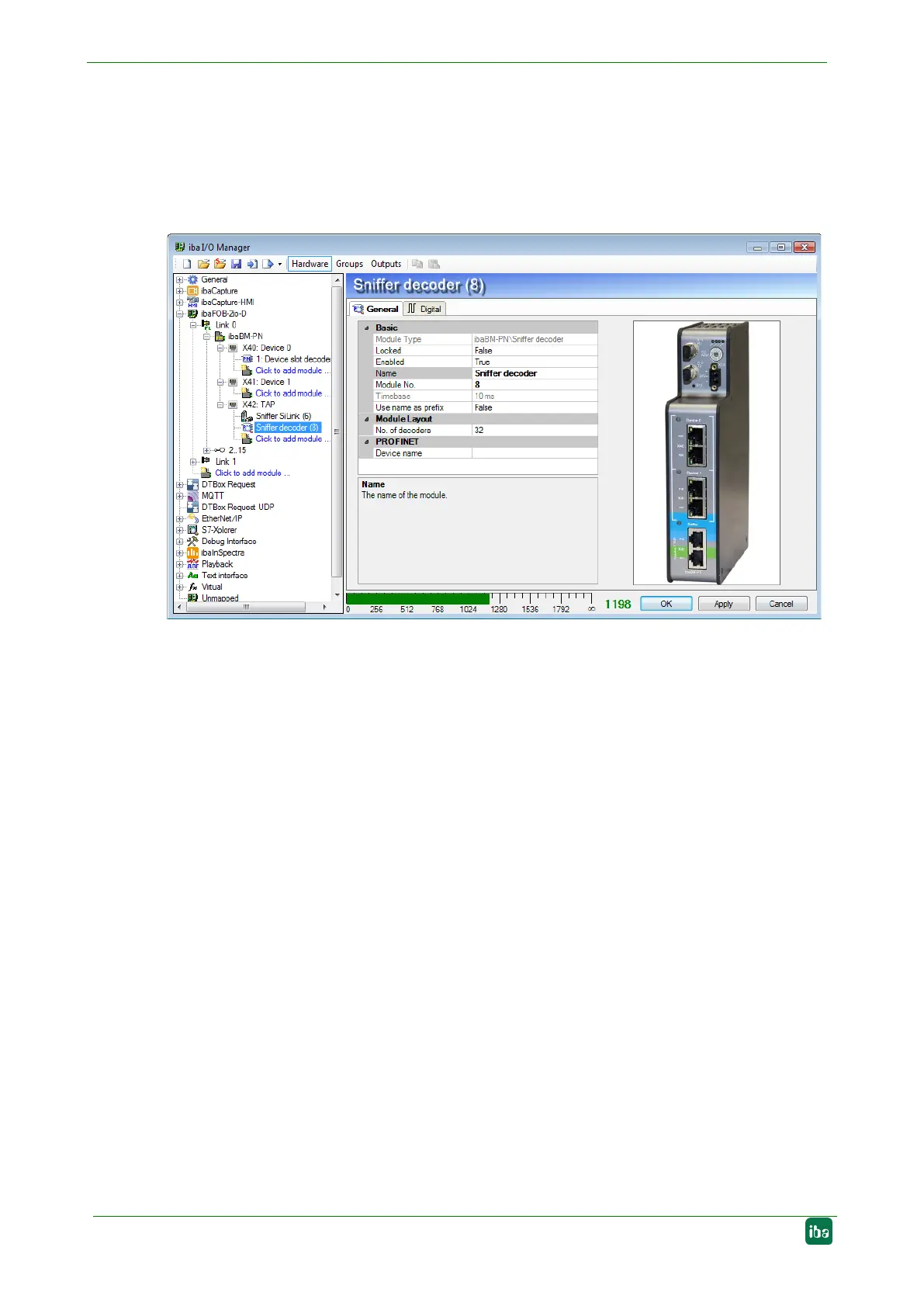

Fig. 30: "Sniffer decoder“ module – "General" tab
Basic settings
 Locked, Enabled, Name, Module No., Timebase, Use name as prefix
see chapter 9.2.1.1.
Module layout
 No. of decoders
Defining the number of decoder modules (words) for this module.
PROFINET
 Device name
Name of the PROFINET device from which you want to sniff data.
