SL 26-260 G3, SL 40-399 G3 MODULATING GAS BOILERS
NOTE
It is the responsibility of
the installing and/or service
Contractor to advise and instruct
the end User in how to perform
the Trap cleaning procedure,
and to advise that the Trap
be checked at least every two
months and cleaned as required.

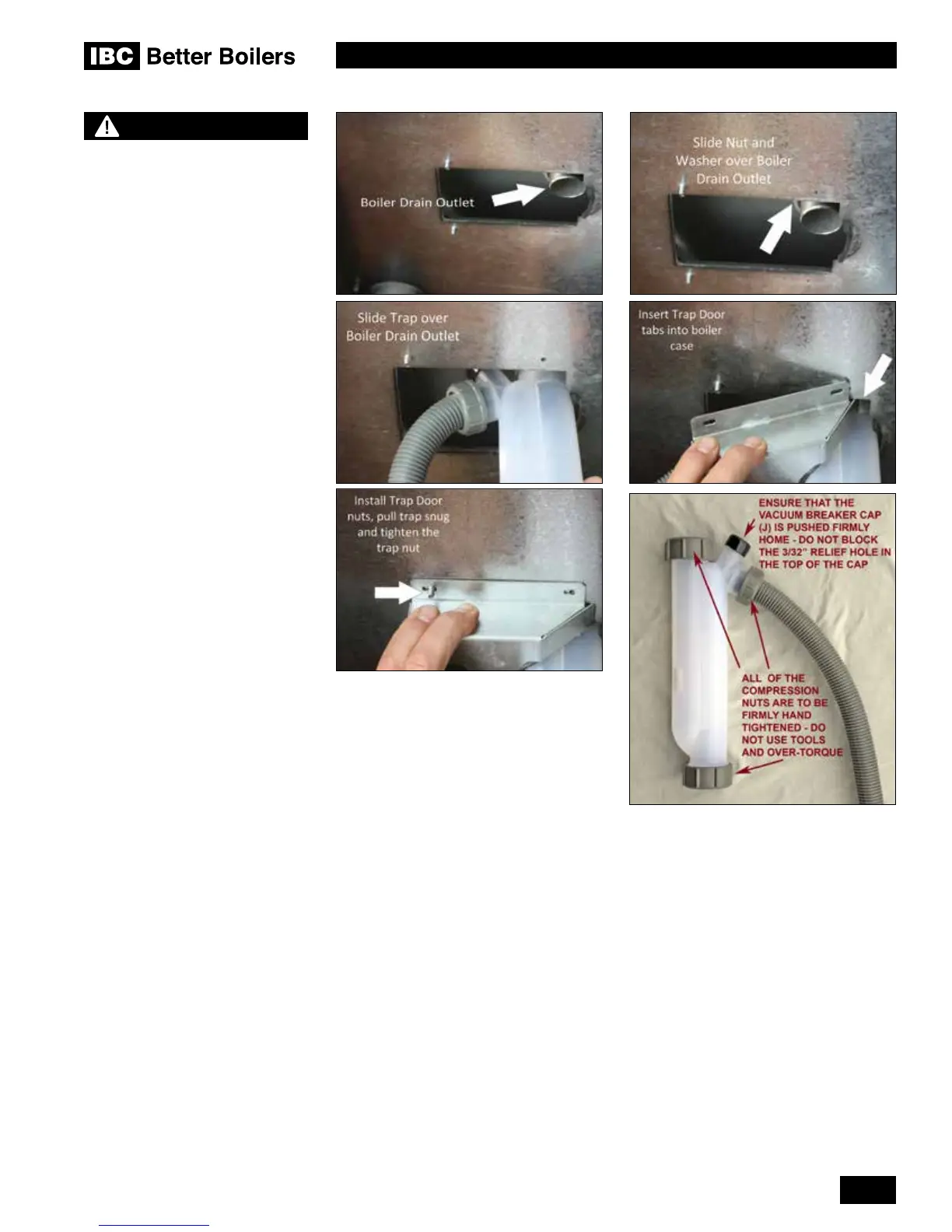

1.5.3 Condensate Trap Assembly - cleaning procedure
1. Turn off the power to the boiler and allow it to cool down.
2. Remove the trap from the boiler (reverse the installation procedure above).
3. Remove the Trap Cleanout Assembly (H) from the Trap Body and clean and ush the
debris out.
4. Re-assemble the trap components, re-ll the trap, and replace on the boiler as
described in the installation instructions above.
1.5.4 Further installation details
• The condensate drain must be piped to within 1” of a drain or connected to a
condensate pump.
• Drainage line must slope down to the drain at a pitch of 1/4” per foot so condensate
runs towards the drain.
• Condensate traps should be checked every two months, and cleaned and relled as
necessary.
