Chapter 3: Using the OSCAR Interface 33

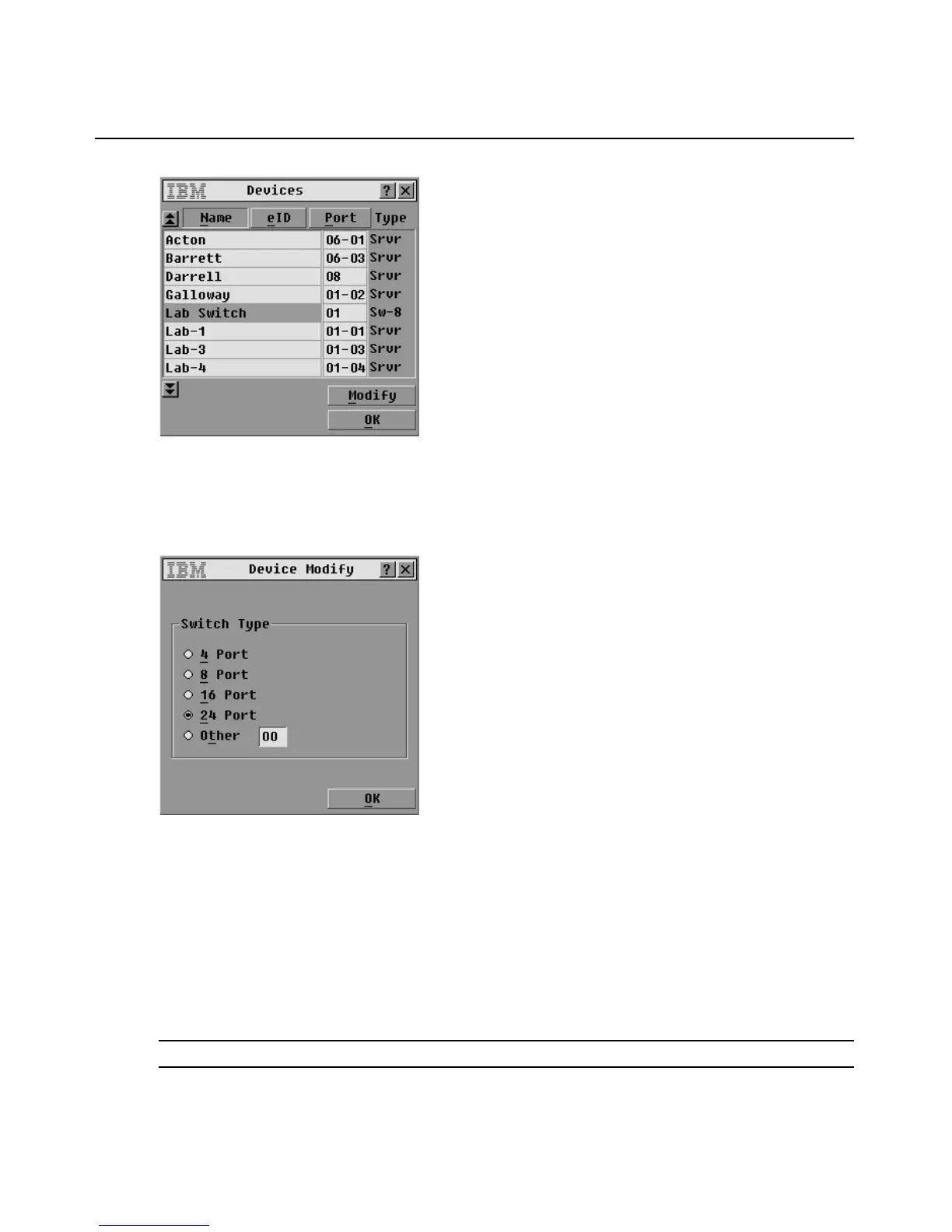

Figure 3.7: Devices window
3. Select the port number.
4. Click Modify. The Device Modify window opens.
Figure 3.8: Device modify window
5. Choose the number of ports supported by the tiered switch and click OK. If the number of
ports on the tiered switch is not listed, click Other and type a port number between 4 and 24.
6. Click OK.
7. Repeat steps 3-5 for each tiered switch.
8. Click OK in the Devices window to save the changes.
-or-
Click X or press Esc
to exit the window without saving changes.
NOTE: Changes made in the Device Modify window are not saved until you click OK in the Devices window.
