22 IBM : Hardware Maintenance Manual
Note: The connectors on the rear of the computer have color-coded icons to help you
to determine where to connect the cables on your computer.

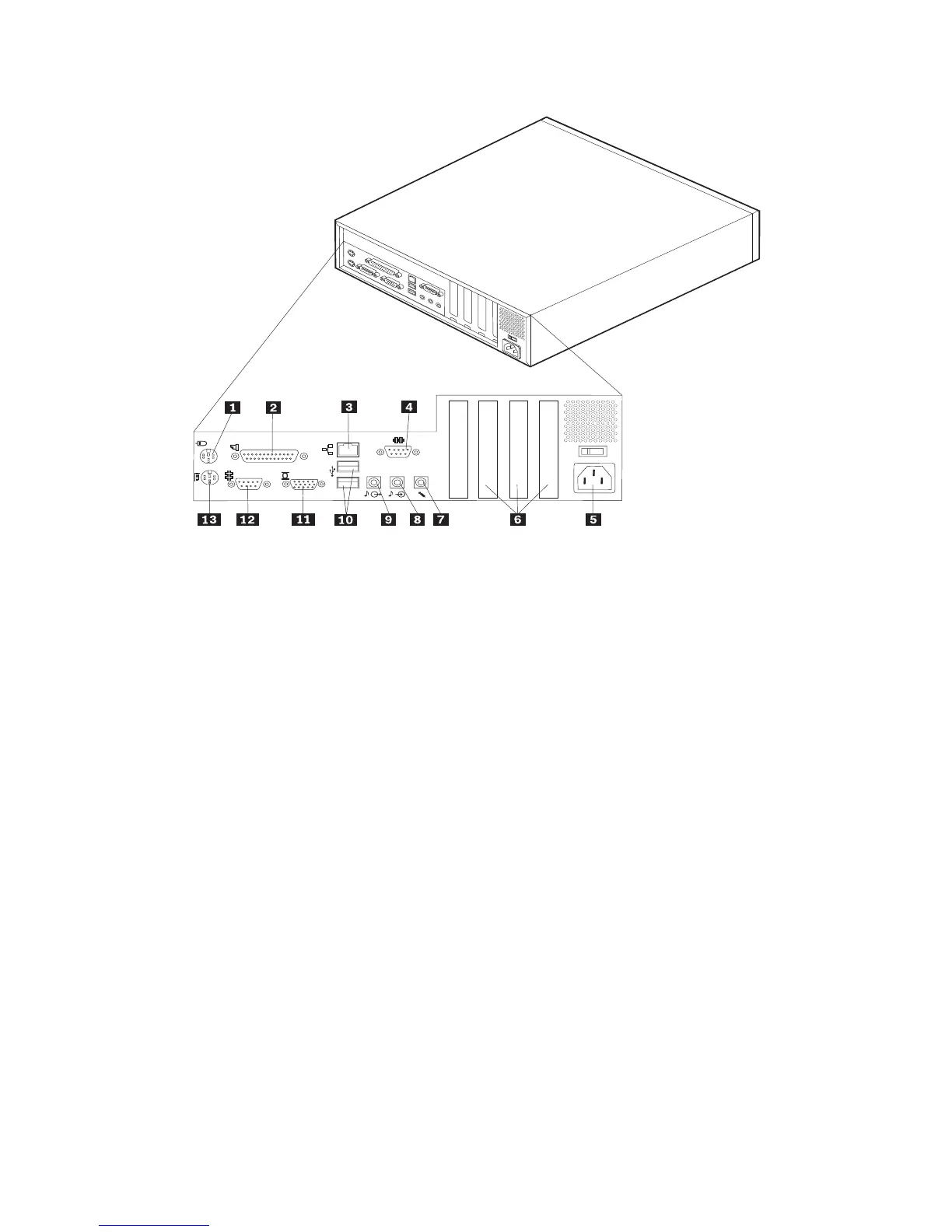

The following illustration shows the location of the connectors on the rear of the
desktop model computer.
1Mouse connector 8 Audio line in connector
2Parallel connector 9 Audio line out connector
3Ethernet connector 10USB connectors
4Serial connector 11Monitor connector
5Power connector 12Serial connector
6PCI slots 13Keyboard connector
7Microphone connector
