Chapter 4. Installing Options 31
The following table describes some of the drives that you can install in each bay and
their height requirements.
Notes:
1. Drives that are greater than 41.3 mm (1.6 in.) high cannot be installed.
2. Install removable media (tape or CD) drives in the accessible bay: bay 1 or 2.
Installing a drive
To install a CD drive or DVD drive in bay 2, follow these steps.
1. Remove the cover (see “Removing the cover - small desktop model” on page 26).
2. If you are installing a drive with removable media, insert a flat–blade screwdriver
into one of the slots on the static shield in the drive bay into which you installed
the drive and gently pry the static shield loose from the drive bay.
3. Make sure the drive is set correctly as the master device. Refer to the
documentation that comes with your CD drive or DVD drive for master/slave
jumper information.
4. Lift the latch and remove the drive mounting tray.
5. Install the drive into the bay. Align the screw holes and insert the four screws.
6. Slide the drive cage halfway into the mounting tray.

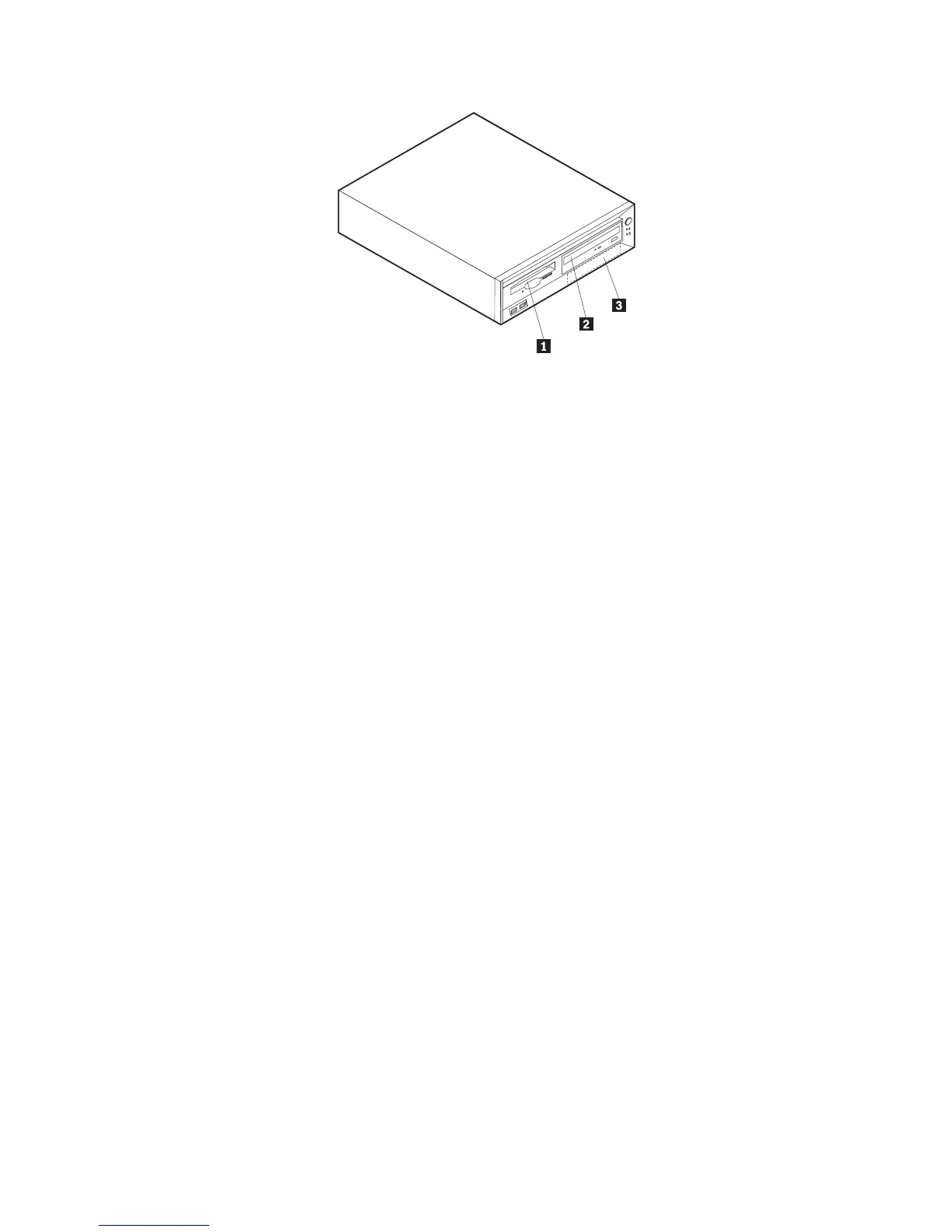

1Bay 1 - Max Height: 25.4 mm (1.0 in.) 3.5-inch diskette drive (preinstalled in some
models)
2Bay 2 - Max Height: 41.3 mm (1.6 in.) CD-ROM drive (standard in some models)
3Bay 3 - Max Height: 12.7 mm (0.5 in.) 3.5-inch hard disk drive (preinstalled)
