32 IBM : Hardware Maintenance Manual

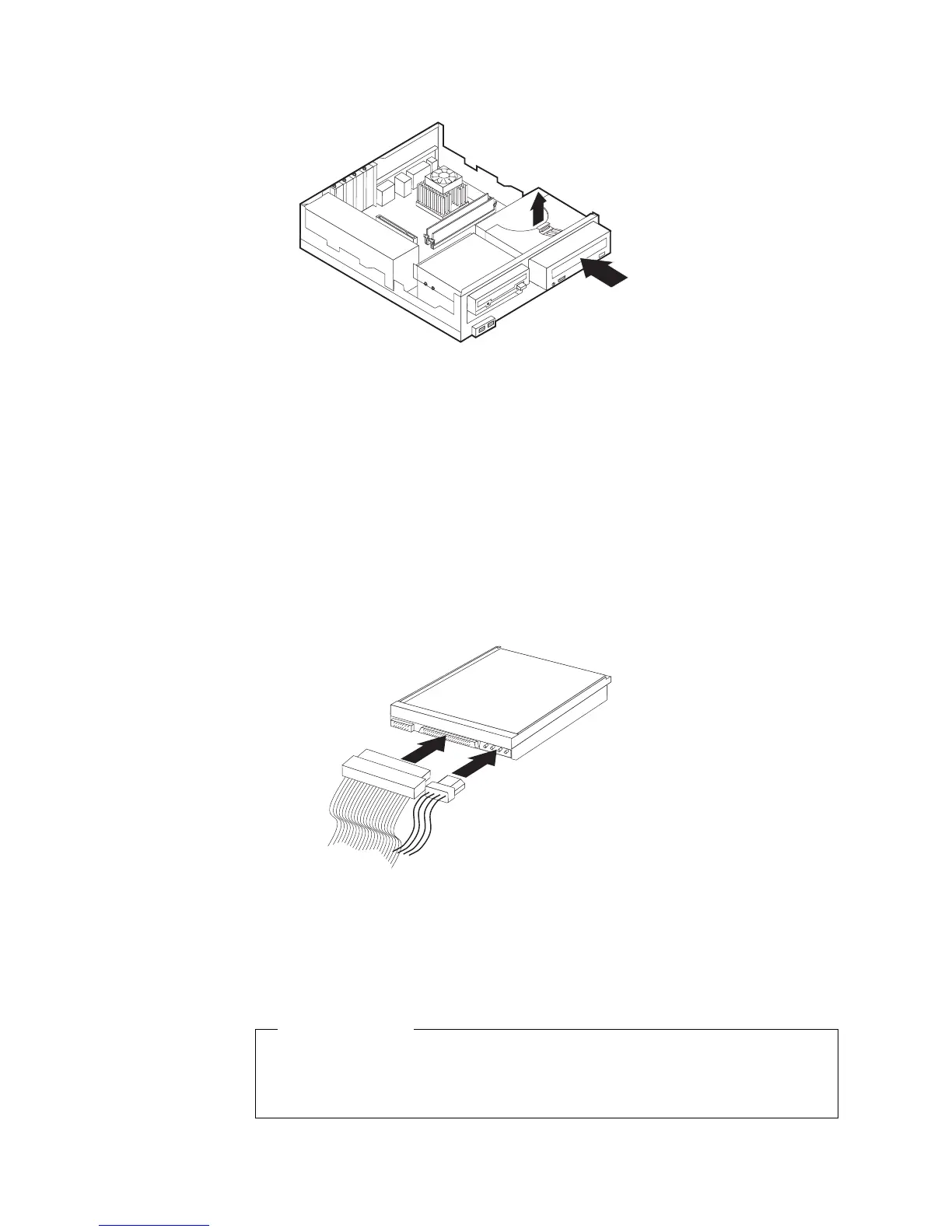

7. Each integrated drive electronics (IDE) drive requires two cables; a four-wire
power cable that connects to the power supply, and a signal cable that connects to
the system board. You might also have an audio cable to connect.
To connect a CD drive or DVD drive to your computer, follow these steps.
a. Locate the signal cable that came with your computer or with the new drive.
b. Locate the secondary IDE connector and the CD-ROM audio connector on the
system board. See “Identifying parts on the system board - small desktop
model” on page 27.
c. Connect one end of the signal cable to the secondary IDE connector on the
system board and the other to the CD drive or DVD drive.
d. Your computer has extra power connectors for connecting additional drives.
Connect the power cable to the drive.
8. If you have a CD-ROM drive audio cable, connect it to the drive and the system
board.
9. Slide the drive cage in and engage the latch.
10. If the drive you installed is a removable-media drive, remove the bay panel from
the front bezel.
• To work with another option, go to the appropriate section.
• To complete the installation, go to “Replacing the cover and connecting the
cables - small desktop model” on page 33.
