46 IBM : Hardware Maintenance Manual
Locating components - microtower model

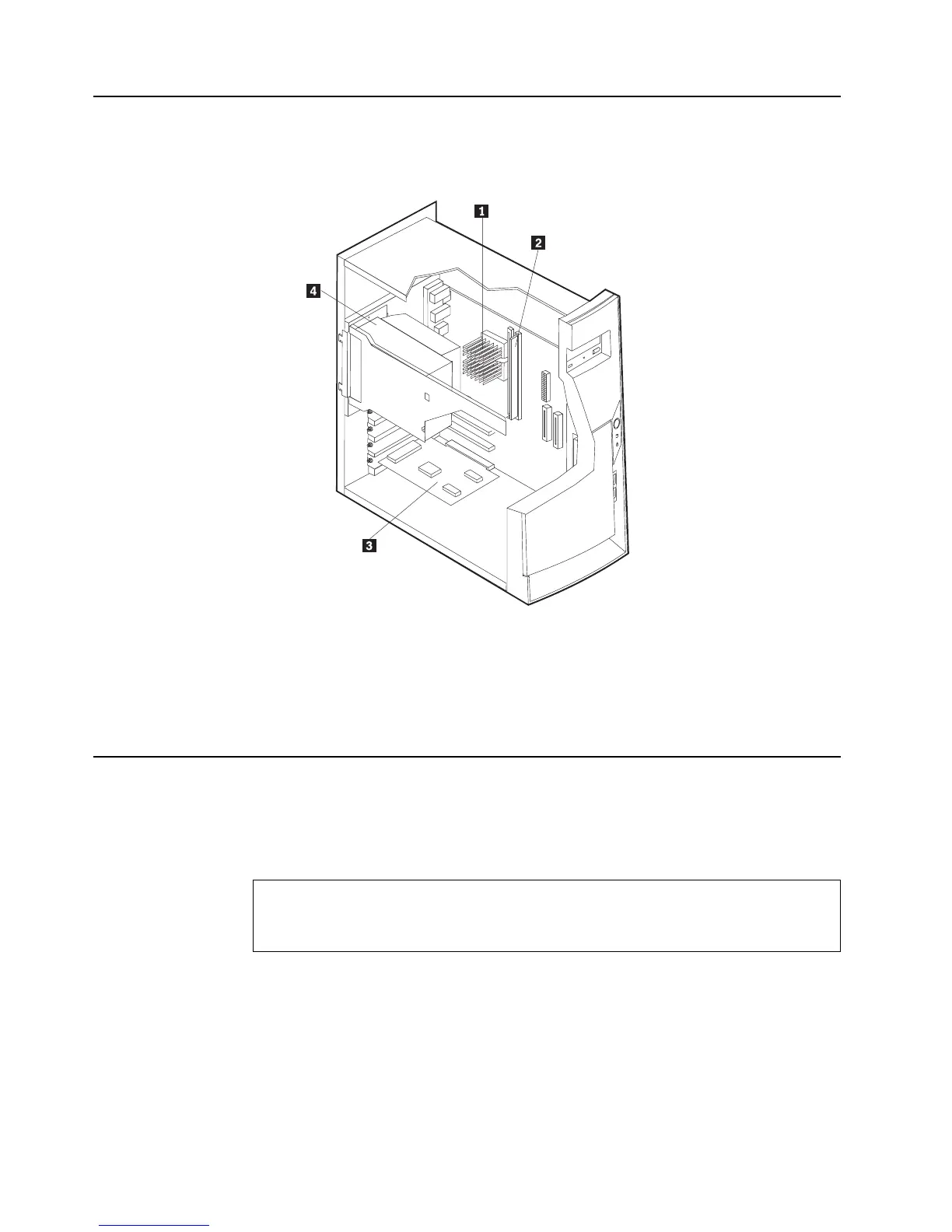

The following illustration will help you locate the various components in your
computer.
Moving the power supply - microtower model
To perform some operations inside the computer, you might need to move the power
supply to access parts of the system board that are difficult to see or hard to reach. Use
the following procedure to provide easier access to the system board.
DANGER
1. Remove the thumbscrew securing the power supply to the rear of the chassis.
2. Push the metal tab and slide the power supply unit upward.
1Microprocessor and heat sink 3PCI adapter
2DIMM 4Power supply
Do not detach the power supply bracket from the power supply or remove
any of the power supply screws.
