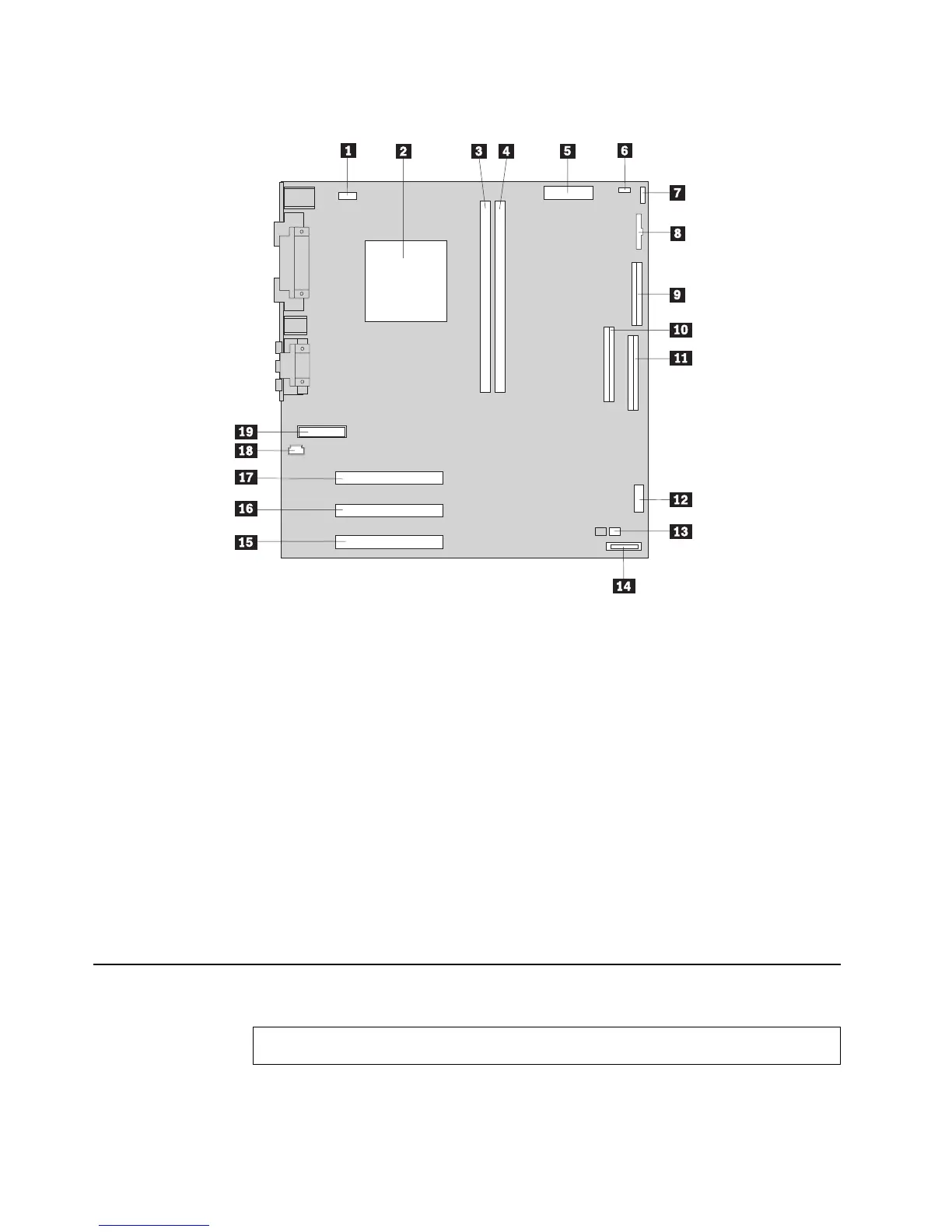

See the following illustration for the location of parts on the system board.
Replacing a System Board - Small Desktop Model
򍦠1򐂰 Fan connector 򍦠11򐂰 Primary IDE connector
򍦠2򐂰 Microprocessor 򍦠12򐂰 Front USB connector
򍦠3򐂰 DIMM 1 򍦠13򐂰 Clear CMOS/BIOS recovery jumper
򍦠4򐂰 DIMM 2 򍦠14򐂰 Battery
򍦠5򐂰 Power connector 򍦠15򐂰 PCI slot
򍦠6򐂰 Power connector 򍦠16򐂰 PCI slot
򍦠7򐂰 Hard disk LED connector 򍦠17򐂰 PCI slot
򍦠8򐂰 Power LED connector 򍦠18򐂰 CD-ROM audio connector
򍦠9򐂰 Diskette connector 򍦠19򐂰 Front panel connector
򍦠10򐂰Secondary IDE connector
Important: Before replacing a system board, back up Asset information by using the “Asset
EEPROM backup” on page 16.
